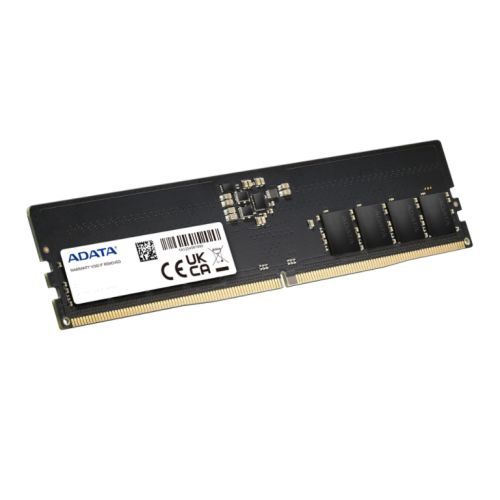

ADATA Premier, 16GB, DDR5, 4800MHz (PC5-38400), CL40, 1.1V, ECC, DIMM Memory

DDR5-4800 U-DIMM Memory Module

Key Features

• Higher Frequencies
• Built-in Power Management IC
• Higher Capacities
• On-Die Error Correcting Code

Higher Frequencies

The DDR5-4800 U-DIMM delivers blazing frequencies of up to 4800 MT/s, a major leap from the max frequency of DDR4 modules (3200 MT/s).

More Energy-Efficient

• Operates on just 1.1V, making it 8% more power-efficient than DDR4.
• Features a built-in Power Management IC (PMIC) for enhanced power supply stability.

Capacity Doubled

The memory module's architecture allows for:

• More memory bank groups and banks.
• Doubling the capacity compared to DDR4, thanks to the ability to pack more bank groups into the same area.

Improved Stability

• Equipped with error correcting code (ECC), which can correct errors automatically in real-time.
• Reduces the burden of CPU calculations while providing increased stability and reliability for enterprise-class computers.

QuikTips: DDR5 vs DDR4

Appearance

• DDR5 U-DIMM modules have the same dimensions and pin count as DDR4.
• The fool-proof notch position is different.
• DDR5 integrates I/O resistors with CMD/ADD resistors, resulting in a cleaner appearance.
• A PMIC is visible in the center.

Chip Architecture

• DDR5 modules offer 2x more capacity than DDR4 by packing in more banks and bank groups.
• Burst Length and Prefetch are also doubled, increasing data writes and the amount of data taken upfront.
• Features error correcting code (ECC) technology for data integrity.

Performance

• Bandwidth and frequency are significantly higher.
• ADATA DDR5 memory modules deliver frequencies of up to 4800MT/s and feature a bandwidth of 38.4GB/s, which is 50% higher than DDR4-3200.
• Maximum frequency is increased 1.63 times compared to DDR4.

Specifications

• Series: ADATA Premier
• DDR Type: DDR5
• Size: 1 x 16GB
• Speed: 4800 MHz
• Compliance: PC5-38400
• Pins: 288-pin
• CAS Latency: CL40
• Data Integrity Check: On-die ECC
• Voltage: 1.1V
• Heatsink: No
• LED Lighting: None
• Package Type: Retail
• Package Weight: 0.0280 kg

This DDR5 memory module is a leap forward in performance, efficiency, and capacity, making it an excellent choice for both enterprise and personal use.
