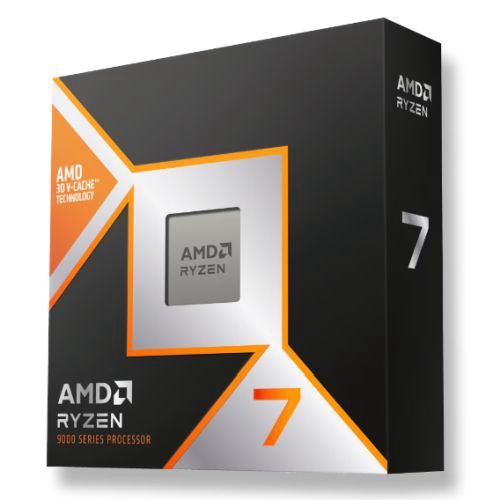

AMD Ryzen 7 9800X3D CPU, AM5, 4.7GHz (5.2 Turbo), 8-Core, 120W, 104MB Cache, 4nm, 9th Gen, Radeon Graphics, NO HEATSINK/FAN

Harness the ultimate gaming edge with AMD Ryzen™ 7 9800X3D Processor

Enjoy faster gaming with 2nd gen AMD 3D V-Cache™ technology for low latency.

Key Features:

• Market Segment: Enthusiast Desktop
• Former Codename: Granite Ridge AM5
• Architecture: Zen 5

Performance Specifications:

• # of CPU Cores: 8
• Multithreading (SMT): Yes
• # of Threads: 16
• Max Boost Clock: Up to 5.2 GHz
• Base Clock: 4.7 GHz

Cache Details:

• L1 Cache: 640 KB
• L2 Cache: 8 MB
• L3 Cache: 96 MB

Power and Technology:

• Default TDP: 120W
• Processor Technology for CPU Cores: TSMC 4nm FinFET
• Processor Technology for I/O Die: TSMC 6nm FinFET
• Package Die Count: 2

Overclocking and Optimization:

• Unlocked for Overclocking: Yes
• AMD EXPO™ Memory Overclocking Technology: Yes
• Precision Boost Overdrive: Yes
• Curve Optimizer Voltage Offsets: Yes
• AMD Ryzen™ Master Support: Yes

Compatibility:

• Supporting Chipsets:
  A620, X670E, X670, B650E, B650, X870E, X870, B840, B850
• CPU Boost Technology: Precision Boost 2
• Instruction Set: x86-64
• Supported Extensions:
  AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64

Thermal and Cooling:

• Thermal Solution (PIB): Not Included
• Recommended Cooler: Liquid cooler recommended for optimal performance
• Max Operating Temperature (Tjmax): 95°C

Graphics:

• AMD Radeon Graphics: Yes
• Graphics Core Count: 2
• Graphics Frequency: 2200 MHz
• USB Type-C DisplayPort Alternate Mode support: Yes

Memory Specifications:

• Memory Channels: 2
• Max Memory: 192GB
• System Memory Subtype: UDIMM
• Max Memory Speed:
  • 2x1R - DDR5-5600
  • 2x2R - DDR5-5600
  • 4x1R - DDR5-3600
  • 4x2R - DDR5-3600

PCI Express:

• Max PCI Express Lanes: 28/24 (Total/Usable)

Special Features:

• AMD EXPO Technology
• AMD Ryzen Technologies
• 2nd gen AMD 3D V-Cache technology

Packaging:

• Package Type: Retail
• Package Weight: 0.0950 kg

OS Support:

• Windows:
  Windows 11 - 64-Bit Edition, Windows 10 - 64-Bit Edition
• Linux:
  RHEL x86 64-Bit, Ubuntu x86 64-Bit

Socket and Type:

• Socket: AM5
• Type: AMD Ryzen 7

With advanced Zen 5 architecture, Precision Boost 2 technology, and AMD EXPO™ Memory Overclocking, the AMD Ryzen™ 7 9800X3D is built for enthusiasts seeking peak performance in gaming and multitasking. Liquid cooling is recommended to ensure optimal performance and temperature management.
