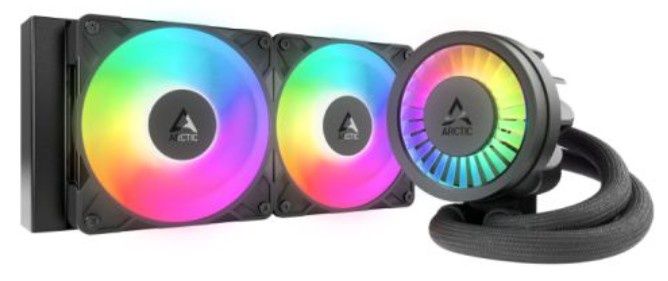

ARCTIC Liquid Freezer III Pro A-RGB 240mm Liquid CPU Cooler, P12 Pro PWM Fans & PWM Controlled Pump, Black

Key Features of the Liquid Freezer III Pro 240 A-RGB

Technical Specifications:

• TIM: MX-6 (0.8 g)
• Operating Ambient Temperature: 0 - 40 °C
• Pump Speed: 800–2800 RPM (PWM controlled)
• Current | Voltage: 0.35 A | 12 V DC
• Cold Plate Material: Copper, Micro Skived Fins
• Tube Length: 450 mm
• Tube Diameter: Outer: 12.4 mm / Inner: 6.0 mm
• Weight: 2005 g

Advanced Cooling Features:

• Integrated VRM Fan:
  PWM-controlled fan lowers the voltage regulator temperature, ensuring stable performance.

• Offset Mounting for Intel and AMD:
  Shifts the cold plate to the CPU hotspot for more efficient heat transfer.

• Intel Contact Frame:
  Optimized contact pressure distribution for longer CPU lifespan and improved heat dissipation.

• Integrated Cable Management:
  Fan cables integrated into the sleeving simplify installation and minimize cable clutter.

The New P12 Pro Fans:

• Performance Highlights:
  Quieter and more powerful at low speeds, with greater performance reserves under load, delivering maximum cooling without compromise.

• Specifications:

  • Speed: 600 - 3000 RPM
  • Fluid Dynamic Bearing
  • Static Pressure: 6.9 mmH2O
  • Airflow: 77 cfm

Premium-Class Radiator:

• Enhanced Design:
  The 38 mm radiator improves heat dissipation and holds more liquid than conventional 27 mm radiators. This reduces heat buildup and ensures efficient handling of temperature spikes.

Premium Tubing:

• Durability:
  Reinforced EPDM tubing with braided sheathing for increased durability.

Installation Made Easy:

• Pre-installed, pre-wired fans for straightforward mounting.
• An animated online manual for step-by-step guidance.

Includes MX-6 Thermal Paste:

• Application:
  Apply in a cross pattern—the water pump’s cold plate distributes the paste evenly.

Two Control Options:

• Flexibility:
  Control the pump, VRM fan, and radiator fans separately or synchronize them via a single PWM signal with the all-in-one cable.

Compatibility Notes:

• Case Clearance:
  Requires at least 63 mm of clearance for installation.

• Motherboard Compatibility:
  Some motherboards may be incompatible due to oversized SSD coolers in the M.2_1 slot. Arctic provides a compatible M.2 cooler free of charge for affected motherboards.

Additional Product Details:

• Type: CPU Liquid Cooler
• Compatibility:
  • Intel: 1700, 1851
  • AMD: AM5, AM4
• Radiator Size: 240 mm
• Fan Connector(s): 4-pin
• Fan Controller: PWM
• Fan Bearing: Fluid Dynamic Bearing
• Fan Dimensions: 2 x 120mm P12 Pro A-RGB Fans
• LED Lighting:
  • 2 x P12 Pro A-RGB Radiator Fans
  • VRM Module: 12 x A-RGB Gen2 LEDs
  • Connector: 3-Pin A-RGB Plug + 3-Pin Socket
• Material:
  • Cold Plate: Copper, Micro Skived Fins
  • Radiator: Aluminium
  • Tubing: Reinforced EPDM with braided sheathing
• Dimensions:
  • Radiator: 277 (L) x 120 (W) x 38 (H) mm
  • Tube Length: 450 mm
  • Tube Diameter: Outer: 12.4 mm / Inner: 6.0 mm
• Weight: 1665 g

Power Specifications:

• Pump Current/Voltage: 0.35A / 12 V DC
• VRM Fan Current/Voltage: 0.05A / 12 V DC
• Radiator Fan Current/Voltage: 0.33A / 12 V DC
• RGB Current/Voltage: 0.40A / 5 V DC

Package Contents:

• Liquid Freezer III Pro Cooler
• MX-6 Thermal Paste (0.8 g)

Package Type: Retail
Package Weight: 2.0650 kg
