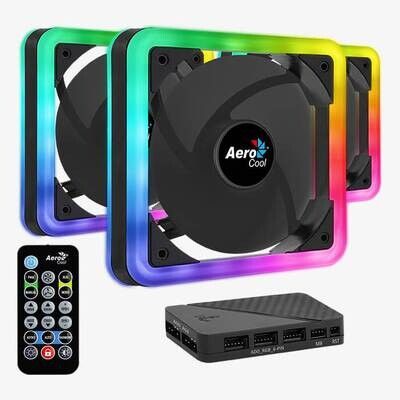

Aerocool Edge 14 Pro 3 x Fan Set - Black

Key Features

• 14CM ARGB FANS x 3
• H66F RGB Control Hub x 1
• Remote Control x 1

Product Highlights

• 140mm fan with a 6-Pin connector featuring a stylish RGB LED Dual Lighting design.
• Access 16.8 million colors using compatible Addressable RGB motherboards, including ASUS Aura Sync, MSI Mystic Light Sync, and Gigabyte RGB Fusion.
• Comes equipped with:
  • 3 x Edge 14 Addressable RGB fans
  • 1 x H66F RGB Control Hub
  • 1 x Remote Control

RGB LED Dual Lighting

• Adds extra flair to your rig while enhancing cooling performance.
• Dual Lighting Design ensures a unique cooling experience.

Compatibility & Control

Addressable RGB Compatible

Take full control of your Edge 14 Addressable RGB fans using any of the following methods:

1. Addressable RGB Motherboard
2. LED Control Button
3. RGB Remote Control

H66F RGB Control Hub

• A 6-port hub with PWM control functions.
• Connect up to:
  • 6 x 6-Pin Addressable RGB fans
  • 2 Addressable RGB accessories with a 5V ARGB connector.
• Compatible with Addressable RGB motherboards, including ASUS Aura Sync, MSI Mystic Light Sync, and Gigabyte RGB Fusion.

Performance Features

• PWM Control Functions

  • Optimizes fan speed for maximum cooling efficiency and minimal noise.
  • Ensure your motherboard’s 4-Pin fan header is PWM compatible:
    • PWM based – Compatible
    • Voltage based – Not compatible
  • Refer to the PWM Compatibility Guide for more details.

• Curved Fan Blades

  • Effectively direct airflow, increasing air pressure and reducing air resistance for maximum cooling performance.

• Anti-Vibration Pads

  • Absorb and dampen vibrations caused by fan rotation, ensuring smooth operation.

Additional Inclusions

• Addressable RGB Receptor Cable

  • Connects the hub with compatible Addressable RGB motherboards.
  • Includes connectors for:
    • ARGB MB (ASUS, MSI, etc.)
    • ARGB MB (Gigabyte RGB Fusion)
    • 4-Pin Hub
    • PWM 4-Pin

• Power Cable

  • Includes:
    • SATA Power Connector
    • 4-Pin Hub Power Connector

Design and Compatibility

• Designed for 12CM Fan Mounts

  • Requires space for a 14cm fan.
  • Note: Does not fit onto radiators.

• 6-Pin Connector

  • Connects to the H66F RGB Control Hub.
  • Compatible with Tor, Tor Pro, and Klaw cases.

Specifications

Edge 14 Fan

• Dimensions: 140mm x 140mm x 25mm
• Fan Speed: 800 rpm
• Connector Type: 6-Pin
• Starting Voltage: 6 V
• Rated Voltage: 12 V
• Rated Current: 0.42 A
• Power Consumption: 5.04 W
• Air Pressure: 1.35 mmH2O
• Air Flow: 35.4 CFM
• Noise Level: 19.7 dBA
• Bearing Type: Hydraulic Bearing
• MTBF: 60,000 hours

H66F RGB Control Hub & Remote Control

• Type: RF Wireless
• Connector: SATA
• Rated Voltage: 12 V/5V
• Rated Current: 3 A
• Frequency: 433.92 MHz
• Receive Range: 10m
• Fan Ports: 6
• 5V ARGB Connector Ports: 2

Accessories Included

• Velcro Strap x 1
• Screws x 12
• Black Zip Ties x 2
• ARGB Receptor Cable x 1

EAN Code: 4718009158115
