Aerocool Mirage 12 Pro ARGB Computer Fan Kit (3x12cm)

Mirage 12 ARGB Pro

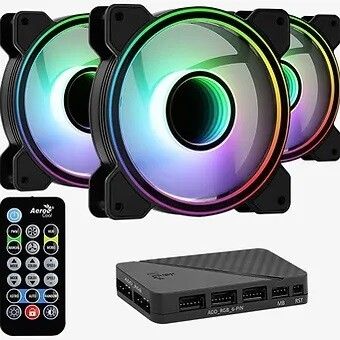

What's Included:

• 3x 12CM ARGB Fans
• 1x H66F Hub
• 1x Remote Control

Product Highlights:

• Infinity Mirror RGB Design: The center of the fan features an acrylic mirror with a single RGB LED ring, creating a mesmerizing infinity effect with endless RGB rings.
• Translucent Fan Blades: Enjoy the full beauty of RGB lighting through the translucent blades.
• Addressable RGB Compatibility: Access 16.8 million colors using compatible RGB motherboards like ASUS Aura Sync, MSI Mystic Light Sync, and Gigabyte RGB Fusion.
• H66F RGB Control Hub: Connect up to six 6-Pin ARGB fans and two ARGB accessories with a +5V ARGB connector. Includes PWM control functions for optimized fan speed.
• Curved Fan Blades: Designed to enhance airflow and cooling performance while reducing air resistance.
• Anti-Vibration Pads: Absorb and dampen vibrations caused by fan rotation for quieter operation.

Infinity Mirror RGB Design

The Mirage 12 ARGB fan features an acrylic mirror design in the center, paired with a single RGB LED ring. This creates a stunning infinity effect, delivering a truly unique and captivating lighting experience.

Addressable RGB Control

Take full control of your Mirage 12 ARGB fans through three different methods:

• Addressable RGB Motherboard
• LED Control Button
• RGB Remote Control

H66F RGB Control Hub

• A 6-port hub with PWM control functions allows you to connect:
  • Up to 6x 6-Pin ARGB fans.
  • Up to 2x ARGB accessories with +5V ARGB connectors.
• Compatible with Addressable RGB motherboards like ASUS Aura Sync, MSI Mystic Light Sync, and Gigabyte RGB Fusion.

PWM Control Function

The H66F hub includes PWM control functions to optimize fan speed, ensuring maximum cooling efficiency while minimizing noise.
Note: Please check if your motherboard's 4-Pin fan header is PWM compatible.

• PWM-based: Compatible
• Voltage-based: Not compatible

Additional Features:

• Addressable RGB Receptor Cable Included: Connects the hub to compatible Addressable RGB motherboards.
  • ARGB MB Connector (for ASUS, MSI, etc.)
  • ARGB MB Connector (Gigabyte RGB Fusion)
  • 4-Pin Hub Connector
  • PWM 4-Pin Connector
• Power Cable Included: Includes a SATA power connector for the hub.
• Curved Fan Blades: Effectively direct airflow for increased air pressure and reduced resistance.
• Anti-Vibration Pads: Minimize vibrations for a quieter setup.
• 6-Pin Connector: Connects to the H66F RGB Control Hub and is compatible with Addressable RGB cases.

Technical Specifications:

Fan:

• Dimensions: 120 x 120 x 25mm
• Fan Speed: 1300 rpm
• Connector Type: 6-pin
• Starting Voltage: 6V
• Rated Voltage: 12V
• Rated Current: 0.35A
• Power Consumption: 4.2W
• Air Pressure: 1.52mmH2O
• Air Flow: 45.7CFM
• Noise Level: 17.8dBA
• Bearing Type: Hydraulic Bearing
• MTBF: 60,000 hours

Hub & Remote:

• Type: RF wireless
• Connector: SATA
• Rated Voltage: 12V/5V
• Rated Current: 3A
• Frequency: 433.92 MHz
• Receive Range: 10m
• Ports:
  • 6x Fan Ports
  • 2x 5V ARGB Connector Ports

Accessories:

• Velcro Strap: 1
• Screws: 12
• Black Zip Ties: 2
