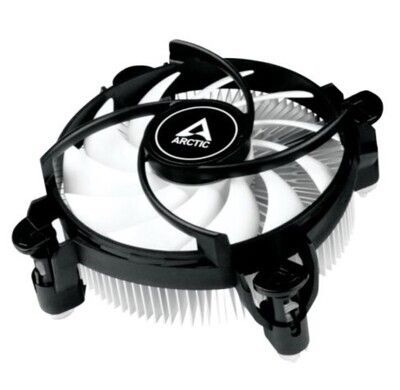

Arctic Alpine 17 LP Compact Low Profile Heatsink & Fan, Intel 1700, Fluid Dynamic Bearing

Low-Profile CPU-Cooler for Intel® Socket 1700

Designed for Intel Alder Lake & Raptor Lake

The Alpine 17 LP is specifically adapted and optimised for Intel's new LGA1700 CPUs.

• The radial cooler and the mounting spots are designed to centre the cooler directly on the CPU.
• This ensures the processor’s hotspot in all variants is covered by the aluminium core.

Low Profile Design

With an installation height of only 42.9 mm, the Alpine 17 LP is ideal for small and narrow housings:

• Space-saving and easy to assemble.
• Allows full access to all components close to the CPU.
• The compact top-blower design cools areas around the CPU socket.
• Perfectly suited for HTPC and Mini-ITX cases.

Good Price-Performance Ratio

The Alpine 17 LP offers impressive performance at a very low price, thanks to its flat radial heat sink and sophisticated fan design.

Proven Technology

ARCTIC employs a proven heat sink design in the Alpine 17 LP.

• Y-shaped, fanned-out cooling fins increase the cooling surface and optimise airflow.
• A novel production process ensures the fins are extra fine yet stable.
• The result is a powerful, flat, and compact radial heat sink.

Wide RPM Range

The Alpine 17 LP features an updated motor with a PWM-controlled rpm range from 300 to 3000 rpm:

• At low system load, the fan switches off almost completely, keeping noise levels minimal.
• Guarantees maximum cooling performance under stress.

High-Quality Bearing

ARCTIC's alloy/lubricant combination reduces friction inside the bearing, achieving:

• Higher efficiency.
• Less heat development and bearing noise.
• Extended service life of the fan.

Pre-Applied MX-4 Thermal Paste

The popular MX-4 thermal compound is pre-applied for:

• Quick and clean installation.
• Elimination of air pockets.
• Perfect transfer of exhaust heat from the processor IHS to the Alpine 17 LP's heat sink.
• Premium performance with long-term durability.

Easy and Tool-Free Installation

Installation is effortless with push pins and the cooler’s lightweight design:

• Easily mounted on the built-in motherboard without tools.
• Reliable installation even in the case of vibrations, thanks to the snap-in mechanism of the push pins.

Technical Specifications

• Type: CPU Cooler
• AMD/Intel Compatibility: Intel
• Socket Compatibility: Intel 1700
• Fan Connector(s): 4-pin
• Installation: Pushpins
• Colour: Black and White
• LED Lighting: None
• Material: Aluminium Heatsink
• Weight: 183.5 g
• Dimensions:
  • (LxWxH): 95 x 95 x 53.5 mm
  • Installation Height: 42.9 mm
• Fan Controller: PWM
• Rotation Speed: 300 - 3000 RPM
• Fan Bearing: Fluid Dynamic Bearing
• Noise Level: 0.5 Sone
• Power: Fan Current/Voltage: 0.18
• Package Type: Retail
• Package Weight: 0.2300 kg
