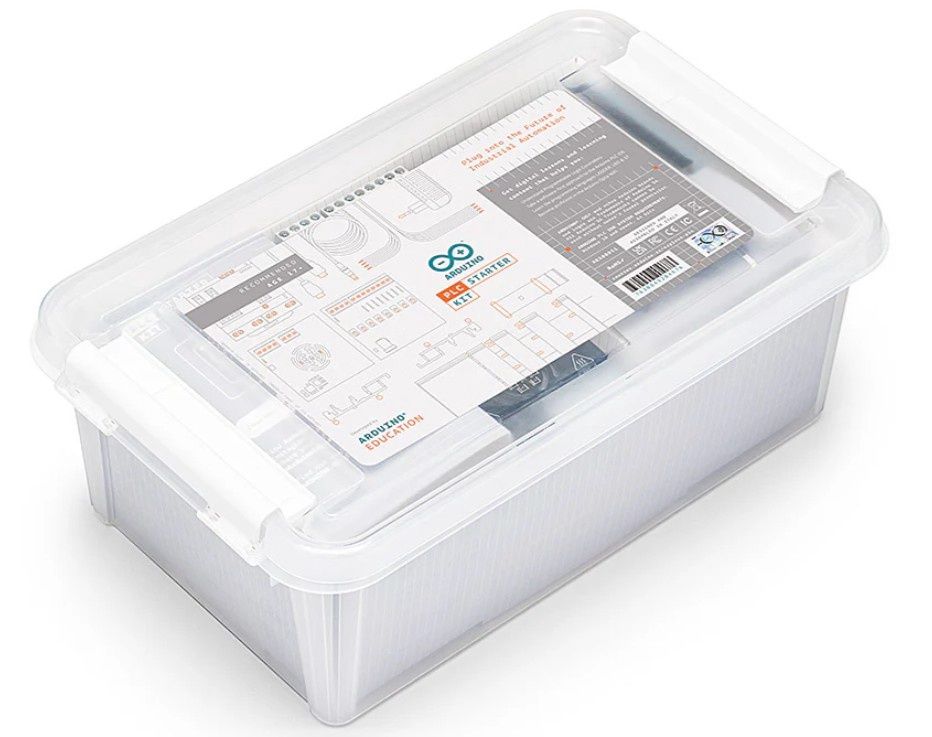

Arduino PLC Starter Kit - AKX00051

Plug into the future of industrial automation!

The PLC Starter Kit is designed to bridge the gap between theory and practice, closing gaps in current PLC education and preparing students for real-world challenges.

Why PLC Technology Matters

Programmable Logic Controller (PLC) technology is vital for industrial automation. However, gaps still exist between current PLC education and industry needs. To cultivate a robust industrial workforce, Arduino introduces the Arduino PLC Starter Kit, a dedicated educational tool.

Comprehensive Learning Experience

With this kit, you gain access to 20+ hours of lessons through the Explore PLC course. Students can learn about:

• Programmable Logic Controllers
• Modbus RS-485 communications
• Integration with industrial simulated systems

Choose from five PLC programming languages defined by the IEC 61131-3 standard:

• Ladder Diagram (LD)
• Function Block Diagram (FBD)
• Sequential Function Chart (SFC)
• Structured Text (ST)
• Instruction List (IL)

Effortlessly program the kit using the Arduino PLC IDE, a user-friendly environment that simplifies PLC programming for educators and students alike.

Enhanced Programming with Arduino Opta WiFi

The Arduino Opta WiFi can be programmed and integrated into an industrial automation system using the Arduino IDE 2. This improved platform offers:

• Increased performance
• An enhanced user interface
• Features such as autocompletion, a built-in debugger, and syncing sketches with Cloud

Cloud-Ready Hardware

The PLC Starter Kit integrates seamlessly with Arduino Cloud services, enabling remote control functionalities for both classroom and real-world scenarios. This low-code approach simplifies connected projects.
All hardware provided with the kit is fully documented on the Arduino Docs page, which includes:

• Tutorials
• Datasheets
• Guides
• Technical documentation

Key Benefits

• Pro industrial automation with reliability and power for complex projects
• Learning content aligned with industrial automation curriculum
• Easy, approachable, and efficient programming
• Practical applications with Arduino's signature ease-of-use, flexibility, and vast software library

Course: Explore PLC

The kit includes 20 hours of projects and tutorials to teach programmable logic control in classrooms.
Projects cover:

• Getting started
• Introduction to the software
• PLC history
• Communication protocols
• Digital input simulator learning
• Networks and counting

Access all content through one easy-to-use portal connected to the Arduino Cloud.
Free course: Explore PLC

Need Help?

For questions about the Arduino Language or creating your own projects, visit the Arduino Forum.
Learn more about Arduino Cloud for Schools here.

Hardware Overview

Arduino Opta WiFi

• STM32H747XI Dual Arm® Cortex® processor
• 8x configurable digital/analog (0-10 V) input
• 4x relays (250 V AC - 10A) output
• Support for 10/100 Ethernet (TCP/IP or Modbus TCP)
• USB-C®
• Wi-Fi® + Bluetooth® Low Energy
• RS485 half duplex

Arduino DIN Simul8

• 8 SPST Toggle Switches
• 8 signal lines
• Barrel Plug for power supply
• DIN bar mount
• Input reverse polarity and +24V miswiring protections on all screw terminals

Arduino DIN Celsius

• TMP236A2DBZR Temperature Sensor
• 24 V power lines for the 2 independent heater arrays
• DIN bar mount
• Input reverse polarity and +24V miswiring protections on all screw terminals

Other Components

• 20 cm double-ended cables (white, black, red)
• USB-C® Cable
• 24 V 1A Power Supply

Programming Languages Supported

• Arduino programming language via any IDE
• IEC-61131-3 standards:
  • Ladder Diagram (LD)
  • Function Block Diagram (FBD)
  • Sequential Function Chart (SFC)
  • Structured Text (ST)
  • Instruction List (IL)
