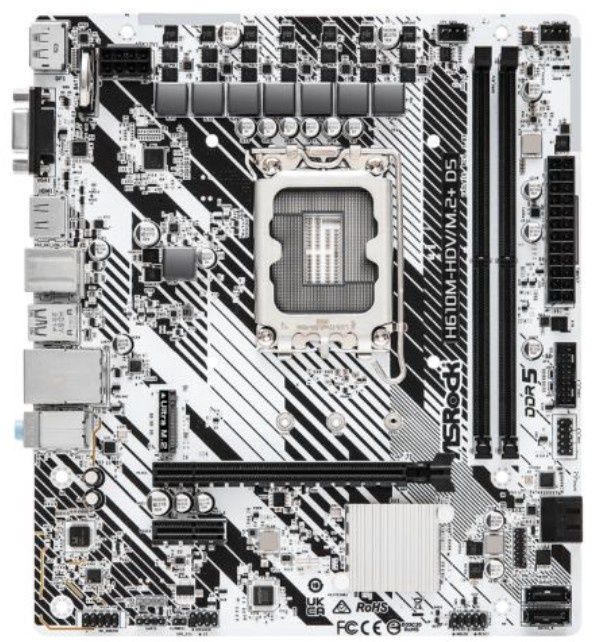

Asrock H610M-HDV/M.2+ D5, Intel H610, 1700, Micro ATX, 2 DDR5, VGA, HDMI, DP, PCIe4, 1x M.2

Key Features

• Supports 13th Gen & 12th Gen and next-gen Intel® Core™ Processors (LGA1700)
• 6+1+1 Power Phase Design: Sturdy components and smooth power delivery to the CPU, enhancing performance for gamers.
• Supports DDR5 5600MHz
• Graphics Output Options: HDMI, DisplayPort, D-Sub
• Realtek ALC897 7.1 CH HD Audio Codec
• Ultra M.2 32Gb/s (PCIe Gen3 x4): Pushes data transfer speeds up to 32Gb/s.
• USB 3.2 Gen1 Type-C: Delivers up to 5 Gbps data transfer rate with a reversible design.
• 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4)
• Multiple USB Ports:
  • Rear: 1 x USB 3.2 Gen1 Type-C, 1 x USB 3.2 Gen1 Type-A, 4 x USB 2.0
  • Front: 2 x USB 3.2 Gen1 Type-A, 2 x USB 2.0
• Realtek Gigabit LAN
• Supports ASRock Auto Driver Installer: Preinstalled LAN driver for easier driver installations.

Advanced Design Features

Polychrome RGB

• Includes an addressable RGB header for connecting compatible LED devices like strips, CPU fans, coolers, and chassis.
• Synchronize RGB LED devices across Polychrome RGB Sync-certified accessories to create unique lighting effects.

HDMI 4K @60Hz

• Supports the latest HDMI 4K 60Hz graphics output specification for fluid motion and reduced blurriness.

Auto Driver Installer

1. Install the Auto Driver Installer.
2. Update needed drivers.
3. Done! No need for a disk drive.

Specifications

Motherboard Type & Form Factor

• Type: Desktop
• Form Factor: Micro ATX

CPU & RAM

• Socket: Intel 1700
• Chipset: Intel H610
• RAM Technology: DDR5, Dual Channel, Supports Intel Extreme Memory Profile (XMP) 3.0
• RAM Slots: 2 x DIMM
• RAM Speeds: Up to 5600MHz
• Maximum Memory: 128GB

Graphics

• Integrated Graphics (specifications may vary between CPU types)
• Graphics Ports:
  • 1 x VGA
  • 1 x HDMI
  • 1 x DisplayPort

PCI/PCI Express

• 1 x PCIe 4.0 x16 (supports x16 mode)
• 1 x PCIe 3.0 x1

Storage

• 4 x SATA III
• 1 x M.2 (2242/2260/2280) - PCIe 3.0 x4

Audio

• 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN

• Realtek Gigabit LAN

Back Panel I/O Ports

• 1 x PS/2 Mouse/Keyboard
• 1 x D-Sub
• 1 x HDMI
• 1 x DisplayPort 1.4
• 1 x USB 3.2 Gen1 Type-C
• 1 x USB 3.2 Gen1 Type-A
• 4 x USB 2.0
• 1 x RJ-45 LAN
• HD Audio Jacks

Internal I/O Connectors

• 1 x SPI TPM
• 1 x Chassis Intrusion and Speaker
• 1 x Addressable LED
• 1 x CPU Fan
• 1 x Chassis/Water Pump Fan
• 1 x 24 pin ATX
• 1 x 8 pin 12V
• 1 x Front Audio
• 1 x USB 2.0
• 1 x USB 3.2 Gen1

Accessories

• 1 x User Manual
• 1 x I/O Shield
• 2 x SATA Data Cables
• 1 x Screw for M.2 Socket

Package Details

• Type: Retail
• Weight: 0.7300 kg
