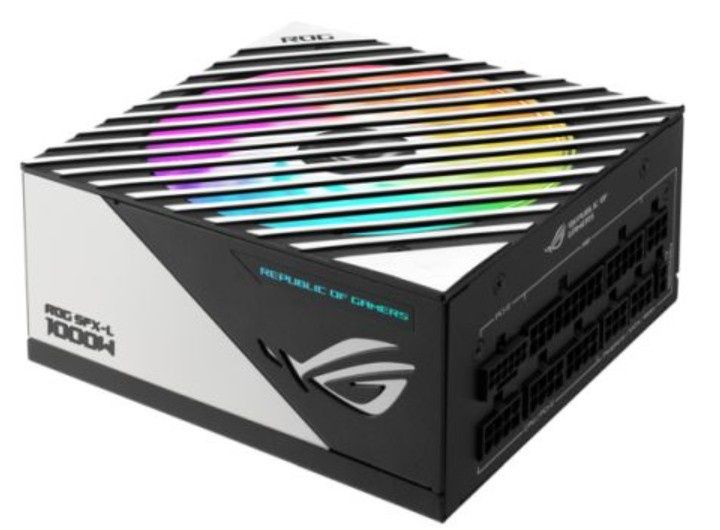

Asus 1000W ROG LOKI SFX-L Platinum PSU, Small Form Factor, Fully Modular, 80+ Platinum, PCIe 5.0, 0dB Fan Button, RGB, ATX-to- SFX Bracket

The Quietest SFX-L PSU

Taking inspiration from the ROG Thor, the ROG Loki SFX-L 1000W Platinum combines enthusiast-grade components and features into a compact SFX-L form factor. Designed for quiet operation and high performance, the Loki is ready to power your next small form factor (SFF) build.

Key Features

• Axial-Tech Cooling
  120mm fan with PWM control ensures low noise and maintains optimal thermals.

• Compact Form Factor
  SFX-L dimensions: 125 x 125 x 63.5 mm.

• PCIe Gen 5.0 Ready
  Includes a 16-pin cable capable of delivering up to 600W to PCIe 5.0 graphics cards.

• Future Ready
  Tighter voltage and current regulation for next-gen hardware.

• 80 PLUS Platinum Certified
  Up to 92% efficiency for reduced heat, minimal noise, and enhanced reliability.

• ARGB-Illuminated Fan & Aura Sync
  Synchronize lighting effects across your gaming setup with customizable RGB lighting.

Advanced Cooling Technology

ROG Heatsinks

• Cool under pressure: Lower temperatures, longer component lifespan, and extended 0dB operation.

Axial-tech Fan Design

• Better, faster, stronger: Features a smaller fan hub, longer blades, and a barrier ring to enhance downward air pressure. The 120mm fan operates at low RPMs for efficient cooling with less noise.

Dual Ball Fan Bearings

• 2x longer lifespan: The dual ball bearing setup ensures the fan lasts twice as long as sleeve bearing designs.

0dB Technology

• Quiet intelligence: The PWM-controlled fan shuts off entirely when the PSU load is 40% or below, reducing noise output.

Efficiency and Compatibility

80 PLUS Platinum Certified

• Effortless output: Equipped with low-ESR Japanese capacitors for improved efficiency and reduced heat, ensuring reliable performance for years.

ATX 3.0 Compatible

• Step into the future: Fully compliant with the latest ATX 3.0 specifications, offering tighter voltage and current regulation. Includes a 16-pin PCIe cable capable of delivering up to 600W for PCIe Gen 5.0 graphics cards, making it ideal for next-gen SFF builds.

Customizable RGB Lighting

ARGB-illuminated Fan & Aura Sync

• Magical glow: The 120mm fan features eight addressable LEDs customizable with Aura Sync, allowing you to create coordinated lighting patterns across your build.

Note: If the connector cable is not used, the default color effect is rainbow.
To enjoy Aura Sync, an Aura Sync-compatible ASUS or ROG motherboard is required. Smart Mode lighting effects, which reflect GPU temperature, require a compatible ASUS or ROG graphics card.

Technical Specifications

• Form Factor: SFX-L
• Series: Asus ROG LOKI SFX-L
• Wattage: 1000W
• Modular: Fully Modular
• Compatibility: ATX 3.0 compatible

Connectors:

• 1 x MB 24/20-pin
• 2 x CPU 4+4-pin
• 1 x PCI-E 16-pin
• 3 x PCI-E 8-pin
• 6 x SATA
• 4 x Peripheral

Fan Details:

• Type: 120mm PWM ARGB-Illuminated fan
• Design: Axial-tech Fan Design with Dual Ball Fan Bearings
• Technology: 0dB Fan Button

Efficiency:

• Certification: 80+ Platinum
• Performance: Up to 92% efficient

Protection Features:

• OPP/OVP/UVP/SCP/OCP/OTP

Package Contents

• 1 x Power Cord
• 1 x Motherboard Power Cable (450mm)
• 2 x CPU Cable (550mm)
• 1 x PCI-E Gen 5 16-pin Cable (450mm)
• 1 x PCI-E 1-to-1 Cable (450mm)
• 1 x PCI-E 1-to-2 Cable (450mm)
• 2 x SATA 1-to-3 Cable (300+200+100mm)
• 1 x Peripheral 1-to-4 Cable (300+100+100+100mm)
• 1 x Addressable RGB Cable (800mm)
• 1 x User Manual
• 1 x ATX to SFX adapter bracket

Dimensions and Weight

• Product Dimensions: 125 x 125 x 63.5 mm
• Weight: 1.83 kg
• Package Weight: 2.62 kg

With its cutting-edge features, compact design, and advanced cooling technology, the ROG Loki SFX-L 1000W Platinum is the ultimate PSU to power your next-generation SFF build.
