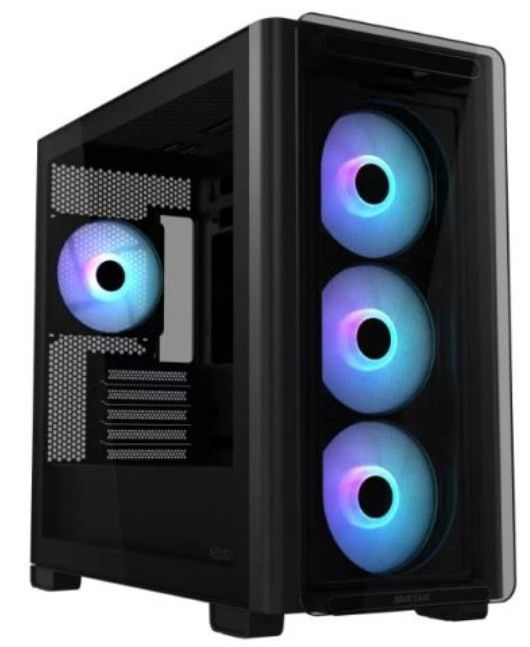

Asus A23 PLUS ARGB Gaming Case w/ Glass Side and Front, Micro ATX, 4x ARGB Fans, 380mm GPU & 360mm Radiator Support, USB-C, Asus BTF Compatible, Black

The ASUS A23 PLUS Micro-ATX Case: Key Features at a Glance

Hidden Connectors

• Compatible with motherboards featuring hidden connectors, such as the TUF GAMING B760M-BTF WIFI, where connectors and headers are located on the underside.
• Maximizes clean cable management for a clutter-free build.

Broad Compatibility

• Radiator Support: Supports up to 360 mm radiators.
• Graphics Cards: Compatible with GPUs up to 380 mm in length.
• CPU Coolers: Accommodates air coolers up to 165 mm tall, offering builders flexibility for high-performance components.

Standoff-Mounted Tempered-Glass Front Panel

• Rounded and thickened tempered glass with exceptional scratch resistance.
• Enlarged window design to showcase the captivating visuals of front ARGB fans.

Four Pre-Installed ARGB Fans

• Includes 3 ARGB fans at the front and 1 ARGB fan at the rear.
• Provides premium cooling and a mesmerizing dynamic lighting display to enhance both functionality and aesthetics.

Ample Cable Management

• A 33 mm wide compartment behind the motherboard ensures your wiring stays tucked away and tidy.

Front Panel USB Type-C

• Equipped with a USB 10Gbps Type-C® port for high-speed data transfer.
• Also features two USB-A ports, headphone, and microphone jacks for versatile connectivity.

Technical Specifications

• Form Factor: Micro ATX
• Motherboard Support: Micro ATX, Mini ITX
• Power Supply: No PSU included
• Drive Bays:
  • 1 x 2.5" Bay
  • 2 x 2.5"/3.5" Combo Bays
• Expansion Slots: 5 Expansion Slots

Cooling System

• Included Fans:
  • Front: 3 x ARGB Fans
  • Rear: 1 x ARGB Fan
• Fan Mounts:
  • Front: 3 x 120 mm / 2 x 140 mm
  • Top: 3 x 120 mm / 2 x 140 mm
  • Rear: 1 x 120 mm
• Radiator Support:
  • Front: Up to 360 mm
  • Top: Up to 360 mm
  • Rear: 120 mm

Compatibility

• GPU Max Length: 380 mm
• CPU Cooler Max Height: 165 mm
• PSU Max Length: 210 mm

Material and Design

• Material: Steel, Plastic, Tempered Glass
• Colour: Black

Weight and Dimensions

• Weight: 8.9 kg
• Dimensions: 479 x 220 x 450 mm

Additional Features

• Asus BTF Compatibility: Learn more about the innovative hidden-connector design by clicking here.
• Package Weight: 8.9000 kg

The ASUS A23 PLUS is a sleek and functional case tailored for minimalist mainstream DIY PC builders. With its support for high-performance components, clean cable management, and dynamic ARGB lighting, it’s the perfect choice for your next build.
