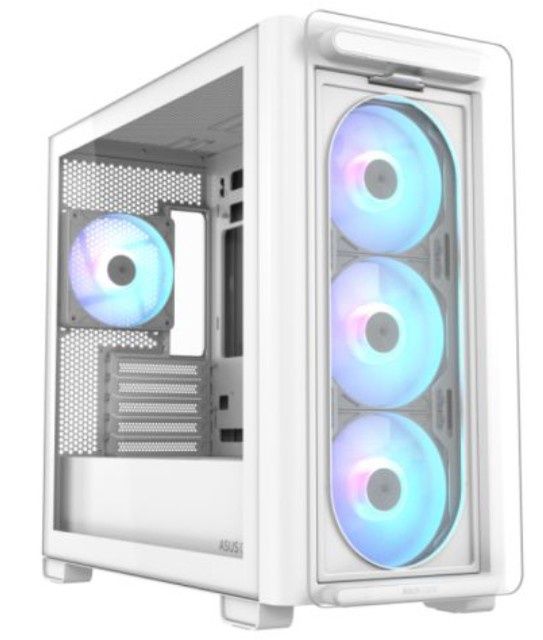

Asus A23 PLUS ARGB Gaming Case w/ Glass Side and Front, Micro ATX, 4x ARGB Fans, 380mm GPU & 360mm Radiator Support, USB-C, Asus BTF Compatible, White

Overview

The ASUS A23 PLUS micro-ATX case is a sleek and functional PC case designed for minimalist DIY builders. It offers support for hidden-connector motherboards, 360 mm radiators, and 380 mm graphics cards, with a choice of black or white color options. Featuring four pre-installed ARGB fans, a standoff-mounted tempered-glass front panel, and clean cable management, this case ensures both style and performance.

Key Features

Hidden Connectors

• Compatible with motherboards featuring hidden connectors, such as the TUF GAMING B760M-BTF WIFI, which places connectors and headers on the underside for maximum cable management and a clutter-free build.

Broad Compatibility

• Supports:
  • Radiators up to 360 mm.
  • Graphics cards up to 380 mm in length.
  • CPU air coolers up to 165 mm in height.

Standoff-Mounted Tempered-Glass Front Panel

• Features rounded, scratch-resistant tempered glass with an enlarged window design, allowing users to enjoy the stunning visuals of the front ARGB fans.

Ample Cable Management

• A 33 mm wide compartment behind the motherboard ensures that your wiring stays tucked away and tidy.

Four Pre-Installed ARGB Fans

• Delivers premium cooling and mesmerizing dynamic lighting, enhancing both functionality and aesthetics.

Front Panel USB Type-C

• Includes a USB 10Gbps Type-C® port for ultra-fast transfer speeds, in addition to two USB-A ports.

Detailed Specifications

Form Factor

• Micro ATX

Motherboard Support

• Micro ATX, Mini ITX

Drive Bays

• 1 x 2.5" Bay
• 2 x 2.5"/3.5" Combo Bays

Expansion Slots

• 5 Expansion Slots

Cooling System

• Included Fans:
  • Front: 3 x ARGB Fans
  • Rear: 1 x ARGB Fan
• Fan Mounts:
  • Front: 3 x 120 mm / 2 x 140 mm
  • Top: 3 x 120 mm / 2 x 140 mm
  • Rear: 1 x 120 mm
• Radiator Support:
  • Front: Up to 360 mm
  • Top: Up to 360 mm
  • Rear: 120 mm

Connectivity

• 1 x USB 3.2 Gen2 Type-C
• 2 x USB 3.2 Gen1 Type-A
• 1 x Headphone Jack
• 1 x Microphone Jack

Compatibility

• GPU Max Length: 380 mm
• CPU Cooler Max Height: 165 mm
• PSU Max Length: 210 mm

Material

• Steel, Plastic, Tempered Glass

Color

• White

Weight and Dimensions

• Weight: 8.9 kg
• Dimensions: 479 x 220 x 450 mm

Additional Features

• Learn more about Asus BTF Hidden Connector Design here.
