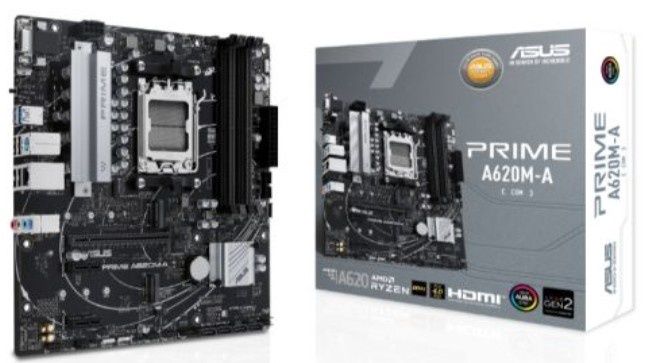

Asus PRIME A620M-A-CSM - Corporate Stable Model, AMD A620, AM5, Micro ATX, 4 DDR5, VGA, HDMI, DP, GB LAN, PCIe4, 2x M.2

Key Features

• AM5 Socket: Designed for AMD Ryzen™ Desktop Processors.
• Ultrafast Connectivity: Includes PCIe 4.0 support, dual M.2 slots, USB 3.2 Gen 1 ports, and front USB 3.2 Gen 1 Type-C®.
• ASUS OptiMem II: Optimized trace routing and ground layers for improved memory overclocking.
• Comprehensive Cooling: Features VRM heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 2+ for efficient cooling.
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for customizable RGB LED strips, compatible with Aura Sync hardware.
• Two-Way AI Noise-Cancelation: Reduces background noise for clear communication during gaming or video conferencing.
• ASUS Control Center Express: Integrated IT monitoring and management software for streamlined operations.

ASUS PRIME Series Overview

The ASUS PRIME series motherboards are meticulously engineered to unlock the full potential of AMD Ryzen 7000-series processors. With robust power design, comprehensive cooling solutions, and intelligent tuning options, the PRIME A620M-A-CSM offers a variety of performance optimizations through intuitive software and firmware features.

Corporate Stable Model (CSM)

The ASUS Corporate Stable Model (CSM) program ensures stable and reliable motherboards with up to 36-month product lifecycle support and 6-month end-of-life notice, providing adequate lead time for product transitions. Each purchase includes ASUS Control Center Express, a server-grade IT management software compatible with over 100 ASUS motherboards, offering a high-quality, TCO-optimized solution for businesses.

Learn more about ASUS Control Center Express
Learn more about ASUS CSM

Flexibility and Customization

• Flexible Tools: The PRIME A620 motherboard includes comprehensive controls, enabling system performance tweaks to maximize productivity.
• Customizable Experience: Exclusive codecs offer pristine audio quality, while intuitive RGB lighting controls allow system personalization with Aura Sync.

Cooling and Performance

• Cooling: Multiple onboard heatsinks and hybrid fan headers ensure stability and cooling under intense workloads.
• Performance: Designed to handle the demands of high core counts and bandwidth for AMD processors, the PRIME A620 series delivers stable power, intuitive cooling, and flexible data transfer options to boost daily productivity.

Technical Specifications

Motherboard Type

• Desktop

Form Factor

• Micro ATX

Socket

• AMD AM5

Chipset

• AMD A620

CPU Support

• Click here for CPU compatibility

RAM

• Technology: DDR5 (Dual Channel)
• Slots: 4 x DIMM
• Speeds: Up to 7600+(OC)
• Maximum Memory: 192GB
• Features: Supports AMD Extended Profiles for Overclocking (EXPO), OptiMem II

Graphics

• Integrated Graphics: Specifications vary by CPU type
• Ports:
  • 1 x VGA
  • 1 x HDMI
  • 1 x DisplayPort

PCI/PCI Express

• 1 x PCIe 4.0 x16
• 2 x PCIe 3.0 x1

Storage

• 4 x SATA III
• 2 x M.2 (2242/2260/2280) - PCIe 4.0 x4

RAID

• AMD RAIDXpert2 Technology: Supports PCIe RAID 0/1/10 and SATA RAID 0/1/10

LAN

• GB LAN

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported

• Rear:
  • 2 x USB 3.2 Gen1 Type-A
  • 4 x USB 2.0
• Front:
  • 1 x USB 3.2 Gen1 Type-C
  • 2 x USB 3.2 Gen1
  • 4 x USB 2.0

Back Panel I/O Ports

• 2 x USB 3.2 Gen1 Type-A
• 4 x USB 2.0
• 1 x DisplayPort
• 1 x VGA
• 1 x HDMI
• 1 x Realtek 1Gb Ethernet
• 3 x Audio jacks
• 1 x BIOS FlashBack button
• 1 x PS/2 Keyboard/Mouse combo

Internal I/O Connectors

• 1 x 4-pin CPU Fan
• 2 x 4-pin Chassis Fan
• 1 x 24-pin Main
• 1 x 8-pin +12V
• 2 x M.2 (Key M)
• 4 x SATA 6Gb/s
• 1 x USB 3.2 Gen1 Type-C
• 1 x USB 3.2 Gen1
• 2 x USB 2.0
• 3 x Addressable Gen2
• 1 x Aura RGB
• 1 x Clear CMOS
• 1 x COM Port
• 1 x Front Panel Audio
• 1 x S/PDIF Out
• 1 x Speaker
• 1 x SPI TPM (14-1pin)
• 1 x 10-1 pin System Panel

Accessories

• 2 x SATA 6Gb/s cables
• 1 x I/O Shield
• 1 x Screw package for M.2 SSD
• 1 x ACC Express Activation Key Card
• 1 x User guide

Package Details

• Type: Retail
• Weight: 1.3000 kg

For full product details, click here.
