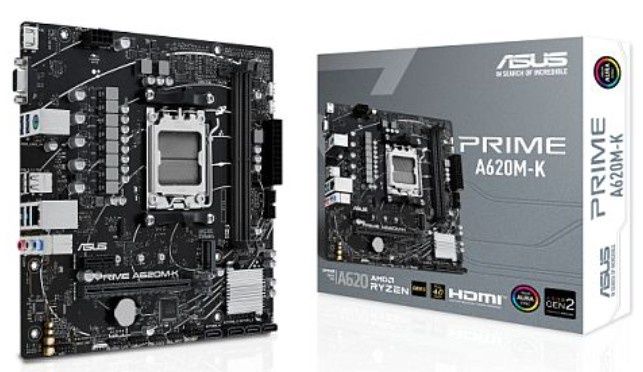

Asus PRIME A620M-K, AMD A620, AM5, Micro ATX, 2 DDR5, VGA, HDMI, GB LAN, PCIe4, 1x M.2

Key Features

• AMD AM5 Socket: Ready for AMD Ryzen™ 7000 Series Desktop Processors.
• Ultrafast Connectivity:
  • PCIe 4.0
  • 64Gbps M.2 slot
  • Realtek 1Gb Ethernet
  • USB 3.2 Gen 1 Type-A
• Comprehensive Cooling: PCH heatsink and Fan Xpert technology.
• Aura Sync RGB Lighting: Includes onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware.
• Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication during gaming or video conferencing.

Overview

Prime Series
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. With a robust power design, comprehensive cooling solutions, and intelligent tuning options, the PRIME A620M-K offers performance optimizations via intuitive software and firmware features.

Detailed Features

Flexibility

The ASUS PRIME series provides comprehensive controls to tune every aspect of your system. The PRIME A620 motherboard includes flexible tools to optimize performance, perfectly matching your workflow and maximizing productivity.

Cooling

Designed with hybrid fan headers and a two-ounce copper PCB, the PRIME A620M-K ensures your system stays cool and stable under intense workloads.

Performance

Built to handle high core counts and bandwidth demands of AMD processors, the PRIME A620 series delivers stable power, intuitive cooling, and flexible data transfer options to boost daily productivity.

Customization

Enjoy exclusive features like pristine audio quality from advanced codecs and intuitive RGB lighting controls. Customize your system to create a uniquely personal look.

Specifications

Motherboard Details

• Type: Desktop
• Form Factor: Micro ATX
• Socket: AMD AM5
• Chipset: AMD A620

CPU and RAM

• CPU Support: Click here for compatibility details.
• RAM Technology: DDR5 (Dual Channel), Non-ECC, Un-buffered Memory
• RAM Slots: 2 x DIMM
• RAM Speeds: Up to 6400+ (OC)
• Maximum Memory: 96GB

Graphics

• Integrated Graphics: Specifications vary based on CPU type.
• Graphics Ports:
  • 1 x VGA
  • 1 x HDMI

Expansion Slots

• PCI/PCI Express:
  • 1 x PCIe 4.0 x16 (supports x16 mode)
  • 1 x PCIe 3.0 x1

Storage

• SATA and M.2:
  • 4 x SATA III
  • 1 x M.2 (2242/2260/2280) - PCIe 4.0 x4
• RAID: AMD RAIDXpert2 Technology supports PCIe RAID 0/1/10 and SATA RAID 0/1/10

Networking

• LAN: Realtek 1Gb Ethernet

Audio

• Codec: Realtek 7.1 Surround Sound High Definition Audio

USB Ports

• Rear:
  • 4 x USB 3.2 Gen1 Type-A
  • 2 x USB 2.0
• Front:
  • 1 x USB 3.2 Gen1 header (supports 2 USB 3.2 Gen1 ports)
  • 2 x USB 2.0 headers (supports 4 USB 2.0 ports)

Back Panel I/O Ports

• 4 x USB 3.2 Gen1 Type-A
• 2 x USB 2.0
• 1 x VGA
• 1 x HDMI
• 1 x Realtek 1Gb Ethernet
• 3 x Audio jacks
• 1 x PS/2 Keyboard/Mouse combo

Internal I/O Connectors

• 1 x 4-pin CPU Fan
• 1 x 4-pin Chassis Fan
• 1 x 24-pin Main
• 1 x 8-pin +12V
• 1 x M.2 (Key M)
• 4 x SATA 6Gb/s
• 1 x USB 3.2 Gen1
• 2 x USB 2.0
• 2 x Addressable Gen2
• 1 x Aura RGB
• 1 x Clear CMOS
• 1 x COM Port
• 1 x Front Panel Audio
• 1 x S/PDIF Out
• 1 x Speaker
• 1 x SPI TPM (14-1 pin)
• 1 x 10-1 pin System Panel

Accessories

• 2 x SATA 6Gb/s cables
• 1 x I/O Shield
• 1 x Screw package for M.2 SSD
• 1 x User guide

Package Details

• Type: Retail
• Weight: 1.1000 kg
