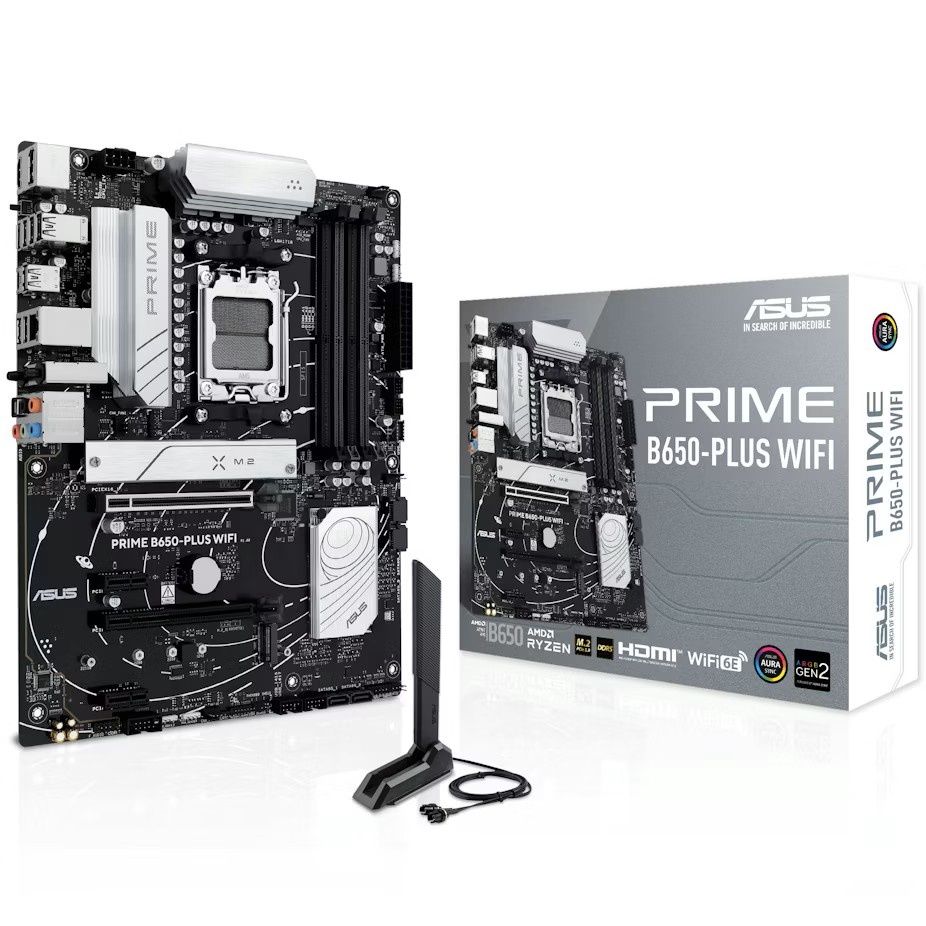

Asus PRIME B650-PLUS WIFI (Socket AM5/B650/DDR5/S-ATA 6Gb/s/ATX)

Chipset - AMD B650

CPU Interface - Socket AM5

CPU Support - https://www.asus.com/uk/motherboards-components/motherboards/prime/prime-b650-plus-wifi/helpdesk_qvl_cpu?model2Name=PRIME-B650-PLUS-WIFI

RAM Technology - DDR5 (Dual Channel)

RAM Slots - 4 x 288-pin

RAM Speeds - Up to DDR5 7600+ (O.C.)

Max. Memory Support - 192GB

PCI Express 4.0 x16 - 2

PCI Express 4.0 x1 - 2

S-ATA 6Gb/s Port(s) - 4

RAID - Raid 0/1/5/10

M.2 Socket(s) -

• 1 x PCIe Gen 5.0 x4
• 1 x PCIe Gen 4.0 x4

LAN Speed - 1 x Realtek 2.5Gb Ethernet

Wireless NIC - Wi-Fi 6E

Wireless Technology -

• 2x2 Wi-Fi 6E (802.11ax)
• Supports 2.4/5/6GHz frequency band

Bluetooth - v5.3

On-Board Audio - Realtek 7.1 Surround Sound High Definition Audio CODEC

On-Board Video - Processor with integrated graphics is required

Back Panel I/O Ports - 1

Back USB 2.0 Port(s) - 2

Back USB 5Gbps Port(s) Type-A - 2

Back USB 10Gbps Port(s) Type-A - 3

Back USB 10Gbps Port(s) Type-C - 1

Back HDMI Port(s) - 1

Back DisplayPort(s) - 1

Back LAN Port(s) - 1

Back Audio Jack(s) - 5

Back S/PDIF Output Port(s) - 1

Back Other Port(s) - 1 x Wi-Fi Module

Back Button(s) - 1 x BIOS FlashBack

24-pin ATX Power - 1

8-pin ATX Power - 1

USB 2.0 Header(s) - 2

USB 5Gbps Header(s) - 2

Thunderbolt Header(s) - 1

COM Port Header(s) - 1

Front Panel Audio Connector - 1

TPM Header(s) - 1

Internal Other Port(s) -

• 3 x Addressable Gen 2 headers
• 1 x Aura RGB header

Form Factor - Standard ATX

Product Width -244mm

Product Length - 305mm

Package Width - 27.5cm

Package Length - 34.5cm

Package Height - 7cm

Gross Weight - 1.67Kg
