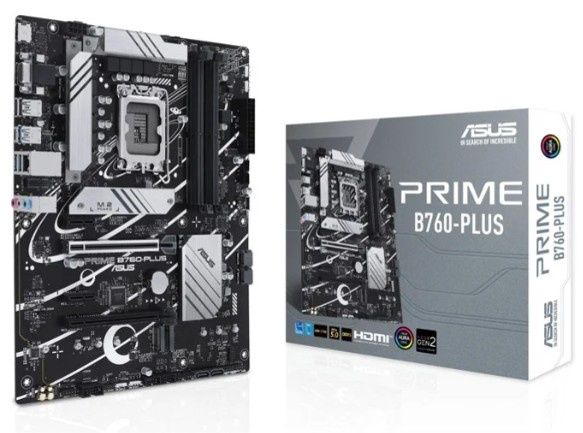

Name: Asus PRIME B760-PLUS, Intel B760, 1700, ATX, 4 DDR5, VGA, HDMI, DP, 2.5G LAN, PCIe5, 3x M.2
Brand: Asus
SKU: 4711387102985
Price: 170.0 GBP
Availability: OutOfStock

Asus PRIME B760-PLUS, Intel B760, 1700, ATX, 4 DDR5, VGA, HDMI, DP, 2.5G LAN, PCIe5, 3x M.2

Product Details

Brand: Asus

B760-PLUS

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions, and intelligent tuning options, PRIME B760-PLUS provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

Key Features

Flexibility

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760-PLUS motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work and maximize productivity.

Intelligent Control

ASUS Intelligent Control makes your PC smart.
It handles complex tuning and dynamically optimizes essential aspects of your system.
Offers simplified options for newcomers to PC DIY and comprehensive features for seasoned veterans.

UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak, and tune your system:

EZ Mode: Displays vital settings and stats, offers guided wizards, drag-and-drop functionality, and one-click application of important settings for quick setup.
Advanced Mode: Comprehensive features for experienced users to fine-tune their system.

Performance Enhancements

All-Around Energy Efficiency

The Power Saving function includes settings to optimize power consumption and maximize energy savings:

Enable CPU power limit.
Darken Aura lighting.
Set fan profiles to power-saving mode.
Toggle the Power Saver plan built into Microsoft Windows.

Flexible Air- and Liquid-Cooling Controls

ASUS Fan Xpert 2+ software provides comprehensive control over fans and all-in-one (AIO) coolers:

Auto-Tuning Mode: Configures parameters with a single click.
Extreme Quiet Mode: Reduces chassis fan speeds for whisper-quiet operation during light tasks.
Cooling controls are also accessible via UEFI BIOS.

Precise Digital Power Control

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop and automatically switches frequency and power-efficiency settings. This ensures ultimate stability and performance.

Intuitive Graphical Fan Control

Fine-tune individual fan settings simply by dragging a curve with the mouse.

Aura On/Off Mode (Stealth)

Easily enable or disable Aura RGB lighting or every onboard LED for a subdued aesthetic touch.

Specifications

Processor

Processor manufacturer: Intel
Processor socket: LGA 1700
Compatible processor series: Intel® Celeron®, Intel® Core™ i3/i5/i7/i9, Intel® Pentium® Gold
Maximum number of SMP processors: 1

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory channels: Dual-channel
Supported memory clock speeds: 4800 to 7200 MHz
Maximum internal memory: 192 GB

Storage

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
RAID support: Yes (Levels 0, 1, 5, 10)
Number of storage drives supported: 7

Graphics

HDMI version: 2.1
DisplayPort version: 1.4

Network

Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Wi-Fi: Not supported

Expansion Slots

PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
Number of M.2 (M) slots: 3

BIOS

BIOS type: UEFI AMI
BIOS memory size: 128 Mbit

Dimensions

Width: 305 mm
Depth: 244 mm
Height: 36 mm

Packaging

Cables included: SATA
Package weight: 1.2 kg

The ASUS PRIME B760-PLUS motherboard is expertly designed for PC enthusiasts and DIY builders, providing robust performance, intelligent control, and comprehensive cooling solutions.
