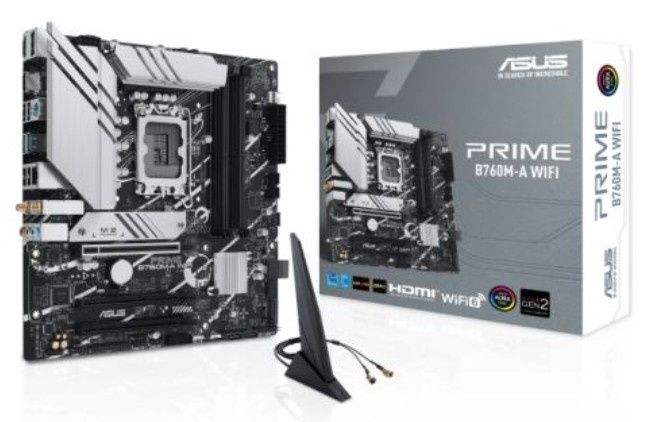

Asus PRIME B760M-A WIFI, Intel B760, 1700, Micro ATX, 4 DDR5, 2 HDMI, DP, Wi-Fi 6, 2.5G LAN, PCIe4, 2x M.2

Key Features

• Intel® LGA 1700 Socket: Compatible with 13th and 12th Gen Intel® processors.
• Ultrafast Connectivity:
  • PCIe 4.0
  • Two M.2 slots
  • Realtek 2.5Gb Ethernet
  • Wi-Fi 6
  • Rear USB 3.2 Gen 2
  • Front USB 3.2 Gen 1 Type-C®
• Comprehensive Cooling:
  • VRM heatsinks
  • M.2 heatsink
  • PCH heatsink
  • Hybrid fan headers
  • Fan Xpert 2+
• Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II.
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware.

Overview

Prime Series

The ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. With a robust power design, comprehensive cooling solutions, and intelligent tuning options, the PRIME B760M-A WIFI offers a range of performance optimizations through intuitive software and firmware features.

Flexibility

The PRIME B760 motherboard includes flexible tools to tune every aspect of your system, enabling performance adjustments tailored to your work style and maximizing productivity.

Cooling

Engineered with multiple onboard heatsinks and hybrid fan headers, the PRIME B760 series ensures your rig stays cool and stable under intense workloads.

Performance

Built to handle high core counts and bandwidth demands, the PRIME B760 series provides stable power, intuitive cooling, and flexible data transfer options to boost daily productivity.

Customization

From exclusive codecs for pristine audio quality to intuitive RGB lighting controls, the PRIME B760 series allows you to create a uniquely personal look and feel for your system.

Specifications

Motherboard Details

• Type: Desktop
• Form Factor: Micro ATX
• Socket: Intel 1700
• Chipset: Intel B760

CPU Support

• Compatible with 13th and 12th Gen Intel® processors.
• For detailed CPU compatibility, click here.

Memory

• Technology: DDR5 (Dual Channel)
• Slots: 4 x DIMM
• Speeds: Up to 7200+(OC)
• Maximum Memory: 192GB

Graphics

• Integrated Graphics: Specifications may vary between CPU types.
• Ports:
  • 2 x HDMI
  • 1 x DisplayPort

Expansion Slots

• 1 x PCIe 4.0 x16
• 1 x PCIe 4.0 x16 (supports x4 mode)
• 1 x PCIe 4.0 x16 (supports x1 mode)

Storage

• 4 x SATA III
• 2 x M.2 (2242/2260/2280) - PCIe

RAID

• Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.

Wireless

• Wi-Fi 6: 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax), supports 2.4/5GHz frequency band.
• Bluetooth: v5.2

LAN

• Realtek 2.5Gb Ethernet

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports

• Rear:
  • 2 x USB 3.2 Gen2 Type-A
  • 4 x USB 2.0
• Front:
  • 1 x USB 3.2 Gen1 Type-C Header
  • 4 x USB 3.2 Gen1 (mid-board)
  • 5 x USB 2.0 (mid-board)

Back Panel I/O Ports

• 2 x USB 3.2 Gen2 Type-A
• 4 x USB 2.0
• 1 x DisplayPort
• 2 x HDMI
• 1 x Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet
• 3 x Audio jacks
• 1 x PS/2 Keyboard/Mouse combo

Internal I/O Connectors

• 1 x 4-pin CPU Fan
• 1 x 4-pin CPU OPT Fan
• 2 x 4-pin Chassis Fan
• 1 x 24-pin Main
• 1 x 8-pin +12V
• 2 x M.2 (Key M)
• 4 x SATA 6Gb/s
• 2 x USB 3.2 Gen1
• 1 x USB 3.2 Gen1 Type-C
• 2 x USB 2.0
• 3 x Addressable Gen2
• 1 x Aura RGB
• 1 x Clear CMOS
• 1 x Front Panel Audio
• 1 x S/PDIF Out
• 1 x SPI TPM (14-1pin)

Accessories

• 2 x SATA 6Gb/s cables
• 1 x ASUS Wi-Fi moving antennas
• 1 x I/O Shield
• 1 x M.2 Rubber Package
• 1 x Screw package for M.2 SSD
• 1 x User guide

Additional Information

• Package Type: Retail
• Package Weight: 1.6000 kg
