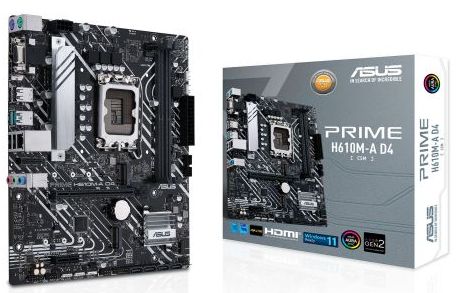

Asus PRIME H610M-A D4 CSM - Corporate Stable Model, Intel H610, 1700, Micro ATX, 2 DDR4, VGA, HDMI, DP, PCIe4, 2x M.2

Overview

Intel H610 (LGA 1700) Micro-ATX Motherboard featuring DDR4, PCIe 4.0, dual M.2 slots, Intel 1 Gb Ethernet, DisplayPort, HDMI, D-Sub, USB 3.2 Gen 2 ports, SATA 6 Gbps, Addressable Gen 2 headers, and Aura Sync.

Key Features

• Intel LGA 1700 socket: Ready for 12th Gen Intel processors.
• Comprehensive cooling: Includes VRM heatsink, PCH heatsink, and Fan Xpert 2+.
• Ultrafast connectivity: Features a 32Gbps M.2 slot, Intel 1 Gb Ethernet, and USB 3.2 Gen 2 ports.
• Aura Sync RGB: Onboard addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware.
• ASUS Control Center Express (ACCE): Simplifies IT endpoint management.

ASUS Prime Series

ASUS Prime motherboards are expertly engineered to unleash the full potential of 12th Generation Intel processors. With robust power design, comprehensive cooling solutions, and intelligent tuning options, the Prime H610 motherboard provides a range of performance tuning options via intuitive software and firmware features.

ASUS Corporate Stable Model (CSM)

The ASUS Corporate Stable Model (CSM) program is designed for stable and reliable motherboards. It includes:

• Up to 36-month product lifecycle support.
• 6-month end-of-life notice to prepare for product transitions.
• ASUS Control Center Express: Server-grade IT management software included with every purchase.

Note: Lifecycle support and program offerings may vary by region. Please consult your local sales representative for more information.

ASUS Control Center Express

ASUS Control Center Express is an integrated IT monitoring and management software designed to:

• Deploy faster.
• Simplify IT operations.
• Improve productivity with comprehensive control and user-friendly functions.

Compatible with over 100 ASUS motherboards, it provides a high-quality, TCO-optimized solution for business needs.

Flexibility and Customization

• Comprehensive controls: The Prime H610 motherboard offers flexible tools to tune every aspect of your system, enabling performance tweaks to maximize productivity.
• Customization options: Features intuitive RGB lighting controls and exclusive codecs for pristine audio quality, allowing you to create a uniquely personal system look.

UEFI BIOS

The renowned ASUS UEFI BIOS provides:

• Simplified options for PC DIY beginners.
• Comprehensive features for seasoned users to configure, tweak, and tune systems with ease.

Cooling and Performance

• Cooling: Engineered with multiple onboard heatsinks and hybrid fan headers to ensure the system stays cool and stable under intense workloads.
• Performance: Built to handle the additional cores and increased bandwidth of 12th Generation Intel processors, ensuring stable power, intuitive cooling, and flexible transfer options for daily productivity.

Technical Specifications

Motherboard Type

• Desktop

Form Factor

• Micro ATX

Socket

• Intel 1700

Chipset

• Intel H610

CPU Support

• Click here for CPU support

RAM

• Technology: DDR4 (Dual Channel)
• Slots: 2 x DIMM
• Speeds: Up to 3200 MHz
• Maximum Memory: 64GB

Graphics

• Integrated Graphics (specifications may vary between CPU types)
• Ports:
  • 1 x VGA
  • 1 x HDMI
  • 1 x DisplayPort

PCI/PCI Express

• 1 x PCIe 4.0 x16 slot
• 1 x PCIe 3.0 x1 slot

Storage

• 4 x SATA III
• 2 x M.2 slots (2242/2260/2280) - PCIe

LAN

• Intel 1 Gb Ethernet

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports

• 2 x USB 3.2 Gen2 Type-A (at back)
• 2 x USB 3.2 Gen1 Type-A (mid-board)
• 7 x USB 2.0 (4 at back, 3 mid-board)

Back Panel I/O Ports

• 2 x USB 3.2 Gen1 Type-A
• 4 x USB 2.0
• 1 x DisplayPort
• 1 x D-Sub
• 1 x HDMI
• 1 x V-M.2 slot (Key E)
• 1 x Intel 1Gb Ethernet
• 3 x Audio jacks
• 1 x PS/2 Keyboard (purple)
• 1 x PS/2 Mouse (green)

Internal I/O Connectors

• 1 x 4-pin CPU Fan
• 2 x 4-pin Chassis Fan
• 1 x 24-pin Main
• 1 x 8-pin +12V
• 2 x M.2 (Key M)
• 4 x SATA 6Gb/s
• 1 x USB 3.2 Gen1
• 2 x USB 2.0
• 3 x Addressable Gen2
• 2 x AURA RGB
• 1 x Clear CMOS
• 1 x Front Panel Audio
• 1 x COM Port
• 1 x S/PDIF Out
• 1 x Speaker
• 1 x SPI TPM (14-1pin)
• 1 x 10-1 pin System Panel

Accessories

• 2 x SATA 6Gb/s cables
• 1 x I/O Shield
• 1 x M.2 SSD screw package
• 1 x Support DVD
• 1 x User guide
• 1 x ACC Express Activation Key Card

Package Information

• Type: Retail
• Weight: 1.1000 kg

This motherboard is the perfect choice for those seeking performance, flexibility, and robust features for their 12th Generation Intel processor setups.
