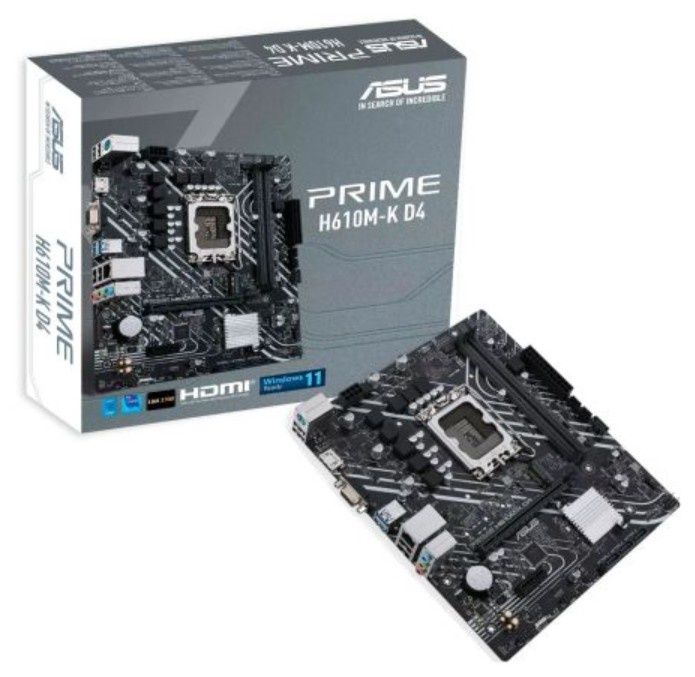

Asus PRIME H610M-K D4, Intel H610, 1700, Micro ATX, 2 DDR4, VGA, HDMI, PCIe4, 1x M.2

Key Features

• Intel® LGA 1700 socket: Ready for 12th Gen Intel® processors.
• Comprehensive cooling: Equipped with a PCH heatsink and Fan Xpert for optimal thermal performance.
• Ultrafast connectivity: Includes a 32Gbps M.2 slot, Realtek 1 Gb Ethernet, and USB 3.2 Gen 1 support.
• 5X Protection III: Multiple hardware safeguards ensure all-round system protection.

Overview

The ASUS Prime series motherboards are expertly engineered to unlock the full potential of 12th Generation Intel processors. With a robust power design, comprehensive cooling solutions, and intelligent tuning options, the Prime H610 offers a range of performance tuning possibilities through intuitive software and firmware features.

Flexibility

The ASUS Prime series provides comprehensive controls, forming the foundation for system tuning. The Prime H610 motherboard includes flexible tools to fine-tune every aspect of your system, enabling performance adjustments to suit your workflow and maximize productivity.

UEFI BIOS

The renowned ASUS UEFI BIOS offers everything you need to configure, tweak, and tune your system. It features intelligently simplified options for PC DIY beginners and comprehensive features for seasoned builders.

Cooling

The Prime H610 series is designed with a variety of hybrid fan headers, ensuring your system remains cool and stable even under intense workloads.

Performance

Built to handle the additional cores and increased bandwidth of 12th Generation Intel processors, the Prime H610 series delivers all the essentials to boost daily productivity. With stable power, intuitive cooling, and flexible transfer options, your system is always ready for action.

Customization

The Prime H610 series enhances your experience with exclusive codecs for pristine audio quality and customization options that allow you to create a unique, personal look for your system.

Technical Specifications

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: Intel 1700
• Chipset: Intel H610
• CPU Support: Click here for CPU support
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 2 x DIMM
• RAM Speeds: 3200/3000/2933/2800/2666/2400/2133 MHz
• Maximum Memory: 64GB

Graphics

• Integrated Graphics: Specifications vary depending on CPU type.
• Graphics Ports:
  • 1 x VGA
  • 1 x HDMI

Expansion Slots

• 1 x PCIe 4.0 x16
• 1 x PCIe 3.0 x1

Storage

• 4 x SATA III
• 1 x M.2 (2242/2260/2280) - SATA & PCIe

Connectivity

• LAN: Realtek 1 Gb Ethernet
• USB Ports Supported:
  • 4 x USB 3.2 Gen1 Type-A (2 at back, 2 mid-board)
  • 6 x USB 2.0 (4 at back, 2 mid-board)
• Back Panel I/O Ports:
  • 2 x USB 3.2 Gen1 Type-A
  • 4 x USB 2.0
  • 1 x D-Sub
  • 1 x HDMI
  • 1 x Realtek 1 Gb Ethernet
  • 3 x Audio jacks
  • 1 x PS/2 Keyboard/Mouse combo

Internal I/O Connectors

• 1 x 4-pin CPU Fan
• 1 x 4-pin Chassis Fan
• 1 x 24-pin Main
• 1 x 8-pin +12V
• 1 x M.2 (Key M)
• 4 x SATA 6Gb/s ports
• 1 x USB 3.2 Gen1
• 1 x USB 2.0
• 1 x RGB
• 1 x Clear CMOS
• 1 x COM Port
• 1 x Front Panel Audio
• 1 x S/PDIF Out
• 1 x Speaker
• 1 x SPI TPM (14-1 pin)
• 1 x 10-1 pin System Panel

Accessories

• 2 x SATA 6Gb/s cables
• 1 x I/O Shield
• 1 x M.2 Anchor
• 1 x Support DVD
• 1 x User Guide

Additional Information

• Package Type: Retail
• Package Weight: 0.8540 kg

For more details, please visit the official product page.
