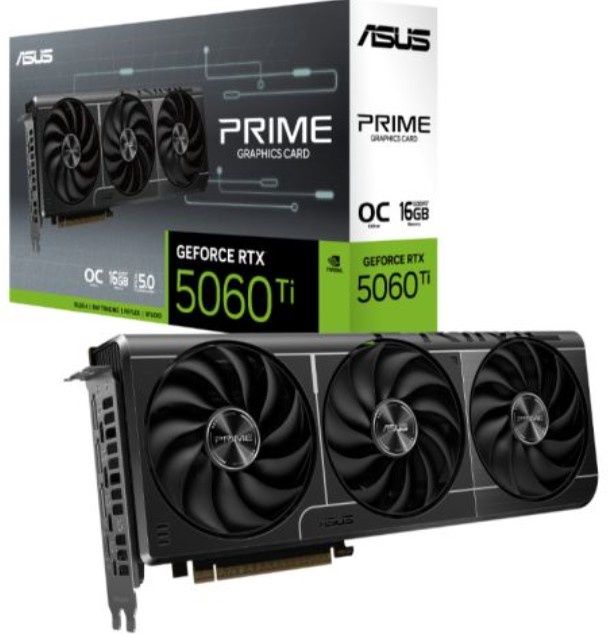

Asus PRIME RTX5060 Ti OC, PCIe5, 16GB DDR7, HDMI, 3 DP, 2647MHz Clock, Overclocked, Compact SFF-Ready

Primed for Power

Experience primal performance with the Prime GeForce RTX 5060 Ti. This SFF-Ready Enthusiast GeForce Card features a 2.5-slot design for expansive compatibility, complemented by a triple-fan setup that ensures supreme airflow and cooling.

Key Features

• AI Performance: 772 AI TOPS
• SFF-Ready 2.5 Slot Design: Compatible with small-form-factor builds
• Axial-Tech Fans: Longer blades improve airflow and dispersion
• Dual-Ball Fan Bearings: Up to twice the lifespan of sleeve bearings
• Dual BIOS: Toggle between Performance or Quiet modes
• GPU Tweak III: Ultimate GPU tuning utility

Build Small. Play Big.

Pack high performance into a smaller footprint with this SFF-Ready Enthusiast GeForce card. Ensure compatibility by selecting cases designed for SFF-Ready cards to streamline your PC build.

Cooling Innovations

• 2.5-slot Design:
  The Prime RTX 5060 Ti features a carefully arranged layout for the shroud, heatsink, and heat pipes. The three Axial-tech fans leverage chassis side-panel ventilation to deliver optimal thermal performance.

• Axial-tech Upgrades:
  Three Axial-tech fans feature a smaller hub for longer blades and a barrier ring to increase downward air pressure. This results in lower temperatures, less noise, and higher performance.

• 0dB Technology:
  Fans stop when GPU temperatures are below 50°C, enabling silent operation during light tasks or less demanding games. Fans restart at 55°C, balancing performance and acoustics.

• Dual Ball Fan Bearings:
  These bearings provide durability and last twice as long as sleeve-bearing designs.

• Vapor Chamber:
  A vapor chamber and heatsink efficiently absorb heat, ensuring premium performance during intensive tasks.

• Vented Backplate:
  Large backplate vents enhance heat dissipation, ensuring cooler temperatures, boosting performance, longevity, and stability.

• MaxContact Design:
  ASUS's MaxContact manufacturing process expands the heat spreader's surface area by 5%, improving temperatures by up to 2°C.

Unmatched Reliability

• ASUS GPU Guard:
  Reduces the risk of cracks by securing all four corners with adhesive.

• Protective Backplate:
  Reinforces the PCB with a metal backplate for added rigidity and protection.

• Stainless Steel Bracket:
  Made from grade 304 stainless steel for enhanced strength and corrosion resistance.

Engineering Excellence

• Dual BIOS:

  • Performance Mode: Keeps the card running cool with higher fan speeds.
  • Quiet Mode: Offers less aggressive fan curves for quieter operation at moderate temperatures.

• Auto-Extreme Technology:
  This automated manufacturing process reduces thermal strain on components, lowers environmental impact, and ensures greater reliability by completing all soldering in a single pass.

Software and Tools

• GPU Tweak III:
  Tune critical parameters like GPU core clocks, memory frequency, and voltage settings. Monitor everything in real-time with a customizable on-screen display. Advanced fan control is also included.

• One Month of Free Adobe Creative Cloud:
  Gain access to Adobe apps and Substance 3D with complimentary membership, perfect for creators.

The Ultimate in Ray Tracing and AI

RTX is the most advanced platform for ray tracing and neural rendering technologies. With over 700 supported games and applications, RTX delivers realistic graphics and fast performance with cutting-edge AI features like DLSS Multi Frame Generation.

NVIDIA DLSS 4

Boost FPS, reduce latency, and improve image quality with DLSS 4. Powered by fifth-generation Tensor Cores, DLSS enhances gaming with AI-driven technologies.

Full Ray Tracing with Neural Rendering

Experience cinematic visuals at unprecedented speeds with fourth-gen RT Cores and fifth-gen Tensor Cores.

NVIDIA Reflex 2

Optimize responsiveness for faster target acquisition, quicker reactions, and improved aim precision in competitive games. Reflex 2 introduces Frame Warp to further reduce latency.

For Creators and Gamers

• NVIDIA Studio:
  Unlock transformative performance in video editing, 3D rendering, and graphic design. Enjoy RTX accelerations, Studio drivers, and exclusive tools for AI-assisted creative workflows.

• NVIDIA Broadcast:
  Enhance livestreams, voice chats, and video calls with AI-powered voice and video enhancements.

• RTX Video Super Resolution:
  Transform videos in Chrome, Edge, or Firefox with AI sharpening and HDR clarity up to 4K.

• RTX Remix:
  Modders can easily capture game assets, enhance materials, and create stunning RTX remasters.

• Game Ready and Studio Drivers:
  Enjoy finely tuned drivers for maximum performance and reliability.

Specifications

• Chipset Manufacturer: Nvidia
• Interface: PCI Express 5.0
• Graphics Chipset: Nvidia RTX 5060 Ti
• Memory Size: 16GB DDR7
• Engine Clock:
  • OC Mode: 2647MHz
  • Default Mode: 2617MHz (Boost Clock)
• Outputs:
  • 1 x HDMI 2.1b
  • 3 x DisplayPort 2.1b
• Resolution: Digital Max Resolution 7680 x 4320
• Cooling Features: Axial-Tech Fans, Dual-ball Fan Bearings, 0dB Technology, MaxContact Design, Vented Backplate
• PSU Requirements: 550W or greater
• Dimensions: 304 x 120 x 50 mm
• Slot Size: 2.5 Slot
• Accessories Included:
  • Speedsetup Manual
  • ASUS Velcro Hook & Loop
  • Thank You Card

Why Choose the Prime RTX 5060 Ti?

With cutting-edge AI features, unmatched cooling technology, and a compact design, the Prime RTX 5060 Ti is the ultimate choice for gamers and creators alike.
