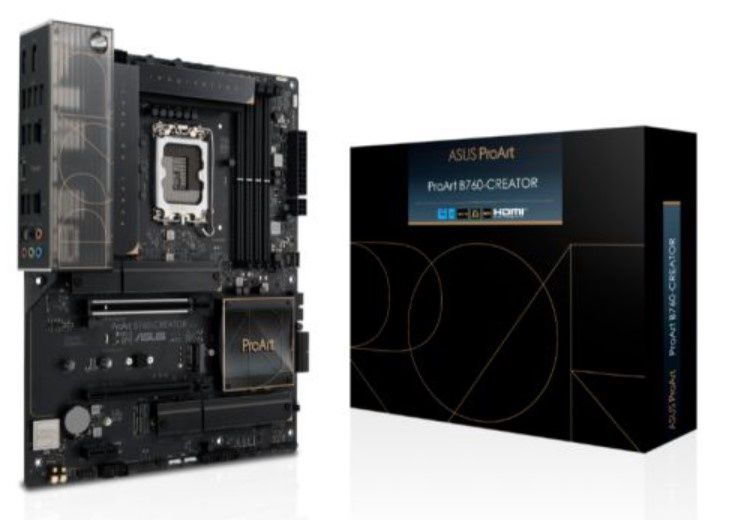

Asus PROART B760-CREATOR, Intel B760, 1700, ATX, 4 DDR5, HDMI, DP, 2.5G LAN, PCIe5, 3x M.2, Creator Hub

Overview

ProArt B760-Creator is an advanced motherboard tailored for demanding content creation tasks such as virtual production, 3D rendering, and 4K/8K video editing.

Key Features

• Supports 14th, 13th & 12th Gen Intel Core processors with robust power delivery and cooling design.
• Comprehensive connectivity, including:
  • Three M.2 slots
  • 2.5 Gb and 1 Gb Ethernet
  • USB 3.2 Gen 2x2 Type-C front-panel connector with 60W Quick Charge 4+
  • Thunderbolt 4 header

Memory

• DDR5 memory support with speeds up to 7800+(OC).
• AEMP II (ASUS Enhanced Memory Profile II) optimizes memory performance and stability for PMIC-restricted modules.

Graphics and Expansion

• PCIe 5.0 for graphics cards offers double the data speed of PCIe 4.0, improved signal integrity, and backward compatibility.
• Integrated Graphics support varies based on CPU type.

Storage

• Three onboard M.2 slots:
  • Two PCIe 4.0-ready slots with speeds up to 64 Gbps.
  • One PCIe 3.0 slot with speeds up to 32 Gbps.
• RAID support with Intel Rapid Storage Technology (SATA RAID 0/1/5/10).

Connectivity

USB

• Rear Ports:
  • 1 x USB 3.2 Gen2 Type-C
  • 4 x USB 3.2 Gen1 Type-A
  • 4 x USB 2.0
• Front Ports:
  • USB 3.2 Gen2x2 Type-C connector with 60W PD/QC4+
  • USB 3.2 Gen1 header supporting 2 USB 3.2 Gen1 ports
  • USB 2.0 headers supporting 4 USB 2.0 ports

Networking

• Dual Ethernet:
  • 2.5 Gb and 1 Gb Ethernet ports for simultaneous fast data transfers, internet access, and NAS connectivity.

Thunderbolt

• Thunderbolt 4 support via onboard header with speeds up to 40 Gbps, daisy-chain function, and support for up to 8K display resolution.

Cooling

• ASUS Fan Xpert 4 software provides control over air and liquid cooling with Auto-Tuning and Extreme Quiet modes.

Audio

• Two-Way AI Noise Cancelation reduces background noise for clear communication during calls and video conferences.

Power Design

• 12+1 teamed power stages rated for 50 amps, combining MOSFETs and drivers for efficient power delivery.
• Superior alloy chokes and capacitors resist extreme temperatures for enhanced performance.
• ProCool power connectors reduce hotspots and prevent connector failure.

Security and Remote Management

• Advanced security features:
  • USB port management (enable/disable or set to Read-Only).
  • Software blacklist to block high-risk applications.
  • Remote disabling of Registry Editor to prevent unauthorized system changes.

ProArt Creator Hub

• Personalized settings:
  • Monitor system status.
  • Switch fan profiles.
  • Optimize workflow with task grouping (launch up to 8 apps simultaneously).
• Network optimization: CreationFirst offers five modes to enhance bandwidth efficiency.

Trusted Stability

ProArt B760-Creator is rigorously tested for superior quality, stability, and compatibility to ensure long-term reliability.

Reliability Testing:

• 24/7 operation
• 45°C temperature endurance
• 168-hour durability test
• 80% relative humidity tolerance

Specifications

Form Factor

• ATX

Socket

• Intel 1700

Chipset

• Intel B760

Maximum Memory

• 192GB DDR5

Graphics Ports

• 1 x HDMI
• 1 x DisplayPort

PCI/PCI Express

• 1 x PCIe 5.0/4.0/3.0 x16
• 1 x PCIe 4.0 x16 (supports x4 mode)
• 1 x PCIe 3.0 x1

Storage

• 4 x SATA III
• 3 x M.2 slots (PCIe 4.0 & PCIe 3.0)

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC

Accessories

• 2 x SATA 6Gb/s cables
• 2 x M.2 rubber packages
• 1 x Screw package for M.2 Key E
• 1 x ProArt ruler
• 1 x Q-connector
• 1 x ACC Express Activation Key Card
• 1 x User guide

Package

• Retail packaging
• Weight: 2.1000 kg

For CPU support and additional details, click here.
