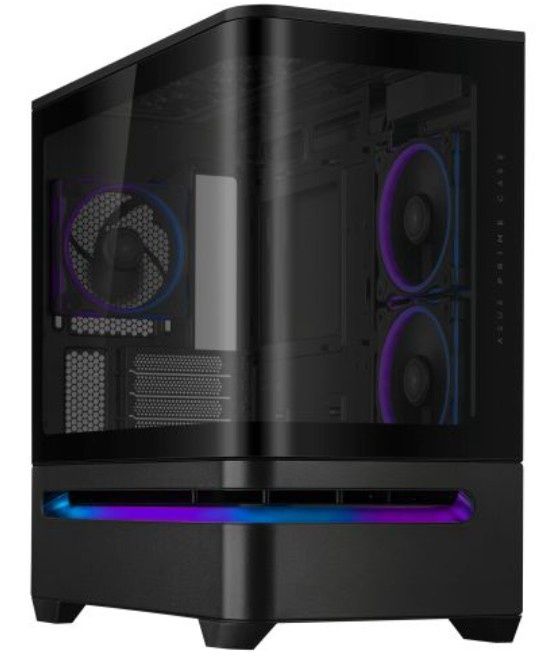

Asus Prime AP202 ARGB Gaming Case w/ Curved Glass Panel, Micro ATX, 3x ARGB Fans, ARGB Light Band, 420mm GPU Support, USB-C 20Gbps, Black

Overview

The ASUS Prime AP202 ARGB is a versatile panoramic mATX chassis designed to showcase system components with style. Its curved tempered glass panel extends seamlessly from the front to the side, offering spectacular views of components from almost any angle. A patented slot vent ensures optimal cooling for the graphics card, while the integrated ARGB light band works seamlessly with Aura Sync for customizable lighting effects.

Key Features

• Curved Tempered Glass Panel

  • Extends across two sides of the case, offering panoramic views of internal components.
  • Manufactured with a five-stage process for superior strength and durability, meeting aerospace standards.
  • Elevates the DIY experience with reliable protection and immersive aesthetics.

• Easy-Detach Rail

  • The curved glass panel features an easy-detach rail for safe and simple removal and reattachment.

• Patented Slot Vent

  • Innovative airflow design ensures ideal thermal performance, focusing on cooling mission-critical components like the graphics card.

• Ambient Lighting

  • Integrated ARGB light band near the bottom of the case provides spectacular lighting effects.
  • Aura Sync compatibility lets you customize colors to match your unique build.

• Three Pre-Installed ARGB Fans

  • Includes three 120mm ARGB fans with extra-thick 28mm frames for optimal airflow.
  • Features 20 addressable RGB LEDs per fan with dual lighting design along the side of the frame.

• High-Speed USB Type-C

  • The top I/O panel includes a USB Type-C port capable of transfer speeds up to 20Gbps.

• Optimized Cable Management

  • A 30mm compartment behind the motherboard keeps cables tidy and organized.

• Broad Compatibility

  • Supports:
    • Graphics cards up to 420mm in length.
    • Radiators up to 360mm in length.
    • PSU length up to 200mm.
    • CPU air coolers up to 175mm tall.
  • Offers space for up to nine 120mm fans.

Technical Specifications

• Form Factor: Micro ATX
• Motherboard Support: Micro ATX, Mini ITX
• Connectors / Controls:
  • 1 x USB 3.2 Gen 2x2 Type-C
  • 2 x USB 3.2 Gen1 Type-A
  • 1 x Headphone / Microphone
• Drive Bays: 2 x 2.5"/3.5" Combo Bay
• Expansion Slots: 4 x Expansion Slots

Cooling System

• Included Fans:
  • Side: 2 x 120mm ARGB Fans
  • Rear: 1 x 120mm ARGB Fan
• Fan Mounts:
  • Top: 3 x 120mm / 2 x 140mm
  • Rear: 1 x 120mm
  • Side: 2 x 120mm
• Radiator Support:
  • Top: Up to 360mm

Compatibility

• Max GPU Length: 420mm
• Max CPU Cooler Height: 175mm
• Max PSU Length: 200mm
• Cable Management Space: 30mm

Dimensions & Weight

• Weight: 9 kg
• Dimensions: 441 x 236 x 460 mm

Additional Features

• Curved glass panel
• Integrated ARGB light band
• Patented airflow design
• Patented slot vent
• Easy-detach rail
• Aura Sync compatibility
• Removable dust filters (top and bottom)

Package Details

• Package Weight: 6.5 kg
• Colour: Black
