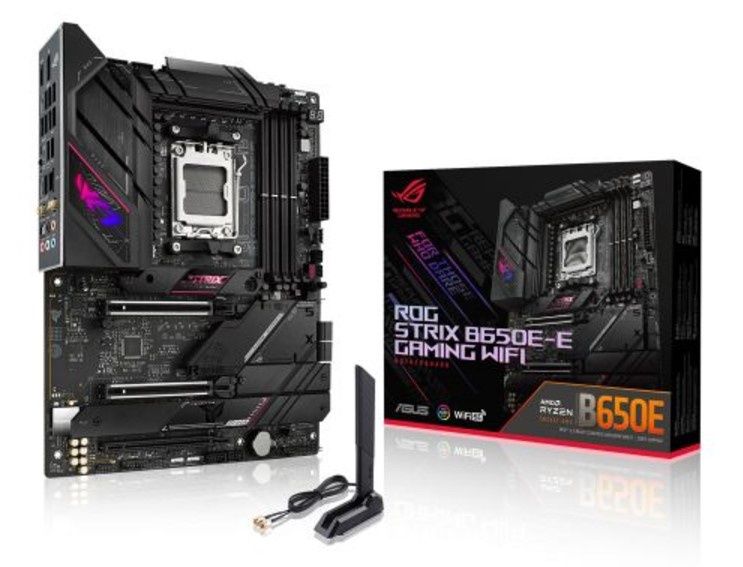

Asus ROG STRIX B650E-E GAMING WIFI, AMD B650, AM5, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, 4x M.2

Take Your Build to the Next Level

The Strix B650E-E is designed to propel your gaming rig into the future with PCIe 5.0 and DDR5 support. Innovative Q-Design features ensure an effortless system setup, while its robust power solution, hefty heatsinks, and exclusive overclocking technologies make the most of Ryzen 7000 processors.

Key Features at a Glance

• Power Stages: Robust 16-stage power solution rated to 70A per stage.
• Overclocking Technologies: Dynamic clocking maximizes Ryzen gaming and compute performance.
• PCIe 5.0: Both x16 slots and two onboard M.2 slots are PCIe Gen 5-ready.
• DDR5: Supports 6400 MT/s+, AMD EXPO, DRAM IC profiles, and AEMP.
• WiFi 6E: Unlocks faster-than-Gigabit speeds with access to the low-interference 6 GHz band.
• DIY Friendly: Easy GPU and SSD installation, along with simple BIOS resets and updates.

DIY-Friendly Enhancements

• PCIe® Slot Q-Release: A physical button unlocks the first PCIe slot’s security latch with one press, simplifying GPU upgrades.
• M.2 Q-Latch: Tool-free installation or removal of M.2 SSDs with a simple locking mechanism.
• Clear CMOS: Quickly reset BIOS settings to factory default or reboot the PC.
• BIOS Flashback Button: Update BIOS safely and easily, even without memory or a CPU installed.
• Q-Code LED Panel: Displays 2-digit diagnostic codes for troubleshooting hardware and boot issues.

All-Round Performance

The ROG Strix B650E-E offers unparalleled performance with a powerful power solution, efficient VRM heatsinks, and incredible throughput:

• PCIe 5.0: Abundant support for the fastest SSDs and GPUs, with Gen 5-ready x16 slots and M.2 slots delivering speeds up to 16 GB/s.
• Dynamic OC Switcher: Automatically switches between AMD Precision Boost Overdrive (PBO) and your preferred overclocking settings for optimal performance.
• Core Flex: Allows creative control over current, power, and thermals to push limits farther.
• PBO Enhancement: Aggressively tuned parameters ramp up performance using the motherboard’s robust power solution.

Memory and Cooling Innovations

• DDR5 Support: Optimized for enthusiast-grade kits with AMD EXPO profiles and advanced UEFI settings.
• AEMP: Automatically detects memory chips and applies optimized profiles for higher frequencies and tighter timings.
• VRM Heatsink Array: Thick heatsinks with airflow channels ensure efficient heat dissipation.
• M.2 Heatsinks: Keep onboard NVMe SSDs at optimal temperatures for consistent performance.
• Fan Headers: Includes 4-pin headers for CPU coolers and chassis fans, plus a dedicated AIO pump header.

Leading Connectivity

• WiFi 6E: Provides ultrafast throughput and better performance in dense wireless environments.
• Intel 2.5G Ethernet: Ensures low-latency gaming, fast file transfers, and high-resolution streaming.
• SupremeFX Audio: Features the ALC4080 codec for high-resolution playback and an integrated Savitech amplifier for premium sound quality.

Style and Compatibility

• Customizable RGB Lighting: ASUS Aura technology offers full lighting control and syncs effects across compatible devices.
• Bold Design: A black PCB with customizable RGB and premium aesthetics matches the ROG Strix ecosystem.
• Cooler Compatibility: Backward compatible with AM4 platform coolers, including ASUS and ROG AIO solutions.

Exclusive Software Utilities

• Two-Way AI Noise Cancelation: Reduces background noise for clear communication.
• AI Networking: GAMEFIRST VI optimizes real-time bandwidth allocation.
• UEFI BIOS: Intuitive options for both beginners and advanced users.
• AI Suite 3: Fine-tune performance, cooling, and efficiency via a simple dashboard.
• Sonic Studio III: Offers virtual surround sound and EQ options for immersive audio.
• DTS Sound Unbound: Leverages Windows Sonic spatial technology for 3D audio immersion.
• AIDA64: Includes a 60-day subscription for system diagnostics and performance monitoring.
• Armoury Crate: Centralized control for RGB lighting, fan tuning, and more.

Specifications

• Motherboard Type: Desktop
• Form Factor: ATX
• Socket: AMD AM5
• Chipset: AMD B650
• RAM Technology: DDR5, Dual Channel, Up to 192GB
• Graphics Ports: 1 x HDMI, 1 x DisplayPort
• PCI/PCI Express: 2 x PCIe 5.0 x16, 1 x PCIe 4.0 x16
• Storage: 4 x SATA III, 4 x M.2 (PCIe)
• Wireless: Wi-Fi 6E, Bluetooth 5.2
• LAN: 2.5GB Ethernet
• Audio: ROG SupremeFX 7.1 Surround Sound
• USB Ports: Multiple USB 3.2 Gen2x2, Gen2, and Gen1 ports, plus USB 2.0 support.

Included Accessories

• 2 x SATA 6Gb/s cables
• ASUS Wi-Fi moving antennas
• M.2 Q-Latch package
• ROG keychain, stickers, and thank-you card
• Thermal pad for M.2
• Cable ties pack

Package Details

• Package Type: Retail
• Package Weight: 2.5 kg

Elevate your gaming experience with the ROG Strix B650E-E, where power, performance, and personalization come together seamlessly.
