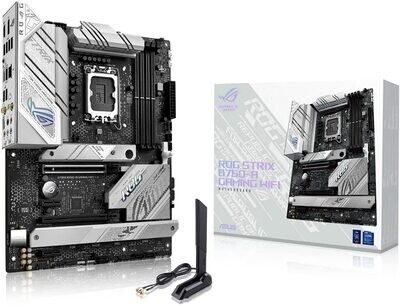

Asus ROG STRIX B760-A GAMING WIFI, Intel B760, 1700, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, 3x M.2, RGB

Vibrant Intel Platform Features

Just like its formidable DDR4 sibling, the ROG Strix B760-A Gaming WiFi offers a vibrant take on the latest Intel platform. It includes PCIe 5.0, USB 3.2 Gen 2x2, and cyber-inspired ROG motifs showcased on a high-contrast backdrop. This variant features DDR5, delivering even more bandwidth for games and apps.

Key Features

• DDR5 Memory: 7800+ MT/s, AEMP II, XMP
• PCIe 5.0: x1 PCIe 5.0 x16 slot
• USB 3.2 Gen 2x2: Type-C rear I/O port
• 12 + 1 Power Stages
• Wi-Fi 6E
• DIY-Friendly Design

DIY-Friendly Features

PCIe Slot Q-Release

A physical button unlocks the first PCIe slot’s security latch with one tap, simplifying the process of detaching a PCIe card from the motherboard when upgrading to a new GPU or compatible device.

M.2 Q-Latch

This innovative Q-Latch allows easy installation or removal of an SSD from an M.2 slot. The simple locking mechanism eliminates the need for a traditional screw.

BIOS Flashback™

BIOS Flashback™ offers a safe and simple way to update BIOS. Simply drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without memory or a CPU installed.

Q-LED

Four onboard LEDs indicate power status and identify issues with the CPU, memory, graphics card, or boot device for quick diagnostics.

All-Round Performance

The Strix B760-A Gaming WiFi pairs bold aesthetics with robust power delivery and thermal arrays. Enjoy a fully-fledged gaming experience and beyond with this high-performance motherboard.

Leading Connectivity

Stay connected with high-speed wireless and wired networking, a variety of USB I/O options, and SupremeFX audio for crystal-clear sound through speakers or headphones, enhancing immersion in every game.

Play In Style

Bold aesthetics and Aura Sync RGB controls allow the ROG Strix B760-A to shine in any build, ensuring your setup stands out.

Software Utilities

A myriad of ROG-exclusive tools puts advanced system tuning and configuration at your fingertips.

Technical Specifications

Motherboard Details

• Type: Desktop
• Form Factor: ATX
• Socket: Intel 1700
• Chipset: Intel B760

CPU Support

Click here for CPU support.

Memory

• Technology: DDR5 (Dual Channel)
• Slots: 4 x DIMM
• Speeds: Up to 7800+ (OC)
• Maximum Memory: 128GB

Graphics

• Integrated Graphics: Specifications may vary between CPU types.
• Ports:
  • 1 x HDMI
  • 1 x DisplayPort

PCI/PCI Express

• 1 x PCIe 5.0 x16
• 1 x PCIe 3.0 x16 (supports x4 mode)
• 2 x PCIe 3.0 x1

Storage

• 4 x SATA III
• 3 x M.2 (PCIe slots supporting various sizes)

RAID

Supports Intel Rapid Storage Technology with SATA RAID 0/1/5/10.

Wireless

• Wi-Fi 6E: 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax), supports 2.4/5/6GHz frequency band
• Bluetooth: v5.3

LAN

• 2.5Gb LAN

Audio

• ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

USB Ports Supported

• Back Panel:
  • 1 x USB 3.2 Gen2x2 Type-C
  • 1 x USB 3.2 Gen2 Type-A
  • 1 x USB 3.2 Gen1 Type-C
  • 4 x USB 3.2 Gen1 Type-A
  • 7 x USB 2.0
• Front Panel:
  • 1 x USB 3.2 Gen2 Type-C Header

Back Panel I/O Ports

• 1 x USB 3.2 Gen2x2 Type-C
• 1 x USB 3.2 Gen2 Type-A
• 3 x USB 3.2 Gen1 (2 Type-A, 1 Type-C)
• 4 x USB 2.0
• 1 x DisplayPort
• 1 x HDMI
• 1 x Wi-Fi Module
• 1 x Intel 2.5Gb Ethernet
• 5 x Audio jacks
• 1 x BIOS FlashBack button

Internal I/O Connectors

• 1 x 4-pin CPU Fan
• 1 x 4-pin CPU OPT Fan
• 1 x 4-pin AIO Pump
• 4 x 4-pin Chassis Fan
• 3 x M.2 (Key M)
• 4 x SATA 6Gb/s
• 1 x USB 3.2 Gen2 Type-C
• 1 x USB 3.2 Gen1
• 1 x USB 2.0

Additional Features

• 3 x Addressable Gen2
• Aura RGB
• Clear CMOS
• Front Panel Audio
• S/PDIF Out
• Thermal Sensor
• Thunderbolt (USB4)

Accessories Included

• 2 x SATA 6Gb/s cables
• 1 x Thermal pad for M.2
• 1 x ASUS Wi-Fi moving antennas
• 1 x Cable ties package
• 1 x M.2 Q-Latch package
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 1 x ROG Strix thank you card
• 1 x M.2 Rubber Packages
• 1 x User guide

Package Details

• Type: Retail
• Weight: 2.1000 kg
