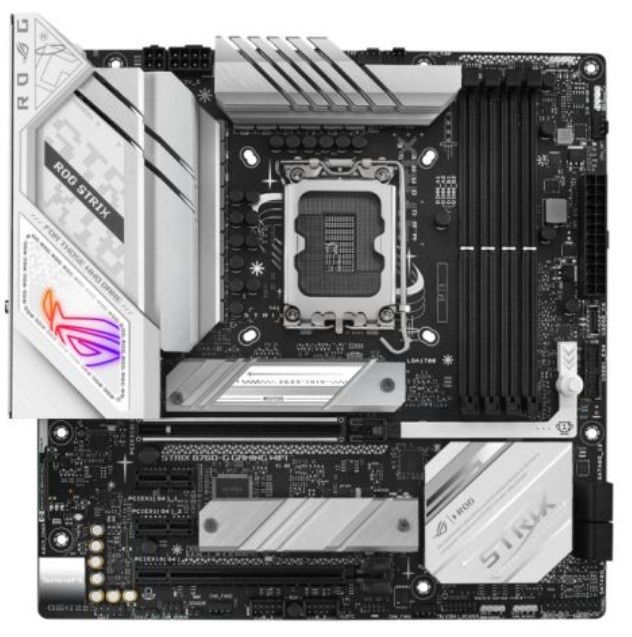

Asus ROG STRIX B760-G GAMING WIFI, Intel B760, 1700, Micro ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, 2x M.2

Midsize Overperformer

The ROG Strix B760-G Gaming Wi-Fi is a monochrome powerhouse, designed to propel your next mATX rig. It offers the same high-bandwidth connectivity as its reliable counterpart but stands out with lightning-fast DDR5 memory and buffed power stages, making it the perfect match for high-speed Intel 13th Gen processors. Its white and silver accents pair seamlessly with the ASUS AP201, while retro insignias add a touch of classic Strix style.

Key Features

• DDR5 Memory: 7800+ MT/s, AEMP II, XMP
• PCIe 5.0: x1 PCIe 5.0 x16 slot
• USB 3.2 Gen 2x2 Type-C: Rear I/O port
• 12 + 1 Power Stages
• WiFi 6E
• DIY-Friendly Design

All-Round Performance

A finely tuned power solution and blistering-fast DDR5 memory give the ROG Strix B760-G an edge over its compact peers. Optimized heatsinks are strategically placed over the VRM and M.2 slots, ensuring maximum performance even in tight spaces.

Leading Connectivity

The Strix B760-G is well-equipped with:

• High-speed wireless and wired networking
• A wide array of USB I/O ports
• SupremeFX audio for crystal-clear sound, enhancing your gaming immersion.

Play in Style

Featuring a black PCB, bare heatsinks, and white accents, this motherboard complements almost any component or peripheral. Additionally, its customizable RGB lighting allows for a personalized gaming setup that reflects your style.

Software Utilities

Enjoy advanced system tuning and configuration with a suite of ROG-exclusive tools at your fingertips.

Specifications

General

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: Intel 1700
• Chipset: Intel B760

CPU and Memory

• CPU Support: Click here for compatibility
• RAM Technology: DDR5 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 7800+ (OC)
• Maximum Memory: 192GB

Graphics

• Integrated Graphics: Specifications vary by CPU type
• Graphics Ports:
  • 1 x HDMI
  • 1 x DisplayPort

Expansion Slots

• PCI/PCI Express:
  • 1 x PCIe 5.0 x16
  • 1 x PCIe 4.0 x16 (supports x4 mode)
  • 2 x PCIe 4.0 x1

Storage

• SATA & M.2:
  • 4 x SATA III
  • 2 x M.2 (2242/2260/2280) - PCIe

Networking

• Wi-Fi: Wi-Fi 6E (2x2, supports 2.4/5/6GHz)
• Bluetooth: v5.3
• LAN: 2.5Gb Ethernet

Audio

• ROG SupremeFX: 7.1-Channel High Definition Audio CODEC S1220A

USB Ports

• Rear Panel USB:
  • 1 x USB 3.2 Gen2x2 Type-C
  • 1 x USB 3.2 Gen2 Type-A
  • 3 x USB 3.2 Gen1 (2 Type-A, 1 Type-C)
  • 4 x USB 2.0
• Internal USB:
  • 1 x USB 3.2 Gen2 Type-C Header
  • 1 x USB 3.2 Gen1 Header
  • 2 x USB 2.0 Header

Accessories

• 2 x SATA 6Gb/s cables
• 1 x Thermal pad for M.2
• 1 x ASUS Wi-Fi moving antennas
• 1 x Cable ties pack
• 1 x Rubber package for M.2
• 1 x Q-Latch package for M.2
• 1 x ROG key chain
• 1 x ROG Strix stickers
• 1 x ROG Strix thank you card
• 1 x User manual

Package Details

• Type: Retail
• Weight: 1.7800 kg
