Asus ROG STRIX X870E-E GAMING WIFI, AMD X870E, AM5, ATX, 4 DDR5, HDMI, 2 USB4, Wi-Fi 7, 5G LAN, PD 30W, RGB, 5x M.2

Harness the Full Potential of AMD Ryzen™ 9000 Series Processors

The ROG Strix X870E-E Gaming WiFi is designed to unlock the capabilities of AMD Ryzen™ 9000 Series processors, delivering exceptional performance and connectivity.

Key Features:

• PCIe® 5.0 Support
• AI Overclocking, AI Cooling II, AI Networking II, and AEMP for streamlined setup and maximized performance.
• Dual USB4® Type-C Ports and WiFi 7 with Realtek 5Gb Ethernet for top-tier connectivity.
• Robust Heatsinks to keep M.2 drives cool under heavy loads.

This motherboard is ideal for gaming, professional applications, and advanced AI PC setups.

Power and Overclocking:

• 18+2+2 Power Stages
• Dynamic OC Switcher for optimizing CPU performance based on workload.
• Core Flex for creative control over clock, power, and thermals.
• Asynchronous Clock for next-level frequency flexibility.
• PBO Enhancement to push CPU performance with AMD Precision Boost Overdrive.

Memory:

• DDR5 Domination with AMD Extended Profiles for Overclocking (EXPO) support.
• NitroPath DRAM Technology offering enhanced frequency and slot retention force.
• AEMP for PMIC-restricted memory modules.

Supports RAM speeds up to 8400+MT/s and maximum memory of 256GB.

Cooling Innovations:

• M.2 Combo-Sink with direct-contact heat pipe for optimal temperatures.
• M.2 Backplate for peak performance in restricted airflow conditions.
• VRM Heatsink Array for handling high-performance AMD Ryzen™ 9000 Series processors.
• Dedicated CPU Fan Headers and AIO Pump Fan Header for easy cooling access.
• 4-pin Fan Headers for auto-detection of PWM or DC fans.

Connectivity Features:

• WiFi 7 offering speeds up to 4.8X faster than WiFi 6 with Multi-Link Operation (MLO).
• ASUS WiFi Q-Antenna for improved signal quality and coverage.
• Realtek 5Gb Ethernet for low-latency gaming and high-speed file transfers.
• PCIe 5.0 for next-gen graphics cards and faster M.2 storage.
• Dual USB4® Ports with up to 40Gbps bandwidth and 8K external display support.
• USB 20Gbps Type-C with PD 3.0 charging up to 30W.
• Dolby Atmos and SupremeFX for immersive audio experiences.

EZ PC DIY Features:

• PCIe Slot Q-Release Slim for easy graphics card upgrades.
• M.2 Q-Release for tool-free SSD installation.
• Q-Antenna for fast WiFi antenna attachment.
• Q-LED diagnostic lights for troubleshooting key components.
• Clear CMOS & BIOS Flashback for simple BIOS updates and resets.

BIOS and Software Utilities:

• BIOS Q-Dashboard for intuitive hardware configuration.
• UEFI BIOS offering simplified options for newcomers and advanced features for experts.
• Asus GlideX for cross-device screen sharing and control.
• HWiNFO for real-time system monitoring.
• Asus DriverHub for easy driver updates.
• AIDA64 Extreme for system diagnostics and performance benchmarks.
• Armoury Crate for centralized control of RGB lighting and fan tuning.

Outshine the Competition:

ROG Strix motherboards feature ASUS Aura technology, allowing full control of RGB lighting and synchronization across compatible devices for a unified setup.

Specifications:

• Form Factor: ATX
• Socket: AMD AM5
• Chipset: AMD X870E
• RAM Slots: 4 x DDR5 DIMM
• Maximum Memory: 256GB
• Graphics Ports: 1 x HDMI, 2 x USB4 (40Gbps) Type-C
• Storage: 5 x M.2, 4 x SATA III
• Wireless: Wi-Fi 7, Bluetooth v5.4
• LAN: Realtek 5Gb Ethernet
• Audio: ROG SupremeFX 7.1 Surround Sound

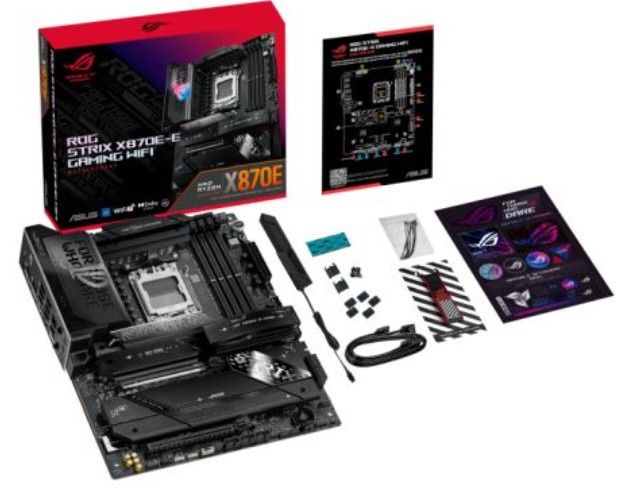

Accessories:

• 2 x SATA 6Gb/s cables
• Thermal pad for M.2 22110
• ASUS Wi-Fi moving antennas
• Cable ties pack
• M.2 Q-Latch package
• ROG key chain and stickers
• Quick start guide

Package Details:

• Type: Retail
• Weight: 1.7870 kg

With its cutting-edge features and robust design, the ROG Strix X870E-E Gaming WiFi is the ultimate motherboard for gamers, professionals, and tech enthusiasts looking to elevate their performance.
