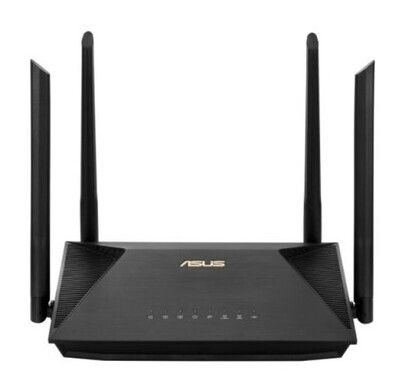

Asus (RT-AX53U) AX1800 (1201+574Mbps) Wireless Dual Band Wi-Fi 6 Router, MU-MIMO & OFDMA, AiProtection, 4-port, USB

AX1800 Dual Band WiFi 6 (802.11ax) Router
Supporting MU-MIMO and OFDMA technology, with AiProtection Classic network security powered by Trend Micro™.

Key Features

• New-Gen WiFi Standard
  WiFi 6 (802.11ax) standard supporting MU-MIMO and OFDMA technology for better efficiency and throughput.

• Connect in Your Way
  Share the internet from a 3G/4G dongle by plugging it into the USB port.

• Ultra-fast WiFi Speed
  Supports 1024-QAM for dramatically faster wireless connections. Total networking speed of up to 1800Mbps:

  • 574 Mbps on the 2.4GHz band
  • 1201 Mbps on the 5GHz band

• Increase Capacity and Efficiency
  MU-MIMO and OFDMA technologies efficiently allocate channels and communicate with multiple devices simultaneously.

• 4 Gigabit Ports
  Includes one Gigabit WAN port and three Gigabit LAN ports, offering speeds 10X faster than 100–Base T Ethernet.

• AiProtection and Parental Controls
  Keeps your network protected and allows you to set time limits for network usage on specific devices.

Get Your Home Ready for WiFi 6 (802.11ax)

The growing number of connected personal and IoT devices has increased network density, pushing the limits of current WiFi standards. The latest WiFi 6 (802.11ax) standard provides:

• Future-proof technologies
• Higher network efficiency
• Faster WiFi speeds
• Greater coverage
• Improved battery life for connected devices

Next-Gen WiFi Speed

The RT-AX53U is a 2x2 dual-band WiFi router offering:

• 80MHz bandwidth
• 1024-QAM technology
• Total networking speed of about 1800Mbps, which is 1.5X faster than 802.11ac 2x2 dual-band routers.

Built for Multi-device Households

With a revolutionary combination of OFDMA and MU-MIMO technology, the WiFi 6 (802.11ax) standard provides:

• 4X greater network capacity and efficiency in traffic-dense environments.
• OFDMA divides channels into smaller sub-channels, allowing multiple devices to transmit data simultaneously.
• Reduced latency for a smoother and more responsive WiFi experience.

Better Battery Life for Your Devices

Target Wake Time (TWT) schedules designated intervals for devices to transmit data, allowing them to sleep when not in use. This reduces power consumption by up to 7X, significantly improving battery life.

WiFi that Goes Farther

With OFDMA technology, the RT-AX53U provides:

• Increased WiFi signal range
• Better coverage by dividing channels into smaller sub-channels
• Sub-channels that travel up to 80% farther, ensuring a reliable connection throughout your home.

Protection for Your Home Network

The RT-AX53U incorporates ASUS AiProtection, powered by Trend Micro™ Smart Home Network.

• Protects all connected devices, even those without antivirus capabilities (e.g., IoT devices).
• Blocks common internet-based attacks before they reach your network.
• Instantly blocks infected devices to prevent the transmission of personal information to malicious servers.

Connectivity Options

The RT-AX53U includes:

• 1 Gigabit WAN port
• 3 Gigabit LAN ports
• 1 USB 2.0 port

This allows smart TVs, game consoles, NAS storage devices, backup internet, and more to have their own dedicated ports, making the RT-AX53U a solid digital home hub.

Robust Control and Optimization with ASUSWRT

The ASUSWRT dashboard UI enables:

• Setup, monitoring, and control of network applications in one intuitive area.
• Fast setup, multi-device detection, and flexible settings to maximize network performance.

Technical Specifications

• Type: Cable Router
• Connectivity: Wireless
• Max Wireless Transfer Rate: 1201 Mbps
• Max Wired Transfer Rate: 10/100/1000 Mbps
• Signal Rate:
  • 2.4 GHz: Up to 574 Mbps
  • 5 GHz: Up to 1201 Mbps
• Bands: Dual Band
• Interfaces:
  • 1 x RJ45 for Gigabits BaseT WAN
  • 3 x RJ45 for Gigabits BaseT LAN
  • 1 x USB
• Standards:
  • IEEE 802.11a/b/g
  • WiFi 4 (802.11n), WiFi 5 (802.11ac), WiFi 6 (802.11ax)
  • IPv4, IPv6
• Frequency: 2.4 GHz & 5 GHz
• Buttons: WPS Button, Reset Button, Power Switch
• Power Supply: AC Input: 110V~240V (50~60Hz), DC Output: 12V (max. 1.5A)
• Antennas:
  • 2 x 2.4G 2dBi Fixed External Antennas
  • 2 x 5G 2dBi Fixed External Antennas

Wireless Functions

• IPv6, MU-MIMO, UTF-8 SSID, Guest Network, WPS
• Wi-Fi MAC address filter, Wireless scheduler, Airtime fairness
• RADIUS Server, Universal beamforming, Explicit beamforming
• IGMP snooping, Modes: Access Point, Media Bridge, Repeater, Router

Security

• AiProtection and Parental Controls
• Wi-Fi Encryption: Open system, WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPA3-Personal

VPN Support

• VPN Client: L2PT, OVPN, PPTP
• VPN Server: IPSec, OVPN, PPTP
• VPN Fusion

USB Applications

• 3G/4G LTE dongle, HDD hibernation, Safely Remove disk
• Download Master, AiDisk, Media Server, Time Machine
• Samba Server, FTP Server, Shared Folder privileges

Package Contents

• RT-AX53U Router
• 1 x RJ45 Cable
• 1 x Adapter
• 1 x Quick Start Guide (QSG)
• 1 x Warranty Card

Package Type: Retail
Package Weight: 0.8610 kg
