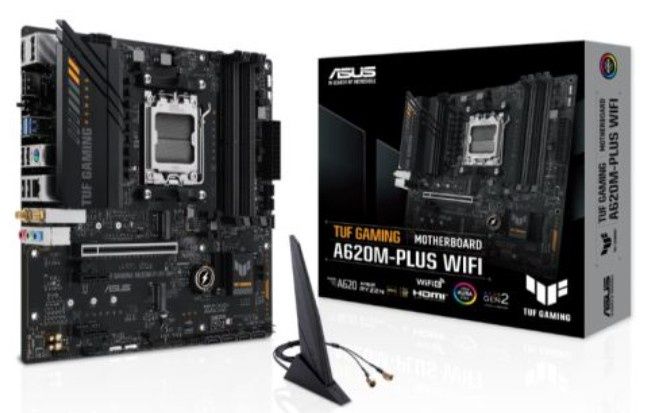

Asus TUF GAMING A620M-PLUS WIFI, AMD A620, AM5, Micro ATX, 4 DDR5, HDMI, 2 DP, Wi-Fi 6, 2.5G LAN, PCIe4, 2x M.2

ASUS TUF GAMING A620M-PLUS WIFI Overview

ASUS TUF GAMING A620M-PLUS WIFI combines all the essential elements of AMD Ryzen 7000-series processors with game-ready features and proven durability.

Key Features

• Engineered for durability: Built with military-grade components, upgraded power solutions, and a comprehensive cooling system, this motherboard ensures rock-solid and stable performance for marathon gaming.
• Rugged design: Incorporates off-black and geometric aesthetics reflecting the reliability and stability of the TUF GAMING series.
• Rigorous endurance testing: Designed to handle extreme conditions where others may fail.

Specifications and Features

Performance Features

• PCIe 4.0: For M.2 storage.
• DDR5 memory module support: Faster memory speeds up to 6400+(OC) and maximum memory capacity of 192GB.
• Front-panel USB 3.2 Gen1 Type-C: Modern connectivity for faster data transfer.
• Networking:
  • 2.5 Gb Ethernet for ultrafast wired connections.
  • Wi-Fi 6 for high-speed wireless networking.
• Two-Way AI Noise Cancelation: Enhanced audio clarity for communication.

Intelligent Control

Comprehensive controls provide flexible tools to fine-tune your system. The ASUS TUF GAMING A620 motherboard enables performance tweaks to perfectly match your workflow and maximize productivity.

Rock-Solid Performance

Upgraded power delivery and cooling options fuel AMD CPUs. With support for faster memory and storage, this motherboard is the ideal foundation for high-core-count AMD battle rigs.

Easy PC DIY

• TUF GAMING Alliance ecosystem: Ensures compatibility for easy setup.
• Armoury Crate: Includes Fan Xpert 2+, hardware info, Two-Way AI Noise Cancelation, RGB options, and peripheral settings. Intuitive tools help build and optimize your dream rig.

Immersive Gaming

• Ultrafast networking: For smoother online gameplay.
• Pristine audio: Positional cues for FPS gaming.
• Onboard RGB lighting: Syncs with attached gear to personalize your gaming atmosphere.

Detailed Specifications

Motherboard Type

• Desktop

Form Factor

• Micro ATX

Socket

• AMD AM5

Chipset

• AMD A620

CPU Support

• Click here for CPU compatibility.

Memory

• RAM Technology: DDR5 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 6400+(OC)
• Maximum Memory: 192GB

Graphics

• Integrated Graphics: Specifications may vary between CPU types.
• Graphics Ports:
  • 1 x HDMI
  • 2 x DisplayPort

Expansion Slots

• PCI/PCI Express:
  • 1 x PCIe 4.0 x16
  • 2 x PCIe 3.0 x1

Storage

• SATA III: 4 x SATA III ports
• M.2 slots:
  • 1 x M.2 (2242/2260/2280) - PCIe
  • 1 x M.2 (2242/2260/2280) - PCIe

RAID

• AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

Wireless Connectivity

• Wi-Fi 6: Supports 2.4/5GHz frequency band.
• Bluetooth v5.3

LAN

• Realtek 2.5GB LAN

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports

• Back Panel:
  • 2 x USB 3.2 Gen1 Type-A
  • 4 x USB 2.0
• Mid-board:
  • 2 x USB 3.2 Gen1
  • 4 x USB 2.0
• Front Panel:
  • 1 x USB 3.2 Gen1 Type-C connector

Back Panel I/O Ports

• 2 x USB 3.2 Gen1 Type-A
• 4 x USB 2.0
• 2 x DisplayPort
• 1 x HDMI
• 1 x Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet
• 3 x Audio jacks
• 1 x BIOS FlashBack button
• 1 x PS/2 Keyboard/Mouse combo

Internal I/O Connectors

• 1 x 4-pin CPU Fan
• 2 x 4-pin Chassis Fan
• 1 x 24-pin Main
• 1 x 8-pin +12V
• 2 x M.2 (Key M)
• 4 x SATA 6Gb/s
• 1 x USB 3.2 Gen1 Type-C
• 1 x USB 3.2 Gen1
• 2 x USB 2.0
• 3 x Addressable Gen2
• 1 x Aura RGB
• 1 x Clear CMOS
• 1 x COM Port
• 1 x Front Panel Audio
• 1 x S/PDIF Out
• 1 x Speaker
• 1 x 10-1 pin System Panel

Accessories

• 2 x SATA 6Gb/s cables
• 1 x ASUS Wi-Fi moving antennas
• 1 x I/O Shield
• 1 x TUF Gaming sticker
• 1 x Screw package for M.2 SSD
• 1 x TUF Certification card
• 1 x User guide

Packaging

• Package Type: Retail
• Package Weight: 1.5400 kg

For full product details, click here.
