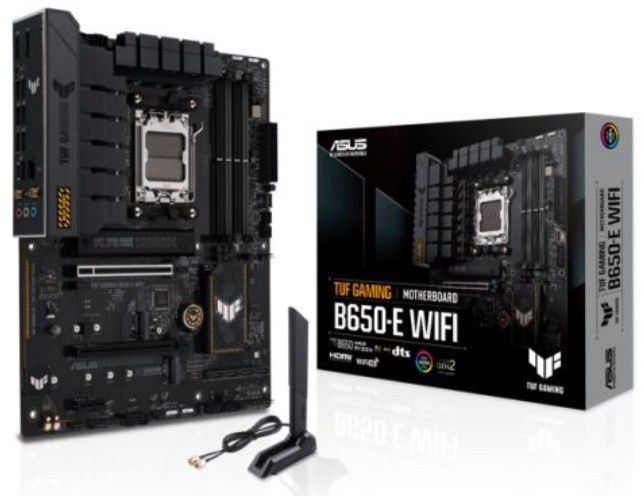

Asus TUF GAMING B650-E WIFI, AMD B650, AM5, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe4, 3x M.2

Overview

ASUS TUF GAMING B650-E WIFI combines the essential elements of the latest AM5 Socket for AMD Ryzen™ Desktop Processors with game-ready features and proven durability. This motherboard is engineered to deliver rock-solid and stable performance for marathon gaming sessions.

Key Features

• Military-grade components for enhanced durability.
• Upgraded power solution with 8(60A)+2(60A) power stages and enlarged VRM heatsinks.
• Comprehensive cooling system to maintain optimal performance.
• PCIe® 5.0 support for graphics cards and M.2 storage.
• DDR5 memory module support for faster speeds and improved performance.
• USB Type-C® ports:
  • 10Gbps and 20Gbps front-panel options.
• 2.5 Gb Ethernet and WiFi 6E for ultra-fast networking.
• Two-Way AI Noise Cancelation for clearer communication.
• Rugged off-black and geometric design reflecting dependability and stability.

Intelligent Control

The ASUS TUF GAMING B650-E WIFI is packed with flexible tools to fine-tune every aspect of your system. This allows you to optimize performance for maximum productivity and gaming efficiency.

Rock-Solid Performance

• Enhanced power delivery and cooling options fuel AMD's latest CPUs.
• Supports faster memory and storage, making it the perfect foundation for high-core-count AMD gaming rigs.

Easy PC DIY

Building your dream PC has never been easier:

• TUF GAMING Alliance ecosystem ensures compatibility with a wide range of components.
• Armoury Crate provides intuitive tools like Fan Xpert 4, hardware monitoring, RGB customization, and peripheral settings.

Immersive Gaming Experience

• Ultrafast networking ensures smoother online gameplay.
• Pristine audio with positional cues for FPS gaming.
• Onboard RGB lighting syncs with connected gear to personalize your gaming atmosphere.

Specifications

Motherboard Type: Desktop

Form Factor: ATX

Socket: AMD AM5

Chipset: AMD B650

Memory

• RAM Technology: DDR5 (Dual Channel)
  • ECC and Non-ECC, Un-buffered Memory
  • Supports AMD Extended Profiles for Overclocking (EXPO)
  • OptiMem II
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 8000+(OC)
• Maximum Memory: 256GB

Graphics

• Integrated Graphics: Dependent on CPU specifications.
• Graphics Ports:
  • 1 x HDMI
  • 1 x DisplayPort

Expansion and Storage

• PCI/PCI Express Slots:

  • 1 x PCIe 4.0/3.0 x16
  • 1 x PCIe 4.0/3.0 x16 (supports x1 mode)
  • 1 x PCIe 4.0/3.0 x1

• Storage Options:

  • 4 x SATA III
  • 3 x M.2 slots:
    • PCIe 5.0 x4*
    • PCIe 4.0 x4
    • PCIe 4.0 x4 (supports 22110 size)
    • *Note: Ryzen 8000 Series CPUs support PCIe 4.0 x4 mode

• RAID Support: AMD RAIDXpert2 Technology (PCIe RAID 0/1/10 and SATA RAID 0/1/10).

Connectivity

• Wireless:
  • Wi-Fi 6E (2x2, supports 2.4/5/6GHz bands)
  • Bluetooth v5.3
• LAN: 2.5 Gb Ethernet

Audio

• Audio Codec: Realtek 7.1 Surround Sound High Definition Audio

USB Ports

• Rear:

  • 1 x USB 10Gbps Type-C
  • 1 x USB 10Gbps Type-A
  • 3 x USB 5Gbps Type-A
  • 3 x USB 2.0

• Front:

  • 1 x USB 20Gbps Type-C
  • 2 x USB 5Gbps
  • 4 x USB 2.0

Back Panel I/O Ports

• 2 x USB 10Gbps (1 Type-A, 1 Type-C)
• 3 x USB 5Gbps Type-A
• 3 x USB 2.0
• 1 x DisplayPort
• 1 x HDMI
• 1 x Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet
• 5 x Audio jacks
• 1 x BIOS FlashBack button

Internal I/O Connectors

• 1 x 4-pin CPU Fan
• 1 x 4-pin CPU OPT Fan
• 1 x 4-pin AIO Pump
• 4 x 4-pin Chassis Fan
• 1 x 24-pin Main
• 1 x 8-pin +12V
• 1 x 4-pin +12V
• 3 x M.2 (Key M)
• 4 x SATA 6Gb/s
• 1 x USB 20Gbps Type-C
• 1 x USB 5Gbps
• 2 x USB 2.0
• 3 x Addressable Gen2
• 1 x Aura RGB
• 1 x Clear CMOS
• 1 x COM Port
• 1 x Front Panel Audio
• 20-3 pin System Panel

Package Details

• Type: Retail
• Weight: 1.9400 kg
