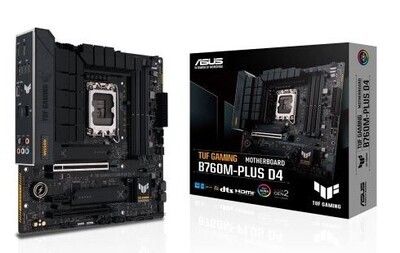

Asus TUF GAMING B760M-PLUS D4, Intel B760, 1700, Micro ATX, 4 DDR4, HDMI, DP, 2.5G LAN, PCIe5, 2x M.2

TUF GAMING B760M-PLUS D4 combines the essential elements of the latest Intel® processors with game-ready features and proven durability, making it the perfect choice for gaming enthusiasts.

Key Features

• Military-grade components for enhanced durability.
• 12+1 DrMOS power stages with enlarged VRM heatsinks for improved power delivery.
• Comprehensive cooling system to ensure rock-solid performance during marathon gaming sessions.
• PCIe 5.0 support for graphics cards.
• DDR4 memory module support for high-speed performance.
• USB 3.2 Gen 2x2 Type-C and a front-panel USB 3.2 Gen 1 Type-C® header for faster connectivity.
• 2.5 Gb Ethernet for ultrafast networking.
• Two-Way AI Noise Cancelation for pristine audio clarity.

Intelligent Control

TUF GAMING B760M motherboards are equipped with flexible tools to tune every aspect of your system, enabling performance tweaks to expertly match your gaming style.

Rock-Solid Performance

This motherboard features upgraded power delivery and comprehensive cooling options to fuel the latest Intel CPUs. It supports DDR4 memory and PCIe 4.0 storage, providing a robust foundation for your next Intel battle rig.

Easy PC DIY

The TUF GAMING line ensures easy setup for all builders:

• Compatibility through the TUF GAMING Alliance ecosystem.
• Intuitive tools like Armoury Crate with Fan Xpert 2+, hardware info, Two-Way AI Noise Cancelation, RGB options, and peripheral settings.

Immersive Gaming Experience

Enjoy a feature-packed high-performance gaming package:

• Ultrafast networking for smoother online gameplay.
• Pristine audio with positional cues for FPS gaming.
• Onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.

Specifications

Motherboard Type

• Desktop

Form Factor

• Micro ATX

Socket

• Intel 1700

Chipset

• Intel B760

RAM Technology

• DDR4 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 5333 (OC)
• Maximum Memory: 128GB

Graphics

• Integrated Graphics*
  *Graphics specifications may vary between CPU types
• Graphics Ports:
  • 1 x HDMI
  • 1 x DisplayPort

PCI/PCI Express

• 1 x PCIe 5.0 x16
• 1 x PCIe 4.0 x16 (supports x4 mode)
• 1 x PCIe 4.0 x1

Storage

• 4 x SATA III
• 2 x M.2 (2242/2260/2280) - PCIe

RAID

• Intel Rapid Storage Technology supports SATA RAID 0/1/5/10

LAN

• 2.5GB LAN

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports Supported

• 1 x USB 3.2 Gen2x2 Type-C (at back)
• 4 x USB 3.2 Gen2 Type-A (at back)
• 3 x USB 3.2 Gen1 Type-A (1 at back, 2 at mid-board)
• 6 x USB 2.0 (2 at back, 4 at mid-board)
• 1 x Front Panel Type-C USB 3.2 Gen1 Header

Back Panel I/O Ports

• 1 x USB 3.2 Gen2x2 Type-C
• 4 x USB 3.2 Gen2 Type-A
• 1 x USB 3.2 Gen1 Type-A
• 2 x USB 2.0
• 1 x DisplayPort
• 1 x HDMI
• 1 x Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet
• 5 x Audio jacks
• 1 x Optical S/PDIF out

Internal I/O Connectors

• 1 x 4-pin CPU Fan
• 1 x 4-pin CPU OPT Fan
• 1 x 4-pin AIO Pump
• 3 x 4-pin Chassis Fan
• 1 x 24-pin Main
• 1 x 8-pin +12V
• 1 x 4-pin +12V
• 2 x M.2 (Key M)
• 4 x SATA 6Gb/s
• 1 x USB 3.2 Gen1 Type-C
• 1 x USB 3.2 Gen1
• 2 x USB 2.0
• 3 x Addressable Gen2
• 1 x AURA RGB
• 1 x Clear CMOS
• 1 x Front Panel Audio
• 1 x 20-3 pin System Panel
• 1 x Thunderbolt (USB4)

Accessories

• 2 x SATA 6Gb/s cables
• 1 x ASUS Wi-Fi moving antennas
• 1 x M.2 Rubber Package
• 1 x Screw package for M.2 SSD
• 1 x TUF Gaming sticker
• 1 x TUF Certification card
• 1 x User guide

Package Details

• Type: Retail
• Weight: 1.6000 kg
