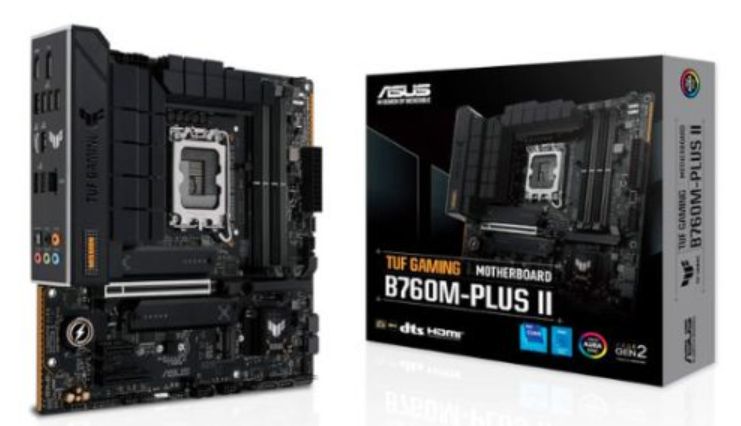

Asus TUF GAMING B760M-PLUS II, Intel B760, 1700, Micro ATX, 4 DDR5, HDMI, DP, 2.5G LAN, PCIe5, 3x M.2

Overview

TUF GAMING B760M-PLUS II combines the essential elements of the latest Intel® processors with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution, and a comprehensive cooling system, this motherboard delivers rock-solid performance for marathon gaming sessions. Rigorous endurance testing ensures reliability under challenging conditions. Aesthetically, it features an embossed nameplate and geometric design elements, reflecting the dependability and stability of the TUF GAMING series.

Key Features

• Power Delivery: 12(50A)+1(60A)+1 power stages with enlarged VRM heatsinks.
• Graphics Support: PCIe® 5.0 for graphics cards.
• Memory: DDR5 memory module support.
• Connectivity: USB 20Gbps Type-C® and a front-panel USB 10Gbps Type-C® header.
• Networking: 2.5 Gb Ethernet.
• Convenience: PCIe Q-Release and Two-Way AI Noise Cancelation.

Intelligent Control

The TUF GAMING B760M motherboards come equipped with flexible tools for system tuning, enabling performance tweaks tailored to your gaming style.

Rock-Solid Performance

With upgraded power delivery and comprehensive cooling options, this motherboard fuels the latest Intel CPUs. It supports DDR5 memory and PCIe 4.0 storage, making it the perfect foundation for your next Intel battle rig.

Easy PC DIY

The TUF GAMING line simplifies setup for all builders. The TUF GAMING Alliance ecosystem ensures compatibility, while Armoury Crate provides intuitive tools like Fan Xpert 2+, hardware info, Two-Way AI Noise Cancelation, RGB options, and peripheral settings, helping you build and optimize your dream rig.

Immersive Gaming

The TUF GAMING B760M motherboards deliver a feature-packed, high-performance gaming experience. Enjoy ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached gear to personalize your gaming atmosphere.

Specifications

Motherboard Type:

• Desktop

Form Factor:

• Micro ATX

Socket:

• Intel 1700

Chipset:

• Intel B760

Memory:

• Technology: DDR5 (Dual Channel), Non-ECC, Un-buffered Memory
• Features: Supports Intel Extreme Memory Profile (XMP), ASUS Enhanced Memory Profile II (AEMP II)
• Slots: 4 x DIMM
• Speeds: Up to 7800+(OC)
• Maximum Memory: 192GB

Graphics:

• Integrated Graphics: Specifications may vary between CPU types
• Ports: 1 x HDMI, 1 x DisplayPort

PCI/PCI Express:

• 1 x PCIe 5.0 x16
• 1 x PCIe 4.0 x4
• 1 x PCIe 3.0 x1

Storage:

• 4 x SATA III
• 3 x M.2 (2242/2260/2280) with PCIe 4.0 support

RAID:

• Intel Rapid Storage Technology supporting SATA RAID 0/1/5/10

Networking:

• 2.5GB LAN

Audio:

• Realtek 7.1 Surround Sound High Definition Audio CODEC

USB Ports:

Rear:

• 1 x USB 20Gbps Type-C
• 1 x USB 10Gbps Type-A
• 2 x USB 5Gbps Type-A
• 4 x USB 2.0

Front:

• 1 x USB 10Gbps Type-C
• 2 x USB 5Gbps
• 5 x USB 2.0

Back Panel I/O Ports:

• 1 x USB 20Gbps Type-C
• 1 x USB 10Gbps Type-A
• 2 x USB 5Gbps Type-A
• 4 x USB 2.0
• 1 x DisplayPort
• 1 x HDMI
• 1 x Realtek 2.5Gb Ethernet
• 5 x Audio jacks
• 1 x Optical S/PDIF out

Internal I/O Connectors:

• 1 x 4-pin CPU Fan
• 1 x 4-pin CPU OPT Fan
• 1 x 4-pin AIO Pump
• 3 x 4-pin Chassis Fan
• 1 x 24-pin Main
• 2 x 8-pin +12V
• 3 x M.2 (Key M)
• 4 x SATA 6Gb/s
• 1 x USB 10Gbps Type-C
• 1 x USB 5Gbps
• 3 x USB 2.0
• 3 x Addressable Gen2
• 1 x Clear CMOS
• 1 x Front Panel Audio
• 1 x 20-3 pin System Panel
• 1 x Thunderbolt (USB4)

Accessories:

• 2 x SATA 6Gb/s cables
• 1 x M.2 rubber package
• 1 x TUF GAMING sticker
• 2 x Screw packages for M.2 SSD
• 1 x TUF certification card
• 1 x Quick start guide

Package Type:

• Retail

Package Weight:

• 1.6000 kg
