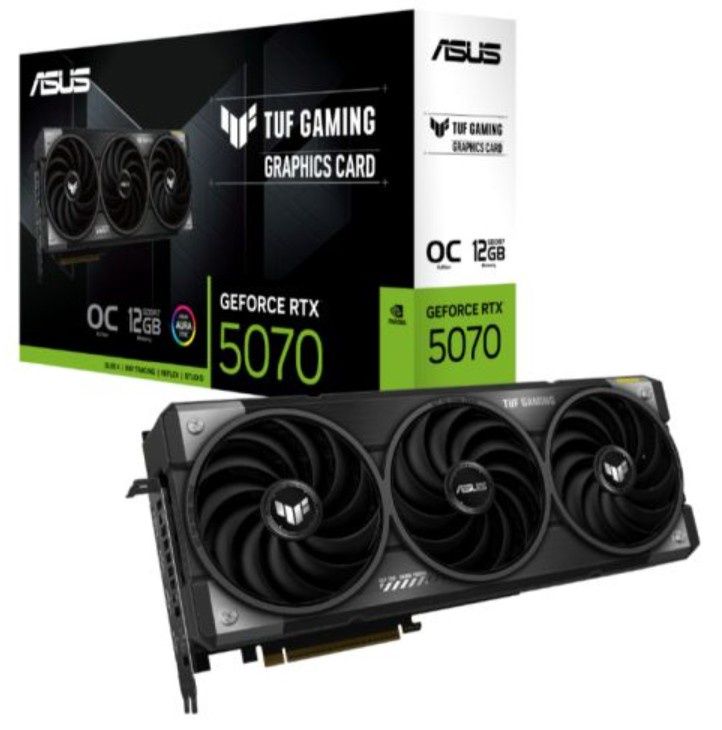

Asus TUF GAMING RTX5070 OC, PCIe5, 12GB DDR7, 2 HDMI, 3 DP, 2640MHz Clock, RGB Lighting, Overclocked

ASUS TUF Gaming GeForce RTX™ 5070 OC Edition Overview

Key Features:

• Powered by NVIDIA Blackwell architecture and DLSS 4 for cutting-edge performance.
• Military-grade components ensure rock-solid power and extended durability.
• Protective PCB coating safeguards against short circuits caused by moisture, dust, or debris.
• 3.125-slot design with a massive fin array optimized for airflow from three Axial-tech fans.
• Phase-change GPU thermal pad delivers superior thermal performance and longevity under heavy loads.
• ASUS GPU Guard and bracket secure the GPU, reducing the risk of cracks and ensuring stable mounting.
• Auto-Extreme precision manufacturing enhances reliability with advanced automated processes.
• GPU Tweak III software provides intuitive performance tweaking, advanced thermal controls, and system monitoring.

Premium Durability

• TUF Chokes & MOSFETs: Certified military-grade components deliver stable power to the GPU, enhancing system stability.
• TUF Capacitors: TUF 5K black metallic capacitors offer 52% wider temperature tolerance and a 2.5X longer lifespan compared to standard capacitors.
• Phase-Change GPU Thermal Pad: Melts to fill gaps between the GPU and thermal module, ensuring optimal heat dissipation under heavy loads.
• Protective PCB Coating: Conformal coating protects against short circuits caused by environmental factors.
• Dual-ball Fan Bearings: Deliver up to 80,000 hours of lifespan, doubling the longevity of sleeve bearings and surpassing fluid dynamic bearings.

Cooling Mastery

This advanced cooling design combines ASUS-exclusive MaxContact manufacturing, Axial-tech fans, and a vented metal exoskeleton for premium thermal performance and quiet operation.

• MaxContact Design: Expands the heat spreader's surface area by 5%, improving temperatures by up to 2°C alongside a robust heatsink array.
• Axial-tech Upgrades: Fans with dual-ball bearings propel 31% more air than standard designs.
• New Directions: Outer fans spin counterclockwise to reduce turbulence. Fans stop below 50°C for quieter operation and restart above 55°C to balance acoustics and performance.
• Vented Exoskeleton: Diecast shroud and aluminum backplate prevent PCB flex and enhance heat dissipation.

Reliability

• ASUS GPU Guard & Bracket: Adhesive secures all corners to reduce crack risks, while the bracket ensures uniform mounting pressure and stability.
• Auto-Extreme Technology: Automated manufacturing minimizes thermal strain, eliminates harsh chemicals, and reduces environmental impact for a more reliable product.

Software Features

• Ultimate GPU Tuning Utility: ASUS GPU Tweak III offers an intuitive interface with core functions centralized, enhanced overclocking tools, and features like 0dB fan technology and customizable on-screen displays.
• One Month of Free Adobe Creative Cloud: Complimentary membership to Adobe Creative Cloud and Adobe Substance 3D with selected ASUS product purchases.
• Light ‘em Up!: Aura-compatible ARGB lighting allows customizable color schemes to match your build.

Technical Specifications

• Chipset Manufacturer: Nvidia
• Interface: PCI Express 5.0
• Graphics Chipset: Nvidia RTX 5070
• Memory: 12GB DDR7, 192-bit, 28 Gbps memory clock
• Core Clock: OC mode: 2640MHz | Default mode: 2610MHz (Boost Clock)
• AI Performance: 1026 TOPS
• CUDA Cores: 6144 CUDA Cores
• Outputs: 2 x HDMI 2.1b, 3 x DisplayPort 2.1b
• Resolution: Digital Max Resolution: 7680 x 4320
• Cooling: Axial-Tech Fans, Dual-ball Fan Bearings, Phase-Change GPU Thermal Pad, MaxContact Design, Vented Exoskeleton
• PSU Requirements: 750W or greater recommended
• Connectors Required: 1 x 16-pin power
• Dimensions: 329 x 140 x 62.5 mm
• Slot Size: 3.125 Slot

Accessories Included

• 1 x Speedsetup Manual
• 1 x TUF Graphics Card Holder
• 1 x TUF Velcro Hook & Loop
• 1 x TUF Magnet
• 1 x TUF Gaming Certificate
• 1 x Thank You Card
• 1 x Adapter Cable (1 to 2)

Package Type: Retail
Package Weight: 2.3000 kg

With the ASUS TUF Gaming GeForce RTX™ 5070 OC Edition, experience unmatched durability, cooling mastery, and reliability, all powered by top-tier NVIDIA technology.
