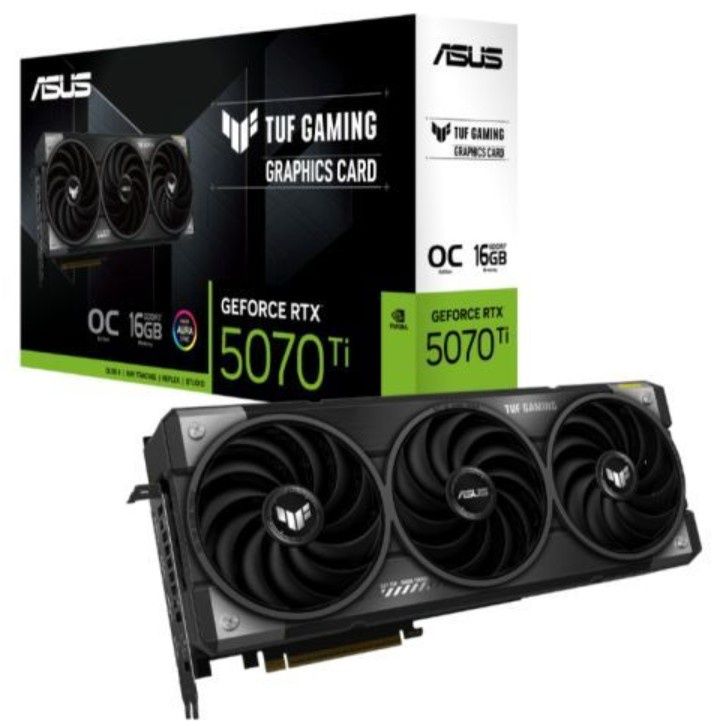

Asus TUF GAMING RTX5070 Ti OC, PCIe5, 16GB DDR7, 2 HDMI, 3 DP, 2610MHz Clock, RGB Lighting, Overclocked

Elevated Performance and Durability

The NVIDIA Blackwell architecture is enhanced with superior cooling and power delivery, reinforced with rugged durability for exceptional performance. The TUF Gaming GeForce RTX™ 5070 Ti is built to dominate even under the harshest conditions.

Key Features

• Military-Grade Components: Premium durability.
• Protective PCB Coating: Shields against moisture and debris.
• Axial-Tech Fans: Provide up to 31% more airflow than standard fans.
• Vented Exoskeleton: Features a 3.125-slot design for optimal heat dissipation.
• Perfect PSU Companion: Recommended with TUF Gaming Gold 1000W/850W.
• Phase-Change GPU Thermal Pad: Ensures optimal heat dissipation for GPU longevity.
• Dual BIOS: Switch between Quiet or Performance modes.
• GPU Tweak III: The ultimate GPU tuning utility.
• MuseTree: Grow your dreams with AI magic.

Premium Durability

• TUF Chokes & MOSFETs: Certified military-grade components deliver stable power to the GPU, enhancing system reliability.
• TUF Capacitors: 5K black metallic capacitors with 52% wider temperature tolerance and 2.5X longer lifespan than standard capacitors.
• Phase-Change GPU Thermal Pad: Fills gaps between the GPU and thermal module for superior heat dissipation.
• Protective PCB Coating: Conformal coating protects against short circuits caused by dust, moisture, or debris.
• Dual-ball Fan Bearings: Offers up to 80,000 hours of lifespan, doubling that of sleeve bearings.

Cooling Mastery

This advanced cooling design incorporates ASUS-exclusive MaxContact manufacturing, a phase-change GPU thermal pad, and efficient Axial-tech fans for premium thermal performance and quiet operation.

• MaxContact Design: Expands the heat spreader surface area by 5%, improving temperatures by up to 2°C.
• Axial-tech Upgrades: Fans spin on dual-ball bearings, delivering 31% more airflow.
• New Directions: Outer fans spin counterclockwise for reduced turbulence. Fans stop below 50°C for silent operation and restart above 55°C.
• Vented Exoskeleton: Diecast shroud and aluminum backplate prevent PCB flex and enhance heat dissipation.

Reliability

• ASUS GPU Guard & Bracket: Reduces the risk of cracks and ensures uniform mounting pressure for added stability.
• Auto-Extreme Technology: A fully automated manufacturing process reduces thermal strain on components, minimizes environmental impact, and ensures reliability.

Software and Customization

• ASUS GPU Tweak III: A revamped interface for easier overclocking, 0dB fan technology, profile swapping, and customizable on-screen displays.
• One Month of Free Adobe Creative Cloud: Complimentary membership to Adobe Creative Cloud All Apps and Adobe Substance 3D.
• Light ‘em Up!: Aura-compatible ARGB lighting lets you customize colors and effects, syncing with compatible components for a unique build.

Technical Specifications

• Chipset Manufacturer: Nvidia
• Interface: PCI Express 5.0
• Graphics Chipset: Nvidia RTX 5070 Ti
• Memory Size: 16GB
• Memory Type: DDR7
• Memory Interface: 256-bit
• Core Clock:
  • OC mode: 2610MHz
  • Default mode: 2588MHz (Boost Clock)
• Memory Clock: 28 Gbps
• AI Performance: 1484 TOPS
• CUDA Cores: 8960
• Outputs:
  • 2 x HDMI 2.1b
  • 3 x DisplayPort 2.1b
• HDCP Support: Yes
• Max Resolution: 7680 x 4320
• Cooling:
  • Axial-Tech Fans
  • Dual-ball Fan Bearings
  • Phase-Change GPU Thermal Pad
  • MaxContact Design
  • Vented Exoskeleton
• PSU Requirements: 850W or greater recommended
• Connectors Required: 1 x 16-pin power
• Dimensions: 329 x 140 x 62.5 mm
• Slot Size: 3.125 Slot

Accessories Included

• 1 x Speedsetup Manual
• 1 x TUF Graphics Card Holder
• 1 x TUF Velcro Hook & Loop
• 1 x TUF Magnet
• 1 x TUF Gaming Certificate
• 1 x Thank You Card
• 1 x Adapter Cable (1 to 3)

Package Details

• Type: Retail
• Weight: 2.4100 kg
