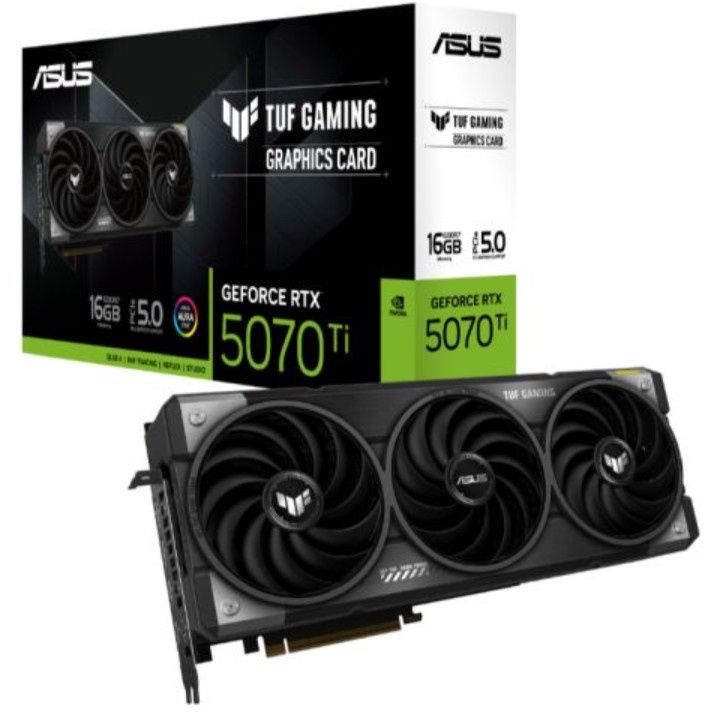

Asus TUF GAMING RTX5070 Ti, PCIe5, 16GB DDR7, 2 HDMI, 3 DP, 2482MHz Clock, RGB Lighting

NVIDIA Blackwell Architecture with Enhanced Cooling and Durability

Elevate your gaming experience with the TUF Gaming GeForce RTX™ 5070 Ti. Built with NVIDIA Blackwell architecture, this graphics card is designed for exceptional durability, enhanced cooling, and power delivery. Its rugged reinforcements ensure it can withstand the harshest conditions while delivering unparalleled performance.

Key Features

Premium Durability

• Military-Grade Components: Premium durability for reliable performance.
• Protective PCB Coating: Protects against moisture, dust, and debris.
• Dual-ball Fan Bearings: Offers a lifespan of up to 80,000 hours, doubling the longevity of sleeve bearings.
• TUF Chokes & MOSFETs: Certified military-grade components ensure rock-solid power delivery and improved system stability.
• TUF Capacitors: 52% wider temperature tolerance and 2.5X longer lifespan than standard capacitors.

Cooling Mastery

This advanced cooling system ensures optimized thermal performance and quiet operation:

• MaxContact Design: Expands the heat spreader surface area by 5%, improving temperatures by up to 2°C.
• Axial-tech Fans: Delivers up to 31% more airflow compared to standard fans.
• New Directions: Outer fans spin counterclockwise to reduce turbulence and enhance air dispersion. Fans stop below 50°C for quieter operation during light tasks.
• Vented Exoskeleton: A high-quality diecast shroud and aluminum backplate prevent PCB flex and improve heat dissipation.
• Phase-Change GPU Thermal Pad: Melts to fill gaps for superior thermal conductivity, ensuring GPU longevity under heavy loads.

Reliability

• ASUS GPU Guard & Bracket: Reduces the risk of cracks and ensures extra stability.
• Auto−Extreme Technology: An automated manufacturing process reduces thermal strain, lowers environmental impact, and ensures a more reliable product.

Software and Customization

• GPU Tweak III: The ultimate GPU tuning utility with an intuitive interface, overclocking tools, and features like 0dB fan technology and customizable on-screen displays.
• Aura-Compatible ARGB Lighting: Add customizable colors and effects to your build and coordinate with compatible components for a personalized theme.
• One Month of Free Adobe Creative Cloud: Enjoy complimentary access to Adobe Creative Cloud All Apps and Adobe Substance 3D.

Specifications

Core Specifications

• Chipset Manufacturer: Nvidia
• Graphics Chipset: Nvidia RTX 5070 Ti
• Memory Size: 16GB DDR7
• Memory Interface: 256-bit
• Core Clock:
  • OC Mode: 2482MHz
  • Default Mode: 2452MHz (Boost Clock)
• Memory Clock: 28 Gbps
• AI Performance: 1406 TOPS
• CUDA Cores: 8960

Outputs and Compatibility

• Outputs:
  • 2 x HDMI 2.1b
  • 3 x DisplayPort 2.1b
• HDCP Support: Yes
• Maximum Resolution: 7680 x 4320
• Max Display Support: 4
• Multi-GPU Support: None

Cooling System

• Axial-Tech Fans
• Dual-ball Fan Bearings
• Phase-Change GPU Thermal Pad
• MaxContact Design
• Vented Exoskeleton

Power and Dimensions

• PSU Requirements: 850W or greater recommended
• Connectors Required: 1 x 16-pin power
• Dimensions: 329 x 140 x 62.5 mm
• Slot Size: 3.125 Slot

Accessories Included

• 1 x Speedsetup Manual
• 1 x TUF Graphics Card Holder
• 1 x TUF Velcro Hook & Loop
• 1 x TUF Magnet
• 1 x TUF Gaming Certificate
• 1 x Thank You Card
• 1 x Adapter Cable (1 to 3)

Package Details

• Package Type: Retail
• Package Weight: 2.4100 kg

With its rugged design, advanced cooling, and cutting-edge technology, the TUF Gaming GeForce RTX™ 5070 Ti is the perfect choice for gamers and creators who demand exceptional performance and reliability.
