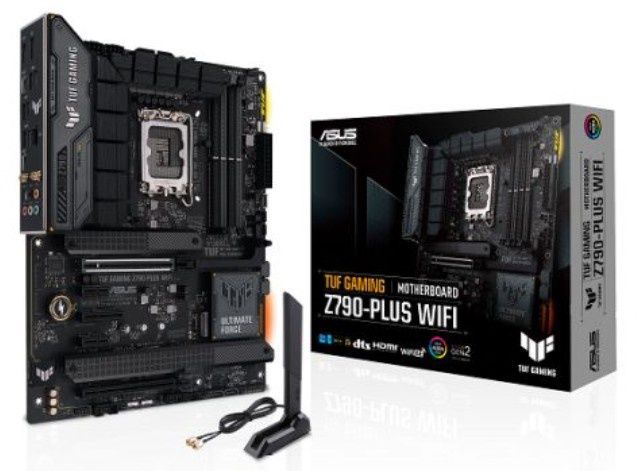

Asus TUF GAMING Z790-PLUS WIFI, Intel Z790, 1700, ATX, 4 DDR5, HDMI, DP, Wi-Fi 6E, 2.5G LAN, PCIe5, RGB, 4x M.2

TUF GAMING Z790-PLUS WIFI Overview

TUF GAMING Z790-PLUS WIFI combines the essential elements of the latest Intel® processors with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution, and a comprehensive cooling system, it ensures rock-solid performance for marathon gaming sessions. Its rigorous endurance testing guarantees reliability, while its embossed nameplate and geometric design reflect the dependability of the TUF GAMING series.

Key Features

• Power Stages: 16+1 DrMOS power stages (rated 60A) with enlarged VRM heatsinks.
• PCIe: PCIe® 5.0 for graphics cards.
• Memory Module Support: 7200+ MT/s, AEMP II.
• Connectivity: USB 3.2 Gen 2x2 Type-C® and a front-panel USB 3.2 Gen 2 Type-C® header.
• PC DIY Friendly: PCIe Q-Release.
• Ethernet: 2.5 Gb Ethernet.
• WiFi 6E: For ultrafast wireless networking.
• AI Cooling II: Dynamically adjusts fans to optimal speeds.
• Two-Way AI Noise Cancelation: Reduces background noise for clear communication.

Advanced Cooling and Efficiency

AI Cooling II

• Balance thermals and acoustics with a single click.
• ASUS-exclusive algorithm reduces unnecessary noise and optimizes fan speeds.

All Around Efficiency

• Power-saving settings optimize consumption.
• Options include CPU power limits, darkened Aura lighting, and fan profiles.

BIOS and System Configuration

UEFI BIOS

• Simplified options for beginners and advanced features for experts.
• EZ Mode: Displays vital settings with guided wizards and one-click configuration.
• Advanced Mode: Allows complete control with intuitive search and adjustment options.

Asus Armoury Crate

• Centralizes control of supported gaming products.
• Customizes RGB lighting with Aura Sync.
• Displays hardware information and facilitates product registration.

Performance and Build

DRMOS Power Stages

• 16+1 power stages rated to handle 60A for stable performance.

Six-Layer PCB Design

• Dissipates heat around voltage regulators for increased stability and overclocking headroom.

8+8 PIN ProCool Power Connectors

• Ensures full contact with PSU power cables, reducing hotspots and preventing connector failure.

TUF Components

• Military-grade components for exceptional durability and stability.

DIGI+ VRM

• Optimized for ultra-smooth and clean power delivery to the CPU.

Connectivity and Expansion

PCIe 5.0 Ready

• Supports up to four PCIe 4.0 M.2 slots with NVMe SSD RAID for incredible data transfer speeds.

WiFi 6E

• Uses the 6 GHz band for faster speeds and better performance in dense environments.

Intel® 2.5 Gb Ethernet

• Enhances LAN connection speeds for smoother streaming and faster file transfers.

Audio Excellence

Realtek 7.1 Channel Audio

• S1220A Codec with 120 dB SNR for pristine audio quality.
• Impedance-sensing circuit ensures optimal headphone volume.

DTS Audio Processing

• Enhances sound quality with reduced distortion and deeper bass.

Aesthetics and Customization

• Edge lighting enhances the rugged look.
• ASUS Aura offers full RGB control with presets for built-in LEDs and third-party strips.
• Syncs with a growing range of Aura-compatible hardware.

Specifications

Motherboard Details

• Type: Desktop
• Form Factor: ATX
• Socket: Intel 1700
• Chipset: Intel Z790

Memory

• RAM Technology: DDR5 (Dual Channel)
• RAM Slots: 4 x DIMM
• RAM Speeds: Up to 7200(OC)
• Maximum Memory: 192GB

Graphics

• Integrated Graphics: Varies by CPU
• Ports: 1 x HDMI, 1 x DisplayPort

Expansion Slots

• 1 x PCIe 5.0 x16
• 1 x PCIe 4.0 x16 (supports x4 mode)
• 1 x PCIe 4.0 x4
• 2 x PCIe 3.0 x1

Storage

• 4 x SATA III
• 4 x M.2 (various configurations, including PCIe and SATA support)

Wireless and LAN

• Wi-Fi 6E (2x2, supports 2.4/5/6GHz)
• Bluetooth v5.3
• 2.5GB LAN

Audio

• Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC

USB Ports

• 1 x USB 3.2 Gen2x2 Type-C (rear)
• 1 x USB 3.2 Gen2 Type-C (rear)
• 2 x USB 3.2 Gen2 Type-A (rear)
• 6 x USB 3.2 Gen1 (4 rear, 2 mid-board)
• 4 x USB 2.0 (mid-board)
• 1 x Front Panel Type-C USB 3.2 Gen2 Header

Accessories

• 2 x SATA 6Gb/s cables
• 1 x ASUS Wi-Fi moving antenna
• 1 x TUF GAMING sticker
• 2 x M.2 Rubber Packages
• 1 x Screw package for M.2 SSD
• 1 x TUF Certification card
• 1 x User guide

Package Details

• Type: Retail
• Weight: 2.0100 kg
