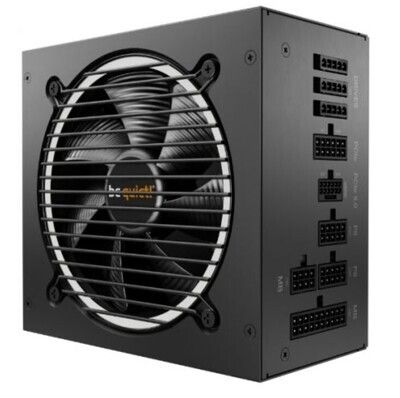

Be Quiet! 650W Pure Power 12 M PSU, Fully Modular, Rifle Bearing Fan, 80+ Gold, ATX 3.0, PCIe 5.0, Dual Rail

Pure Power 12 M 650W: Dependable, Efficient, and Future-Ready

The Pure Power 12 M 650W is an ATX 3.0 compliant and PCIe 5.0 compatible power supply unit that delivers peerless dependability and best-in-class features. It offers an optimal combination of features and outstanding compatibility, making it a perfect choice for quiet systems and gaming PCs.

Key Features

• 80 PLUS® Gold Efficiency: Achieves up to 92.7% efficiency, ensuring lower power consumption, reduced costs, and quieter operation.
• ATX 3.0 PSU: Fully supports PCIe 5.0 GPUs as well as GPUs with 6+2 pin connectors.
• Exceptionally Silent Operation: Equipped with a 120mm be quiet! fan, optimized for low noise and effective cooling.
• Advanced Stability: Features LLC technology for superior voltage regulation and efficiency.
• Dual 12V Rails: Provides 2 strong 12V rails for reliable power delivery.
• Modular Cables: Allows for maximum build flexibility and easier cable management.
• High-End GPU Support: Includes one PCIe 5.0 12VHPWR 450W connector and two PCIe 6+2 connectors.

Efficiency and Certification

• 80 PLUS® Gold Certified: With efficiency ratings of up to 92.7%, this PSU ensures a cooler, quieter operation while reducing energy costs.
• Efficiency Levels:
  • 230V, 2% load: 73.3%
  • 230V, 10% load: 86.4%
  • 230V, 20% load: 90.0%
  • 230V, 50% load: 92.7%
  • 230V, 100% load: 90.5%

Future-Proof Design

• ATX 3.0 Specifications: Designed to handle massive transient loads, ensuring smooth operation even during peak power demands.
• PCIe 5.0 Ready: Features native 12VHPWR connectors for next-gen GPUs alongside PCIe 6+2-pin connectors for current-gen GPUs.

Unprecedented Silent Operation

• Silence-Optimized Fan: The 120mm be quiet! fan is temperature-controlled to provide optimal cooling with minimal noise. Its airflow-optimized blades reduce turbulence, ensuring best-in-class quiet functionality.

Rock-Solid Stability

• LLC Topology: Delivers exceptional voltage regulation and efficiency, ideal for building or upgrading quiet systems, gaming PCs, or media creation setups.

Modular Cable Design

• Convenience and Compatibility: Modular cables eliminate unnecessary clutter, improving airflow inside the case. This results in lower noise levels and reduced temperatures while simplifying cable management.

Specifications

• Form Factor: ATX
• Series: Be Quiet! Pure Power 12 M
• Wattage: 650W
• Modular: Fully Modular
• Rail Design: 2 strong 12V rails
• Fan Type: 120mm silence-optimized be quiet! fan with Rifle Bearing
• MTBF: 100,000 hours

Connectors

• Motherboard: 1 x ATX (20+4-pin)
• CPU: 1 x P4+4, 1 x P8
• GPU: 1 x PCIe 5.0 12VHPWR (450W), 2 x PCIe 6+2-pin
• Storage: 5 x SATA, 2 x PATA

Protection Features

• Over Temperature Protection
• Over Current Protection
• Over Power Protection
• Short Circuit Protection
• Over Voltage Protection
• Under Voltage Protection
• Surge & Inrush Protection

Package Contents

• Power Supply
• Modular Cables
• Screws
• Cable Ties
• User Manual

Dimensions and Weight

• Dimensions: 160 x 150 x 86 mm (LxWxD)
• Weight: 1.55 kg (Package Weight: 2.95 kg)

With its high efficiency, future-proof design, and exceptional quietness, the Pure Power 12 M 650W is the ultimate choice for powering modern systems with ease and reliability.
