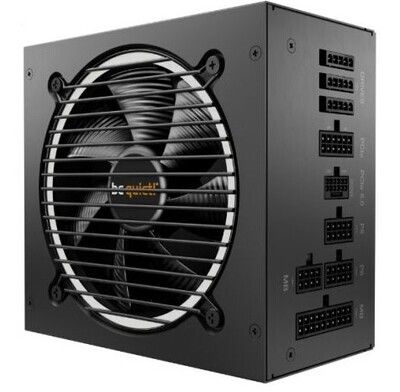

Be Quiet! 750W Pure Power 12 M PSU, Fully Modular, Rifle Bearing Fan, 80+ Gold, ATX 3.0, PCIe 5.0, Dual Rail

Pure Power 12 M 750W is ATX 3.0 compliant and PCIe 5.0 compatible, offering peerless dependability with best-in-class features. It combines outstanding compatibility with exceptional functionality, making it a top choice for quiet systems and gaming PCs.

Key Features:

• 80 PLUS® Gold efficiency: Up to 92.6% efficiency for lower power consumption, reduced costs, cooler operation, and quieter performance.
• ATX 3.0 PSU: Full support for PCIe 5.0 GPUs and GPUs with 6+2 pin connectors.
• Exceptionally silent operation: Temperature-controlled 120mm be quiet! fan with airflow-optimized blades for reduced turbulence.
• Advanced stability: LLC technology ensures best-in-class voltage regulation and efficiency.
• 2 strong 12V rails: Handles power excursions up to double its rated power, supporting next-gen processors and GPUs.
• Modular cables: Simplifies cable management for a tidy system layout, resulting in smoother airflow, lower noise, and reduced temperatures.
• High-end GPU support: Includes one PCIe 5.0 12VHPWR 600W connector and two PCIe 6+2 connectors.

Efficiency:

• 80 PLUS® Gold Certified: Outstanding efficiency rating of up to 92.6%.
• Efficiency levels (230V):
  • 2% load: 75.7%
  • 10% load: 86.6%
  • 20% load: 91.5%
  • 50% load: 92.6%
  • 100% load: 90.6%

Technical Specifications:

• Form Factor: ATX
• Series: Be Quiet! Pure Power 12 M
• Wattage: 750W
• Modular Design: Fully modular
• Compatibility: ATX 3.0, EPS 12V v2.92
• Rail Design: 2 strong 12V rails
• AC Input: AC 100-240V
• Fan Type: 120mm silence-optimized be quiet! fan with rifle bearing
• Noise Levels:
  • 10% load: 8.4 dB(A)
  • 20% load: 8.5 dB(A)
  • 50% load: 8.9 dB(A)
  • 100% load: 24 dB(A)

Connectors:

• 1 x ATX-Motherboard (20+4-pin)
• 1 x P4+4 (CPU)
• 1 x P8 (CPU)
• 1 x 12VHPWR cable (600W)
• 2 x PCI-e 6+2-pin (GPU)
• 5 x SATA
• 2 x PATA

Protection:

• Over temperature protection
• Over current protection
• Over power protection
• Short circuit protection
• Over voltage protection
• Under voltage protection
• Surge & Inrush protection

Additional Information:

• MTBF: 100,000 hours
• Package Contents:
  • Power Supply
  • Cables
  • Screws
  • Cable ties
  • User manual
• Weight/Dimensions: 1.69 kg, (LxWxD) 160 x 150 x 86 mm
• Package Weight: 3.1 kg

Pure Power 12 M 750W is the perfect choice for future-proofing your system, offering massive transient load handling, rock-solid stability, and unprecedented silent operation.
