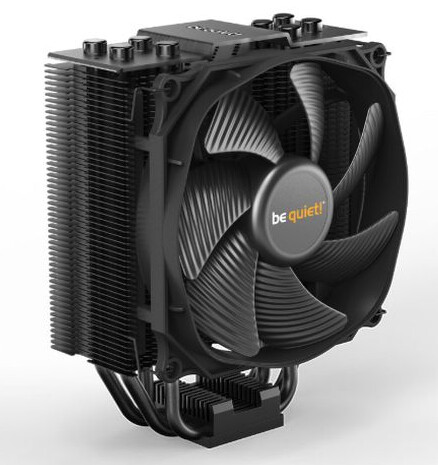

Be Quiet! BK024 Dark Rock Slim Heatsink & Fan, Intel & AMD Sockets, Silent Wings Fan, 180W, Fluid Dynamic

Exceptional Cooling Performance with Silent Operation

The Dark Rock Slim delivers an outstanding cooling performance of 180W TDP while maintaining virtually inaudible operation, making it ideal for high-end builds with limited space.

Key Features

• Compact construction that ensures no memory slots are blocked.
• Silent Wings 3 120mm PWM fan, designed for near-silent operation.
• Achieves a maximum noise level of only 23.6dB(A) at full fan speed.
• Equipped with four high-performance copper heat pipes for efficient heat dissipation.
• Airflow-optimized, wave-contoured cooling fins enhance air circulation.
• Special black coating with ceramic particles ensures perfect heat transfer.
• Supports an additional 120mm fan with included fan clips for enhanced cooling.
• Easily installable black mounting kit, allowing for top-down installation.
• Premium brushed aluminum top cover with a diamond-cut finish.

Compact Construction: Powerful Cooling in Small Spaces

The compact design of the Dark Rock Slim ensures excellent heat dissipation even in small spaces, making it the perfect solution for high-end builds with limited space. Its design ensures that no memory slots are blocked, offering flexibility in your system setup.

Virtually Inaudible Operation

The Silent Wings 3 120mm PWM fan is engineered for quiet performance, featuring:

• Seven airflow-optimized fan blades.
• A six-pole motor to minimize vibration.
• A durable fluid-dynamic bearing.
• Decoupled fan mounting with vibration-isolating elements on the heat sink.

Even at 100% PWM fan speed, the noise level remains as low as 23.6dB(A).

Exceptionally High Cooling Power

With a 180W TDP, the Dark Rock Slim ensures low CPU temperatures even during peak performance. For even better cooling, an additional 120mm fan can be installed.

Highly Advanced Design

The Dark Rock Slim features cutting-edge design elements for superior cooling, such as:

• Four advanced 6mm copper heat pipes that maximize heat conductance.
• Airflow-optimized, wave-contoured cooling fins with small surface dots for improved air circulation.
• A special black coating with ceramic particles that enhances heat transfer.

Technical Specifications

• Type: CPU Cooler
• Socket Compatibility:
  • Intel: 1700 / 1200 / 1150 / 1151 / 1155 / 1156 / 1366 / 2011(-3) Square ILM / 2066
  • AMD: AM2(+) / AM3(+) / AM4 / FM1 / FM2(+)
• TDP: 180W
• Colour: Black
• Material:
  • Fin: Aluminum
  • Base: Copper
  • CPU Contact Surface: CNC Machined
• Weight: 0.62 kg
• Fan Dimensions: 120 x 120 x 23 mm
• Overall Dimensions (L x W x H): 72 x 127 x 159 mm
• Fan Controller: PWM
• Rotation Speed: 1,500 RPM (100% PWM / 12V)
• Fan Bearing: Fluid Dynamic Bearing
• Noise Levels:
  • 50%: 11 dB(A)
  • 75%: 16.9 dB(A)
  • 100%: 23.6 dB(A)
• Power:
  • Rated Voltage: 12V
  • Input Current: 0.08 A
  • Input Power: 0.96 W
• MTBF: 300,000 hours (approx.)
• Package Type: Retail
• Package Weight: 0.9840 kg

The Dark Rock Slim is the ultimate combination of high-end cooling performance and silent operation, making it a premium choice for enthusiasts and system builders alike.
