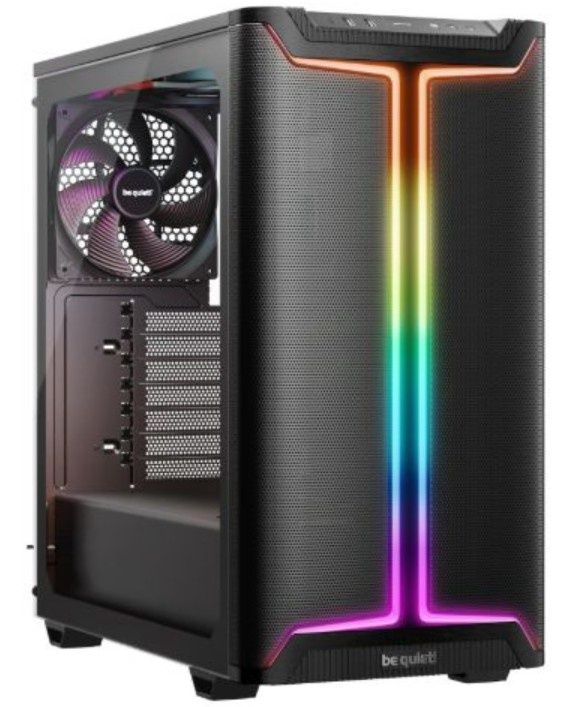

Be Quiet! Pure Base 501 DX ARGB Gaming Case w/ Glass Side, ATX, Compact Design, 3 Pure Wings 3 Fans, High Airflow Front & Top, USB-C, Black

Impressive lighting and airflow

The Pure Base 501 DX Black is an impressively illuminated be quiet! ATX case that combines compact dimensions with high airflow, making it suitable for any application.

Key Features:

• High airflow intake front panel and top cover for maximum performance.
• 3 preinstalled Pure Wings 3 140mm PWM fans delivering extraordinary air pressure.
• Dynamic case front design with elegant ARGB lighting inside and outside.
• Generous space for high-end graphics cards and large coolers, despite its compact footprint.
• Optional vertical graphics card installation.
• Water cooling ready for radiators up to 360mm.
• USB 3.2 Gen. 2 Type C for best connectivity.
• Tempered glass side panel for a sleek look.

Looking Good! Let it shine

The Pure Base 501 DX Black features ARGB LEDs on the front and inside the case, striking the perfect balance between ARGB illumination and the elegant understatement that the Pure Base 501 series is known for. The redesigned front panel complements the lighting and makes a bold statement in your room.

Perfect Case Fan

Fan blades optimized for high airflow

The Pure Wings 3 140mm PWM fans are optimized for maximum airflow, making them the ideal choice for the Pure Base 501 DX Black. With 7 airflow-optimized fan blades, they reduce noise-generating turbulence while delivering the performance required for demanding configurations.

More Than Meets The Eye

Generous space for high-end hardware

Despite its compact dimensions, the Pure Base 501 DX Black offers ample space for high-end graphics cards and large coolers. It supports:

• Triple fans or a radiator up to 360mm at the front.
• Space for up to 2 fans or a radiator up to 240mm in the top area.

Way Up!

With rotatable PCIe slots

Take your GPU setup to the next level! The PCIe slots of the Pure Base 501 DX Black can be rotated 90°, allowing for upright installation of wide high-end graphics cards. The optional be quiet! Riser Cable with its foam base provides excellent anti-sag support for vertical graphics card orientation.

Inventory Management

Smart cable routing options

Thanks to cleverly integrated cable routing options, the compact Pure Base 501 DX Black makes cable management simple and efficient, ensuring a clean and organized setup.

Connect With Me

State-of-the-art technology for your system

The front I/O port includes:

• USB 3.2 Gen. 2 Type C connector.
• 2 Type A ports for fast and easy connectivity.
• A controller button for the front ARGB LEDs, allowing you to cycle through colors and modes or sync effects with a motherboard ARGB header.

Technical Specifications

Form Factor:

ATX

Motherboard Support:

ATX, Micro ATX, Mini ITX

Drive Bays:

• 2 x 3.5"
• 5 x 2.5"

Expansion Slots:

7

Cooling System:

Included Fans:

• Top: 1 x Pure Wings 3 140mm PWM Fan
• Front: 1 x Pure Wings 3 140mm PWM Fan
• Rear: 1 x Pure Wings 3 140mm PWM Fan

Fan Mounts:

• Top: 2 x 140mm / 2 x 120mm
• Front: 2 x 140mm / 3 x 120mm
• Rear: 1 x 140mm / 1 x 120mm

Radiator Support:

• Front: Up to 360mm
• Top: Up to 240mm
• Rear: Up to 140mm

Material:

• Top Cover: Steel
• Front Panel: ABS
• Side Panel: Steel
• Side Panel Window: Glass

Compatibility:

• GPU Max Height: 368mm
• CPU Cooler Max Height: 178mm
• PSU Max Length:
  • Excl. Bottom Fan: 200mm
  • Incl. Bottom Fan: 180mm

Dimensions:

• Excl. Stands (LxWxH): 450 x 231 x 449mm
• Incl. Stands (LxWxH): 450 x 231 x 463mm

Weight:

7.8kg

Additional Features

• Compact design.
• High airflow intake front panel and top cover.
• Optional vertical graphics card installation.
• Comfortable cable management with clever routing.
• ARGB LEDs on the front and inside.

Accessories:

• Screw set (Drives/Motherboard).
• 1 x Additional standoffs.
• 2 x LED strips.
• 12 x Cable ties.

Package Weight:

9.15kg
