Be Quiet! Pure Base 501 LX Gaming Case w/ Glass Side, ATX, Compact Design, 4x ARGB Fans, ARGB Controller & Hub, High Airflow, USB-C, Black

Impressive Lighting and Airflow

The Pure Base 501 LX Black is an impressively versatile be quiet! ATX case, offering ARGB fans, compact dimensions, and high airflow for any application.

Key Features:

• High airflow intake front panel and top cover for maximum performance.
• 4 preinstalled Light Wings LX PWM fans for remarkable lighting effects and exceptional air pressure.
• ARGB controller and ARGB-PWM hub for up to 6 fans.
• Generous space for high-end graphics cards and large coolers, all within a compact footprint.
• Optional vertical graphics card installation.
• Water cooling ready, supporting radiators up to 360mm.
• Comfortable cable management with a clever cable routing design.
• Side panel made of tempered glass.

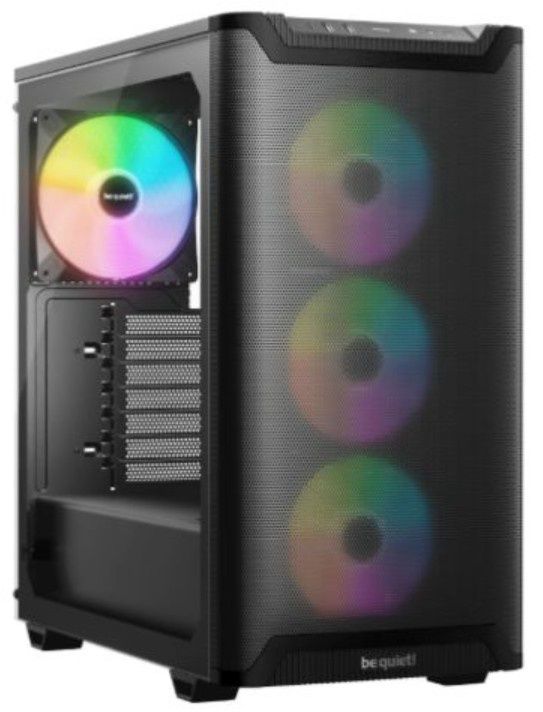

Light It Up

Lots of Illumination Possibilities

The Pure Base 501 LX Black is perfect for ARGB enthusiasts. With 4 preinstalled Light Wings LX PWM fans, this case is designed to showcase your build. It offers:

• Countless modes and colors.
• Synchronization of ARGB effects.
• A hub for 6 ARGB devices and PWM fans, conveniently located behind the motherboard tray.

Perfect Case Fan

Fan Blades Optimized for High Airflow

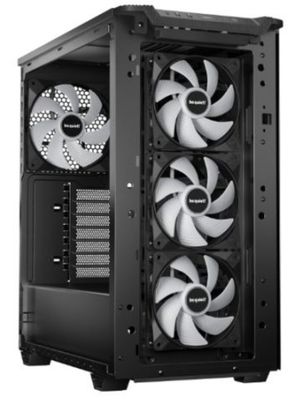

The Light Wings LX 120mm PWM fans are optimized for maximum airflow, making them ideal for high-performance configurations. Key details include:

• 7 airflow-optimized fan blades to reduce noise-generating turbulence.
• 3 front-mounted 120mm fans pulling in cool air.
• 1 rear-mounted 140mm fan exhausting warm air.

More Than Meets The Eye

Generous Space for High-End Hardware

Despite its compact size, the Pure Base 501 LX Black provides ample room for:

• High-end graphics cards and large coolers.
• Triple fans or a radiator up to 360mm at the front.
• Space for up to 2 fans or a radiator up to 240mm at the top.

Way Up!

With Rotatable PCIe Slots

The rotatable PCIe slots allow for a vertical GPU installation, offering:

• A unique upright setup for wide high-end graphics cards.
• Perfect spacing for the optional be quiet! Riser Cable, complete with foam anti-sag support.

Inventory Management

With Smart Cable Routing Options

Designed as a compact PC case, the Pure Base 501 LX Black features:

• Cleverly integrated cable routing, making cable management effortless.

Connect With Me

State-of-the-Art Technology

The front I/O port includes:

• USB 3.2 Gen. 2 Type-C connector.
• 2 USB 3.2 Type-A ports.
• Mic and audio jacks.
• A controller button to cycle through fan colors and modes or sync effects with a motherboard ARGB header.

Technical Specifications

• Form Factor: ATX.
• Motherboard Support: ATX, Micro ATX, Mini ITX.
• Drive Bays: 2 x 3.5", 5 x 2.5".
• Expansion Slots: 7.
• Cooling System:
  • Included Fans:
    • Front: 3 x Light Wings LX 120mm PWM.
    • Rear: 1 x Light Wings LX 140mm PWM.
  • Fan Mounts:
    • Top: 2 x 140mm / 2 x 120mm.
    • Front: 2 x 140mm / 3 x 120mm.
    • Rear: 1 x 140mm / 1 x 120mm.
  • Radiator Support:
    • Front: Up to 360mm.
    • Top: Up to 240mm.
    • Rear: Up to 140mm.
• Material:
  • Top Cover: Steel.
  • Front Panel: ABS.
  • Side Panel: Steel with Glass Window.
• Compatibility:
  • GPU Max Length: 368mm.
  • CPU Cooler Max Height: 178mm.
  • PSU Max Length: 200mm (excl. bottom fan) / 180mm (incl. bottom fan).
• Weight and Dimensions:
  • Weight: 7.8 kg.

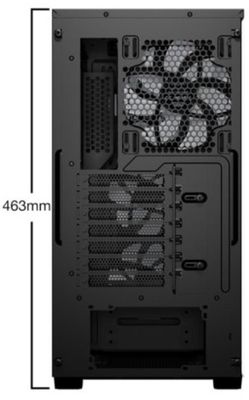

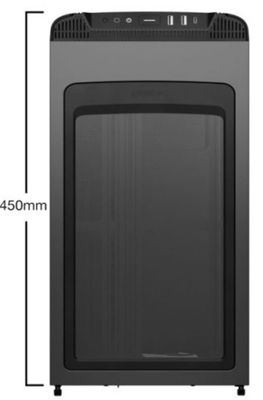

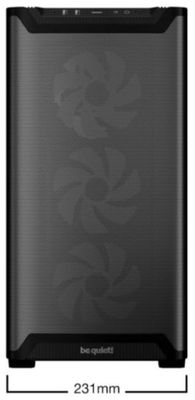

  • Dimensions (LxWxH): 450 x 231 x 463 mm (including stands).
• Color: Black.

Additional Features

• Compact design with high airflow intake front panel and top cover.
• Optional vertical graphics card installation.
• Comfortable cable management with clever routing.

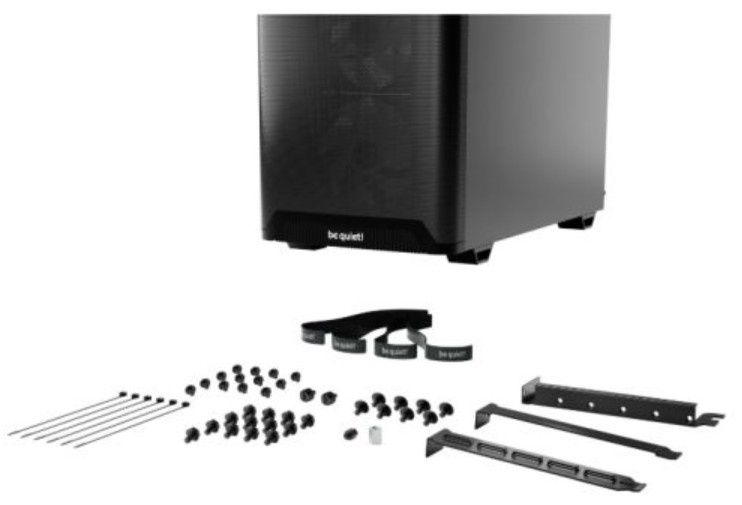

Included Accessories:

• Screw set (Drives/Motherboard).
• 1 additional standoff.
• 12 cable ties.

Package Details

• Package Weight: 9 kg.
