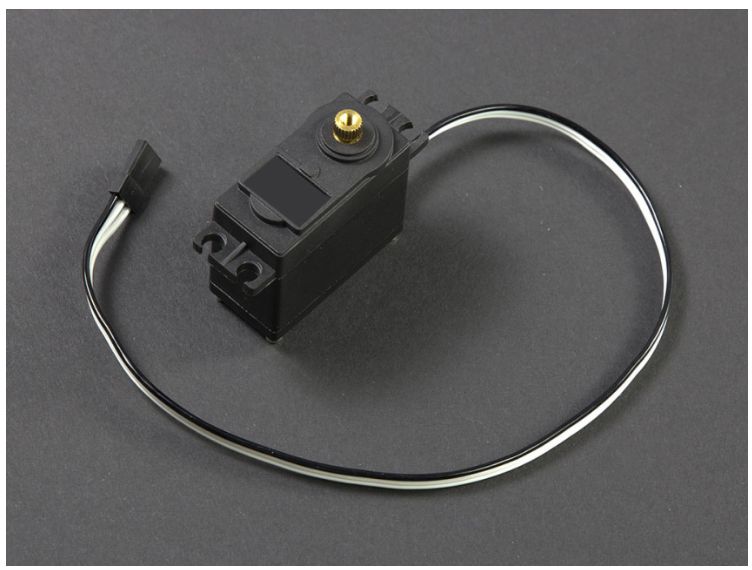

Continuous Rotation Servo

Continuous rotation HDD servos will give your robot mobility by rotating 360 degrees.

Modified Servos for Continuous Rotation

These servos are also called "modified servos" because they rotate continuously in a circle, making them perfect for attaching wheels. Please note: wheels are not included with this servo. If you need servos with wheels, check out Continuous Rotation HDD Servo with Wheel or the Servo Wheel (2 Pack).

HEAVY DUTY DIGITAL SERVO MOTORS

Inside the HDD servo motors are metal gears and real ball bearings that lift 19 kg/cm! These servos have enough strength to let your robots walk, move, or lift. They are engineered to be tough, thanks to years of R&D. Check out our demonstration video!

Features

• Operating speed: 0.22±0.01 sec/60° (7.4v)
• Running current: 1400±30mA (7.4v)
• Stall torque: 19±0.20kg·cm (7.4v)
• Stall current: 3000±50mA (7.4v)
• Running life: > 180,000 Turns
• Temperature range: -10°C to +50°C
• Operating voltage: 4.8V to 8.4v
• Dual ball metal bearing
• All metal gears
• Connector wire length: 32cm
• Futaba 3f (25 teeth) for driving spline/shaft
• 6.2mm C1 standard spline (including teeth)
