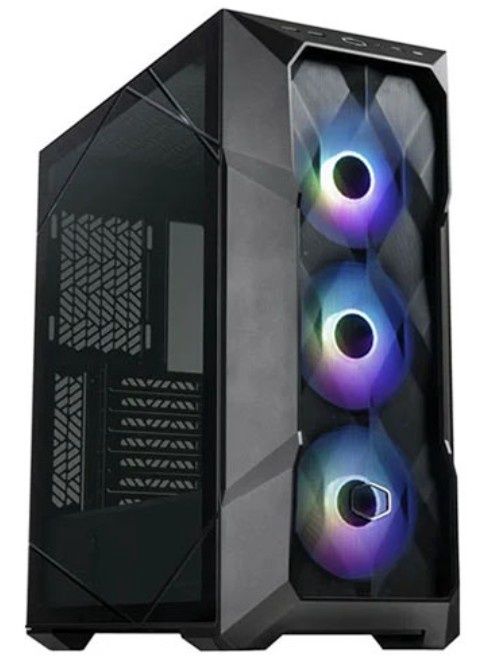

Cooler Master MasterBox TD500 Mesh V2 Gaming Case w/ Glass Side, E-ATX, 3x ARGB Fans, ARGB Fan Hub, FineMesh Front, USB-C, Black

Iconic Design for Unique Systems

MasterBox TD500 Mesh V2’s iconic polygonal design ensures your system stands out while keeping your gaming sessions streamlined.

Key Features

• Polygonal FineMesh Performance Front Panel
• 3 x 120mm CF120 ARGB Fans Included
• ARGB/Fan Hub
• USB 3.2 Gen2 Type-C
• Removable Top Panel
• Tool-Free Crystalline TG Side Panel
• PSU Shroud with Removable Cover

Feature Highlights

Polygonal FineMesh Performance Front Panel

The Polygonal FineMesh features a 3D contour, delivering high airflow and effective dust filtration simultaneously.

Three CF120 ARGB Fans Included

Pre-installed CF120 ARGB fans provide excellent airflow, ensuring low temperatures, high performance, and stunning aesthetics for even the most intense gaming sessions.

USB 3.2 Gen 2 Type-C Support

A USB 3.2 Gen 2 Type-C port built into the I/O panel allows for fast, multi-purpose data transmission.

Removable Top Panel

The top panel is completely removable, offering improved access during assembly and simplifying the mounting of cooling solutions.

Hardware Compatibility

• Compatible with ITX, M-ATX, and ATX motherboards.
• Supports E-ATX motherboards up to 12" x 10.7", including SSI-CEB models.

Versatile Cooling Options

• Supports up to seven 120mm fans.
• Radiator support includes 360mm at the front and top, ensuring uncompromised performance.

Tool-Free Crystalline TG Side Panel

The crystalline tempered glass side panel is completely tool-free, providing quick and easy access to your system’s internals.

PSU Shroud with Removable Cover

The removable PSU cover allows you to choose between showcasing your PSU or keeping it hidden for a cleaner look.

ARGB/Fan Hub Included

The included ARGB/Fan Hub lets you manage system lighting independently from the hardware configuration and provides four additional fan headers for extra flexibility.

Technical Specifications

Form Factor

• E-ATX

Motherboard Support

• E-ATX (up to 12"x10.7"), SSI-CEB, ATX, Micro ATX, Mini ITX

Connectors / Controls

• 1 x USB 3.2 Gen2 Type-C
• 2 x USB 3.2 Gen1 Type-A
• 1 x Audio Jack

Drive Bays

• 2 x 3.5" Drive Bays
• 3 x 2.5" Drive Bays

Expansion Slots

• 7 Expansion Slots

Cooling System

Included:

• Front: 3 x 120mm CF120 ARGB Fans
• ARGB/Fan Hub

Fan Mounts:

• Front: 3 x 120mm / 2 x 140mm
• Top: 3 x 120mm / 2 x 140mm
• Rear: 1 x 120mm

Radiator Options:

• Front: 120 / 140 / 240 / 280 / 360mm
• Top: 120 / 140 / 240 / 280 / 360mm (recommended max thickness - 55mm)
• Rear: 120mm

Colour

• Black

Material

• Exterior: Steel, Mesh, Plastic
• Left Side Panel: Tempered Glass

Compatibility

• GPU Clearance: 410mm
• CPU Clearance: 165mm
• PSU Clearance: 200mm (Recommended up to 170mm; Bottom Mount, ATX)

Weight/Dimensions

• With Protrusions: 499 x 210 x 500 mm
• Without Protrusions: 430 x 210 x 477 mm
• Package Weight: 9.4 kg

Additional Features

• Dust Filters: Front, Top, Bottom
