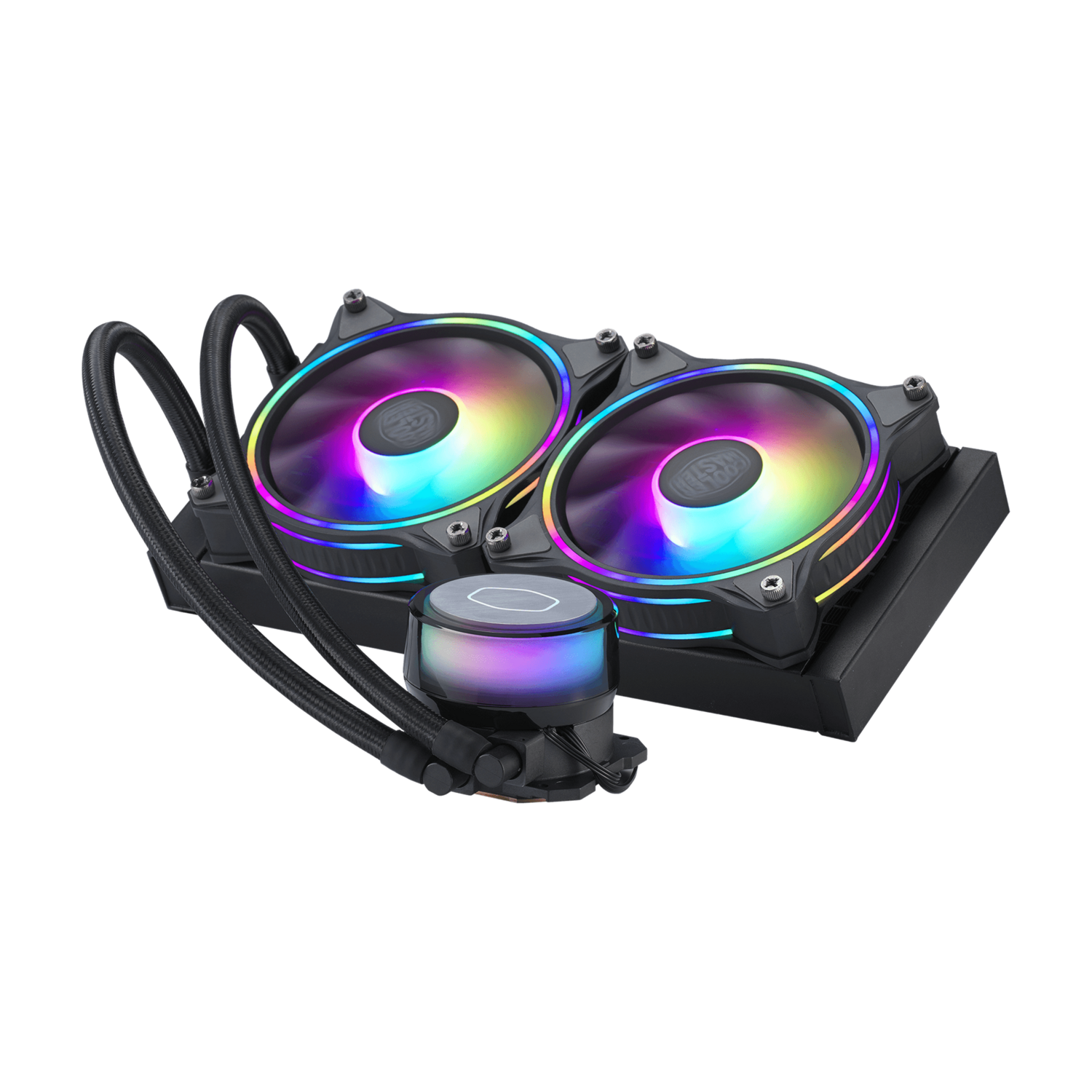

Cooler Master Masterliquid ML240 Illusion Liquid Cooler

SEE IT TO BELIEVE IT

The MasterLiquid ML-Illusion series redefines lighting visuals with all-new design features. Equipped with 12 Addressable Gen 2 RGB LEDs integrated into a translucent pump, the customization options are spectacular. Complemented by MasterFan MF120 Halo fans, the lighting effects are more than even visual enthusiasts can handle. Beyond its elegance, the Illusion features the 3rd generation Dual Chamber Pump, delivering excellent cooling performance.

TRANSLUCENT DOME

• Stunning lighting visuals with a translucent water chamber dome.
• Features a rotatable logo.
• Fully compatible with software customization.

NEW 3RD GEN DUAL CHAMBER PUMP

• Quieter cooling performance thanks to an improved design.
• Enhanced internal impeller and housing improve cooling performance and efficiency.
• Lower noise levels for a more pleasant experience.

EXPANDED DISSIPATION SURFACE AREA

• Widened radiator water channels for increased cooling surface area.

MASTERFAN MF120 HALO

• Dual loop Addressable Gen 2 RGB fans with 24 individual ARGB LEDs.
• Fully customizable with MasterPlus+ software for vibrant color displays.

NEW ADDRESSABLE GEN 2 RGB

• Includes an Addressable Gen 2 RGB controller.
• Works seamlessly with Cooler Master's MasterPlus+ software.
• Customize each individual LED for color, effect, brightness, and more through an intuitive interface.

PERFORMANCE HIGHLIGHTS

• Purpose: Processor cooling.
• Features: Built-in fan and radiator, compatible with Pulse Width Modulation (PWM).
• Noise Levels:
  • Fan noise: 6 dB (min) to 30 dB (max).
  • Pump noise: 10 dB.
• Fan Specifications:
  • Speed: 650 RPM (min) to 1800 RPM (max).
  • Maximum airflow: 47.2 cfm.
  • Maximum air pressure: 1.6 mmH2O.
• Processor Compatibility:
  • Supports various sockets, including LGA 1150, LGA 1200, LGA 2066, Socket AM4, and more.
• Pump MTTF: 70,000 hours.

POWER CONTROL

• Pump power consumption: 2.36 W.
• Voltage:
  • Pump: 12V.
  • Fan: 12V.
• Fan current: 0.25A.

DESIGN

• Type: Internal.
• Material: Radiator made from aluminum.
• Lighting: Red/Green/Blue LED lighting.
• Color: Black.

WEIGHT AND DIMENSIONS

• Weight: 1.48 kg.
• Fan Dimensions: 120 x 120 x 25 mm.
• Radiator Dimensions:
  • Width: 27.7 cm.
  • Depth: 12 cm.
  • Height: 2.72 cm.
• Pump Dimensions:
  • Width: 8.14 cm.
  • Length: 7.6 cm.
  • Height: 5.78 cm.
