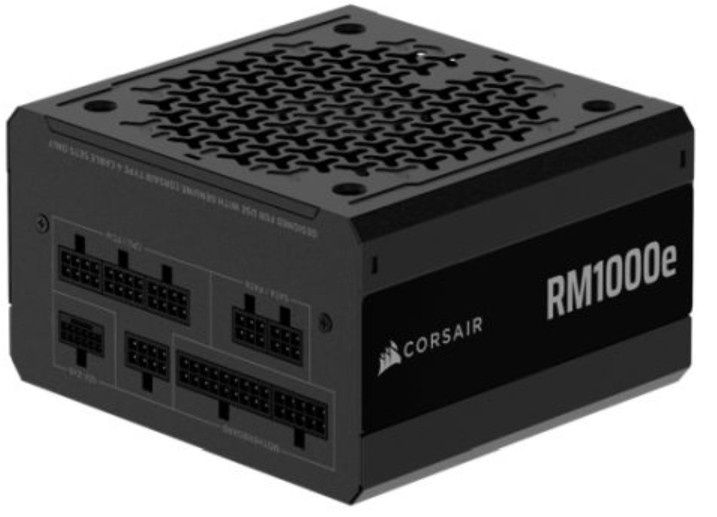

Corsair 1000W RMe Series RM1000e PSU, Fully Modular, Low-Noise, Cybenetics Gold, Zero RPM Mode, ATX 3.1, PCIe 5.1

Overview

The CORSAIR RM1000e Fully Modular Low-Noise ATX Power Supply is designed to deliver quiet, reliable power with Cybenetics Gold efficiency for your PC. Its modular cables simplify PC builds, allowing you to connect only the cables your system requires. With ATX 3.1 and PCIe 5.1 compliance, including a native 12V-2x6 connector and cable, it has the connections needed to support today’s demanding PC hardware.

Industrial-grade, 105°C-rated capacitors ensure superb electrical performance, and the unit is backed by a seven-year warranty. The compact 140mm-long casing fits nearly any modern case, making the CORSAIR RMe Series a reliable choice for steady power.

Key Features

• Fully Modular PSU:
  Reliable and efficient power supply with fully modular cabling, so you only connect the cables your system needs.

• Intel® ATX 3.1 Certified:
  Compliant with the ATX 3.1 power standard, supporting PCIe 5.1, and capable of handling 2x transient power excursions from the GPU.

• Keeps Quiet:
  A 120mm rifle bearing fan with a specially calculated fan curve ensures low noise levels, even at full load.

• 105°C-Rated Capacitors:
  Provides steady, reliable power and dependable electrical performance.

• Modern Standby Compatible:
  Enables extremely fast wake-from-sleep times and better low-load efficiency.

• Cybenetics Gold-Certified:
  Offers up to 90% efficiency, reducing power consumption, noise, and heat.

• Zero RPM Fan Mode:
  Ensures near-silent operation at lower loads.

• Cybenetics "A" Noise Rating:
  Professionally tested across a wide range of loads, rated for extremely low noise.

• Compact Design:
  The 140mm-long casing ensures an easy fit in modern enthusiast PC cases.

• Resonant LLC Topology with DC-to-DC Conversion:
  Provides clean, consistent power and improved energy efficiency across various loads.

• Native 12V-2x6 GPU Power Connector:
  Supports the latest Nvidia 40 Series graphics cards without requiring bulky adapters.

Specifications

Form Factor:

• ATX

Series:

• Corsair RMe

Wattage:

• 1000 W

Modular:

• Fully Modular

Compatibility:

• ATX12V v3.1
• EPS12V 2.92
• PCIe 5.1

Connectors:

• 1 x ATX (24-pin)
• 2 x EPS / ATX 12V 8-pin (4+4)
• 1 x 12V-2x6 (12+4) Pin
• 2 x 12V-2x6 to Dual 8-Pin (6+2)
• 2 x PCIe 8-Pin (6+2)
• 4 x SATA (4 Straight SATA)
• 4 x SATA / PATA (2 Straight SATA, 2 Straight PATA)

AC Input:

• 100-240V

Fan Type:

• 120mm Rifle Bearing Fan

Fan Bearing:

• Rifle Bearing

Noise:

• Low Noise - Cybenetics "A" Noise Rating
• Zero RPM Fan Mode

Certification:

• Gold

Efficiency:

• Up to 90%
• Cybenetics Gold efficiency certified

Package Contents

• Power Supply
• 1 x 24-pin ATX (24-pin) Connector Cable
• 2 x 8-pin ATX 12V/EPS12V (4+4-pin) Connector Cables
• 1 x 8-pin PCIe (6+2-pin) Connector Cable
• 1 x 600W 12V-2x6 (12+4-pin) Connector Cable
• 1 x 12V-2x6 (12+4-pin) to dual 8-pin PCIe (6+2-pin) Cable
• 6 x SATA Connectors
• 2 x PATA Connectors

Dimensions & Weight

• Unit Weight: 1.642 kg
• Dimensions: 150 x 140 x 86 mm
• Package Weight: 3.2300 kg
