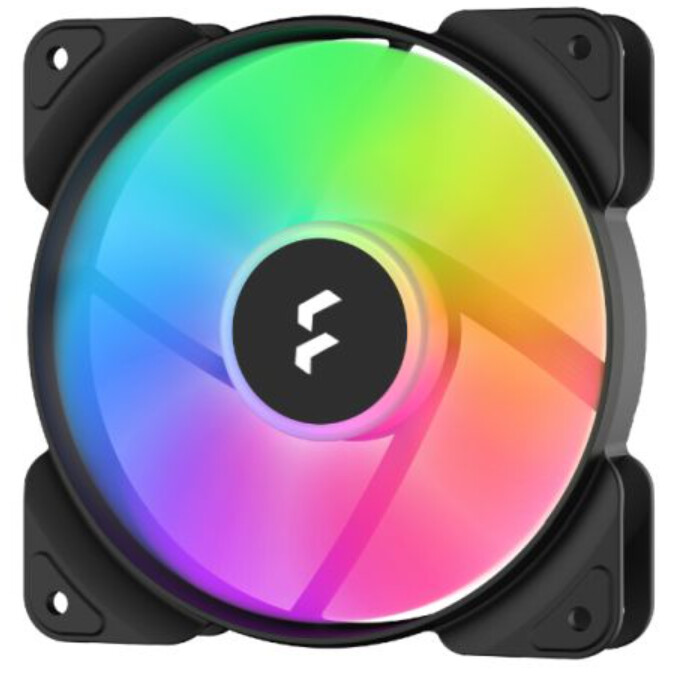

Fractal Design Aspect 12 12cm RGB PWM Case Fan, Rifle Bearing, Supports Chaining, Aerodynamic Stator Struts, 500-2000 RPM, Black Frame

For PC builders looking for reliable and discrete RGB cooling that balances aesthetics and performance

Key Features:

• Less turbulence thanks to aerodynamic stator struts.
• 6 individually addressable hub-mounted RGB LEDs.
• Supports ASUS AURA, Gigabytes Fusion, MSI Mystic Light, and ASRock Polychrome.
• Trip Wire technology introduces a micro-turbulent layer for enhanced blade efficiency.
• Supports chaining for both power and RGB wires to simplify cable management.
• Rifle bearings – more efficient than standard sleeve.
• Combines aesthetic design and reliable performance.

Overview:

Building on the core functionality of market favorites like Dynamic and Prisma, the Aspect series brings an exciting new aesthetic to the Fractal range of fans. Notable features include:

• Aerodynamic stator struts for lower turbulence.
• Trip Wire technology for enhanced blade efficiency.
• Rifle bearings.
• Built-in chaining support to simplify cable management.

Specifications:

• Type: 12cm Case Fan
• Fan Connector(s): 4-pin
• Installation: Screws
• Colour: Black frame, white blades
• LED Lighting:
  • 6 individually addressable hub-mounted RGB LEDs
  • Supports ASUS AURA, Gigabytes Fusion, MSI Mystic Light, and ASRock Polychrome
• Weight: 135 g
• Fan Dimensions: 120 x 120 x 25 mm
• Fan Controller: PWM
• Rotation Speed: 500 - 2000 RPM
• Fan Bearing: Rifle bearing
• Air Flow: 13 – 56 CMF
• Noise Level: <10 – 33.2 dB

Power Details:

• Fan typical input power: 1.68 W
• Fan typical input current: 0.14 A
• Fan max input power: 4.44 W
• Fan max input current: 0.37 A
• Fan input voltage: 12 V
• Minimum startup voltage: 7 V
• LED rated voltage: 5 V
• LED rated current: 0.3 A
• LED Rated input power: 1.5 A

Additional Features:

• Less turbulence thanks to aerodynamic stator struts.
• Trip Wire technology introduces a micro-turbulent layer.
• Combines aesthetic design and reliable performance.
• Supports chaining for power and RGB wires to simplify cable management.

Durability:

• MTBF: 90,000 hours

Package Contents:

• Aspect Fan
• 4 x Fan screws

Packaging:

• Package Type: Retail
• Package Weight: 0.1690 kg
