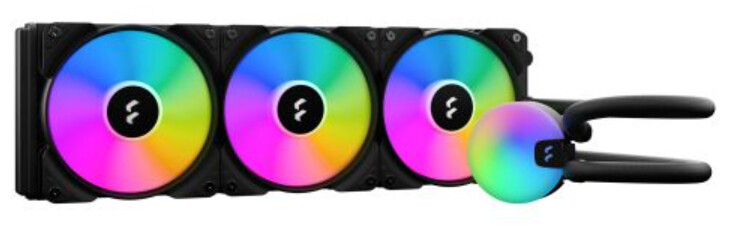

Fractal Design Lumen S36 V2 360mm ARGB Liquid CPU Cooler, ARGB Pump, 3x Aspect 12 RGB PWM Fans

Customise Your Cooling Experience

Transform your CPU water-cooling from subtle to stunning with Lumen’s six addressable LEDs, which you can command via your motherboard or controller. Compatible with most common Intel/AMD sockets and RGB certified by industry standards, the Lumen delivers high-end cooling performance and premium ARGB effects for both new and seasoned builders.

Key Features

• Duality Design: Offers both a stealthy and illuminated look, controlled through your motherboard RGB UI.
• Six ARGB LEDs: Fully customizable via your motherboard or controller.
• Removable Top: Can be rotated at 90-degree intervals, ensuring the logotype remains horizontal regardless of mounting orientation.
• Pre-applied Thermal Paste: Simplifies installation with no mess.
• Socket Compatibility: Supports the most common Intel and AMD sockets.
• Aspect Fans: Designed for low turbulence and chaining support.
• Articulating Elbow Fittings: Makes tube routing easier and reduces tension on the cold plate housing.
• Certifications: Compatible with Asus AURA, Gigabyte Fusion, MSI Mystic Light, Razer Chroma, and ASRock Polychrome.
• Durable Tubes: Low-permeability rubber tubes with braided nylon sleeves for added reliability.

Technical Specifications

Dimensions

• Radiator: 392 x 120 x 27 mm
• Block Height: 43 mm
• Block Measurements (with fittings): 79 x 67 mm
• Block Diameter (main block body): 67 mm
• Tube Length: 400 mm
• Fan Dimensions: 120 x 120 x 25 mm

Performance

• Air Flow: 13–56 CFM
• Noise Levels:
  • Fan: <10–33.2 dBA
  • Pump: 22 dBA
• Rotation Speed: 500–2000 RPM

Materials

• Cold Plate: Copper
• Radiator Housing: Aluminium
• Radiator Fins: Aluminium
• Tubes: Low-permeability rubber with braided nylon sleeve

Power

• Input Voltage: 12V DC
• Input Current (without fans): 0.34 A
• Pump Input Voltage: 12V DC
• Pump Input Current (without fans): 0.34 A

MTBF (Mean Time Between Failures)

• Fan: 90,000 hours
• Pump: 50,000 hours

Package Contents

• CPU Cooler Assembly
• 3x Aspect 12 RGB Fans
• User Manual
• Intel Mounting Kit
• AMD Mounting Kit
• 5V ARGB Cable

Additional Details

• Type: CPU Liquid Cooler
• AMD/Intel Compatibility: Combo
• Radiator Size: 360 mm
• Fan Controller: PWM
• Fan Bearings: Rifle Bearings
• Installation: Radiator fan screw threads (6-32)
• Colour: Black
• LED Lighting:
  • 6 addressable LEDs on pump head
  • 3x Aspect 12 RGB PWM Fans
• Package Type: Retail
• Package Weight: 2.3 kg

Compatibility

Intel Sockets:

1700, 1150, 1151, 1155, 1156, 1200, 1366, 2011, 2011-3, 2066

AMD Sockets:

AM5, AM4, FM2+, FM2, FM1, AM3+, AM3, AM2+, AM2
