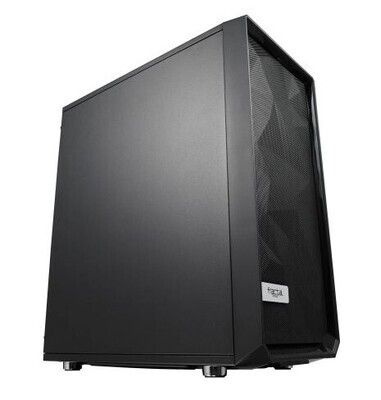

Fractal Design Meshify C (Black Solid) Gaming Case, ATX, Angular Mesh Front, High-airflow, 2 x 12cm Fans

Meshify Design and Cooling Performance

Meshify strikes an aggressive pose in the Fractal Design lineup with unparalleled cooling performance and a defiant new look. Like black diamond facets, the angular asymmetry of the Meshify C carves a space uniquely its own as a new force in high-airflow design.

Key Features:

• Streamlined high-airflow design
• The performance and capacity of a larger tower in a remarkably compact mid-tower size
• Newly designed angular mesh front panel maximizes air intake
• Distinctive new styling with a stealthy black-on-black aesthetic
• Flexible storage options with room for up to 5 drives
• Sturdy steel drive trays with vibration-dampening rubber grommets cushion hard drives for smooth, quiet, and reliable operation
• Two preinstalled Fractal Design Dynamic X2 GP-12 120 mm fans deliver optimum airflow with minimal noise
• Open interior layout creates an unobstructed airflow path from front intake to rear exhaust
• Easy-to-clean filters on the front, top, and base with full PSU coverage and convenient front access
• Full-length power supply shroud conceals drive cage and excess cabling for unrestricted airflow and a clean-looking interior
• Up to 35 mm of space behind motherboard plate with grommeted pass-throughs for clean cable routing

Style Meets Substance

An open ATX layout with intelligent space utilization creates an unrestricted airflow path from the mesh front intakes directly through key components to exhaust, ensuring heat is never an issue. The Meshify C has a remarkably compact footprint with the high-end component support of a larger tower. With seven fan mounts and multi-radiator liquid cooling capability, it has the cooling capacity to match.

Streamlined High-Airflow Design:

• Newly designed angular mesh front panel maximizes air intake
• Two pre-installed Fractal Design Dynamic X2 GP-12 120 mm fans deliver optimum airflow with minimal noise
• Open interior layout creates an unobstructed airflow path from front intake to rear exhaust
• Easy-to-clean filters on the front, top, and base with full PSU coverage and convenient front access

Open to Suggestions

• Flexible storage options with room for up to five drives
• Full-length power supply shroud conceals drive cage and excess cabling for unrestricted airflow and a clean-looking interior
• Up to 35 mm of space behind motherboard plate with grommeted pass-throughs for clean cable routing
• Three dedicated SSD mounting options

Room for Flexibility

Conceal up to five storage devices with an adjustable and removable drive cage beneath the PSU shroud plus dedicated SSD mounts behind the motherboard tray.

• Sturdy steel drive trays with vibration-dampening rubber grommets cushion hard drives for smooth, quiet, and reliable operation
• Flexible storage options with room for up to five drives
• The performance and capacity of a larger tower in a remarkably compact mid-tower size

Improved Air Cooling

Seven total fan positions allow for extensive air cooling. Two Fractal Design Dynamic X2 GP-12 fans come preinstalled for maximum airflow, minimal noise, and 100,000-hour life expectancy.

• Supports radiators up to 360 mm in the front and 240 mm up top
• Open interior layout creates an unobstructed airflow path from front intake to rear exhaust
• Even the largest enthusiast-class GPUs leave plenty of room for thick triple-fan rads in the front. The adjustable drive cage can be moved or removed to fit even the lengthiest heavy-duty PSUs

Technical Specifications:

Form Factor: ATX
Power Supply Wattage: No PSU
Motherboard Support: ATX, Micro ATX, Mini ITX

Connectors / Controls:

• 2 x USB 3.0
• Audio I/O
• Power button
• Reset button

Drive Bays:

• 2 x 3.5"/2.5"
• 3 x 2.5"

Expansion Slots: 7 Expansion slots

Cooling System:
Included:

• Front: 1 x Dynamic X2 GP-12 120mm fan
• Rear: 1 x Dynamic X2 GP-12 120mm fan

Fan Mounts:

• Front: 3 x 120 / 2 x 140 mm
• Top: 2 x 120 / 140 mm
• Rear: 1 x 120 mm
• Bottom: 1 x 120 mm

Water Cooling Options:

• Front: Up to 360 / 280 mm radiator
• Top: Up to 240 mm radiator
• Rear: 120 mm radiator (max width 125 mm)

Compatibility:

• GFX Card length: 315 mm with front fan mounted
• Max CPU Cooler: 170 mm
• PSU: 175 mm

Weight and Dimensions:

• Weight: 6.16 kg
• Dimensions (LxWxH): 395 x 212 x 440 mm
• Without feet/protrusions/screws: 413 x 217 x 453 mm

Accessories:

• User manual
• Accessory box
• Top filter

Package Weight: 7.1500 kg
