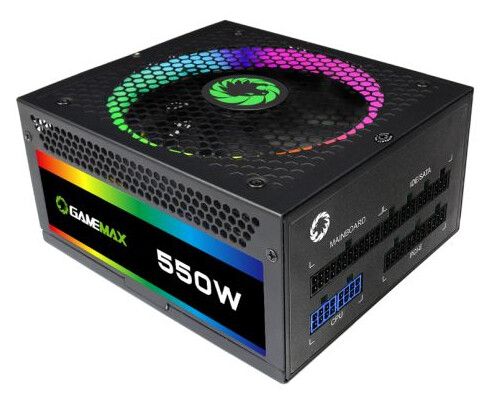

GameMax 550W RGB PSU, Fully Modular, 14cm ARGB Fan, 80+ Gold, RGB Controller (Various Modes), Power Lead Not Included

GameMax RGB Series Power Supply: Value and Performance

The GameMax RGB series power supply is designed to offer exceptional value and performance, making it the ideal choice for system builders. With 12V CPU power and modern PCIe 6+2 Pin connectors, this PSU is ready to support high-end gaming systems. Additionally, GameMax ensures full electrical protection, official safety certifications, and a quality promise.

Key Features

• Powerful single +12V rail provides stable DC output, supporting high-end graphic cards and PC systems.
• 80+ Gold APFC certification, delivering high efficiency and 90+ performance.
• Active Power Factor rate up to 0.9.
• Includes a 14cm RGB fan with 256 colour options. Switch between single colours (red, green, blue, yellow, white, pink, purple) and rainbow modes.
• Honeycomb ventilation design ensures optimal heat dissipation.
• Fully modular output connector for easy installation.

RGB Modes

1. Memory function restores the last used state when the PSU is turned back on.
2. Multiple colour modes can be selected by pressing the RGB button on the PSU.
3. The fan features a variety of ARGB and RGB LED lighting effects.
4. Press the RGB button for three seconds in any mode to turn off the lights.

Technical Specifications

• Form Factor: ATX
• Series: GameMax RGB
• Wattage: 520W
• Modular: Fully Modular
• Compatibility: ATX 12V
• Rail Design: Powerful single +12V rail
• AC Input: 100-240 VAC
• PFC: Active PFC
• Fan Type: 140mm RGB fan with various LED effects (Noise: <17 dBA)
• 80+ Certification: 80+ Gold
• Efficiency: >88%
• MTBF: 100,000 Hours
• Protection: OVP / UVP / OTP / OCP / OLP / OPP / SCP

Connectors

• 1 x 20+4 Pin Main
• 1 x 4+4 Pin 12V
• 6 x SATA
• 3 x 4-Pin Molex
• 2 x 6+2 Pin PCI-e
• 1 x Floppy Drive

Package Contents

• Power Supply
• Modular Cables
• Manual
• Cable Ties
• Screws

Dimensions and Weight

• Weight: 1.47 kg
• Dimensions: 150 x 85 x 165 mm (WxHxD)
• Package Weight: 2.6 kg

Additional Highlights

• Noise Level: <17 dBA
• Efficiency: >88%
• MTBF: 100,000 Hours
• RGB Fan: Various LED effects controllable via RGB button

With its high efficiency, modern design, and extensive protection features, the GameMax 550W RGB PSU is a reliable and stylish choice for powering your gaming setup.
