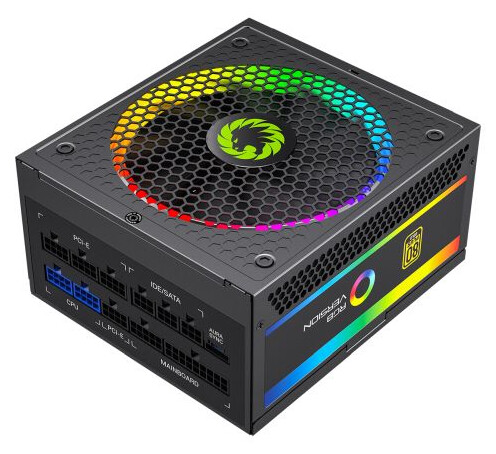

GameMax 850W Pro RGB PSU, Fully Modular, 14cm ARGB Fan, 80+ Gold, RGB Controller (25 Modes), Power Lead Not Included

Introducing the RGB 850W Gold-GameMax Premium Edition

This intelligent fully modular unit delivers 850 watts of clean, continuous, and stable power, making it ideal for gaming and workstation PCs with multiple GPUs and high-performance CPUs.

Exceptional Stability and Durability

• 80 PLUS Gold-certified efficiencies ensure energy efficiency and reliability.
• Built with state-of-the-art components for superior performance.
• Equipped with a fluid dynamic bearing fan for silent and efficient cooling.
• Fully modular design for a clean and organized build.

A full suite of top-tier circuit protections guarantees safe and reliable power delivery in any environment.

Building on RGB Series Success

GameMax has enhanced the RGB Series by combining its existing features with small upgrades, including:

• A new design layout.
• Motherboard Sync capability for seamless integration.

This results in a cutting-edge modern gaming power supply.

Key Features

• 80 PLUS Gold Certification
  Trusted with an 80 PLUS Gold certification and Intel C6/C7 States Ready, it achieves 90% energy efficiency or higher and is optimized for all Intel processors to maximize energy savings.

• 12V Current Output
  A powerful single 12-volt current output of 70A ensures high performance at the core of your system.

• Fluid Dynamic Bearing
  The 140mm 9-blade fan with Fluid Dynamic Bearing offers high airflow, smarter RPM control, silent operation, and a longer lifespan.

• 140mm ARGB Fan
  Includes a 256 RGB color cooling fan with 25 manual color modes, delivering stunning lighting effects to enhance your build.

• Motherboard Software Compatibility
  Sync the ARGB lighting effects through motherboards supporting ARGB functions (5V 3-Pin Addressable RGB header), including ASUS AURA, MSI Mystic Light, Gigabyte Fusion 2.0, and ASRock. Enjoy 16.7 million static modes and 12 pre-set lighting effects.

• Modular Cable Configuration
  Fully modular design allows you to use only the cables you need, improving airflow, saving space, and creating a cleaner look with low-profile flat black cables.

• Made for High-End Graphics Cards
  Includes three 8-pin (6+2 x 2 cables) to support the latest NVIDIA RTX-Series and AMD RT/RX Series GPUs, delivering continuous and stable power.

• Hardware Protection
  A comprehensive lineup of circuit protections keeps your system safe:

  • OVP (Over Voltage Protection)
  • OCP (Over Current Protection)
  • OPP (Over Power Protection)
  • SCP (Short Circuit Protection)
  • UVP (Under Voltage Protection)
  • OTP (Over Temperature Protection)

Technical Specifications

• Form Factor: ATX

• Series: GameMax RGB

• Wattage: 850 W

• Modular: Fully Modular

• Compatibility: ATX 12V

• Connectors:

  • 1 x 20+4 Pin Main
  • 2 x 4+4 Pin 12V
  • 8 x SATA
  • 3 x 4-Pin Molex
  • 3 x 6+2 Pin PCI-e
  • 1 x Floppy Drive

• AC Input: 100-240 VAC

• PFC: Active PFC

• Fan Type: 140mm ARGB LED Fan with 25 manual color modes

• Fan Bearing: Fluid/Hydraulic Bearing

• Noise: <17dBA

• 80+ Certification: 80+ Gold

• Efficiency: 90%

• MTBF: 100,000 Hours

• Protection: OPP / OVP / UVP / OCP / SCP / OTP

Package Contents

• PSU
• Modular Cables
• AURA Sync Cable
• Cable Ties
• Screws
• Manual

Dimensions and Weight

• Weight: 1.55 kg
• Dimensions (WxHxD): 150 x 85 x 168 mm
