Gripper

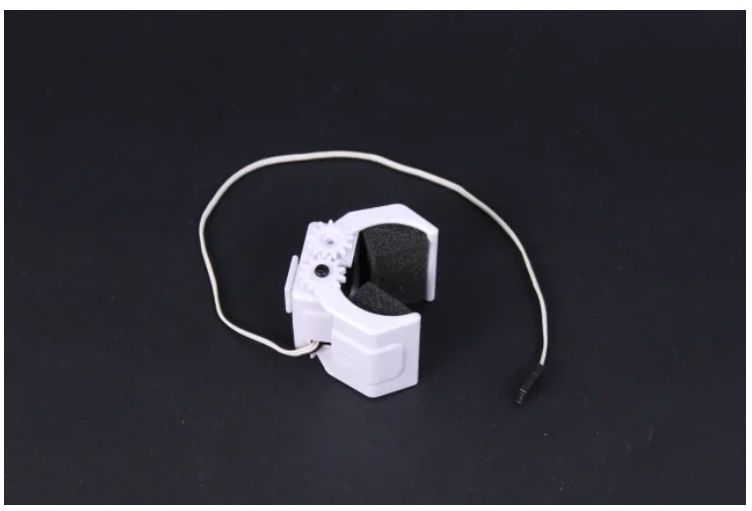

The compact grippers are powered by strong metal geared servo motors with foam gripping cushions, allowing your robot to interact with soft, light objects.

GET A GRIP

EZ-Robot's compact grippers are powered by strong metal geared servo motors, enabling your robot to handle soft, light objects with ease.

SIMPLY CLIP AND PLAY

Customize your robot with EZ-Bits!

• All EZ-Robots include EZ-Clip connections, making innovation and customization as fast as it is fun.
• Simply slide the tab into the slot to establish a secure bond.
• The parts can be separated again by sliding them apart.

Multiple EZ-Bits can be connected together to create arms, legs, or anything else you can dream up!

3D PRINTABLE OPEN SOURCE PARTS

The 3D printable STL files for all EZ-Bits and robot parts are available in the ARC Software.

• Customize and 3D print your own robot parts and designs.
• Share your creations with other EZ-Robot users around the world!

HEAVY DUTY DIGITAL SERVO MOTORS

Inside the HDD servo motors are metal gears and real ball bearings that lift 19 kg/cm!

• These servos are strong enough to allow your robots to walk, move, or lift.
• Engineered to be tough after years of R&D.

Check out our demonstration video to see them in action!

Features

• Operating speed: 0.22±0.01 sec/60° (7.4v)
• Running current: 1400±30mA (7.4v)
• Stall torque: 19±0.20kg·cm (7.4v)
• Stall current: 3000±50mA (7.4v)
• Running life: > 180,000 Turns
• Temperature range: -10°C to +50°C
• Operating voltage: 4.8V to 8.4V
• Dual ball metal bearing
• All metal gears
• Connector wire length: 32cm
• Futaba 3f (25 teeth) for driving spline/shaft
• 6.2mm C1 standard spline (including teeth)
