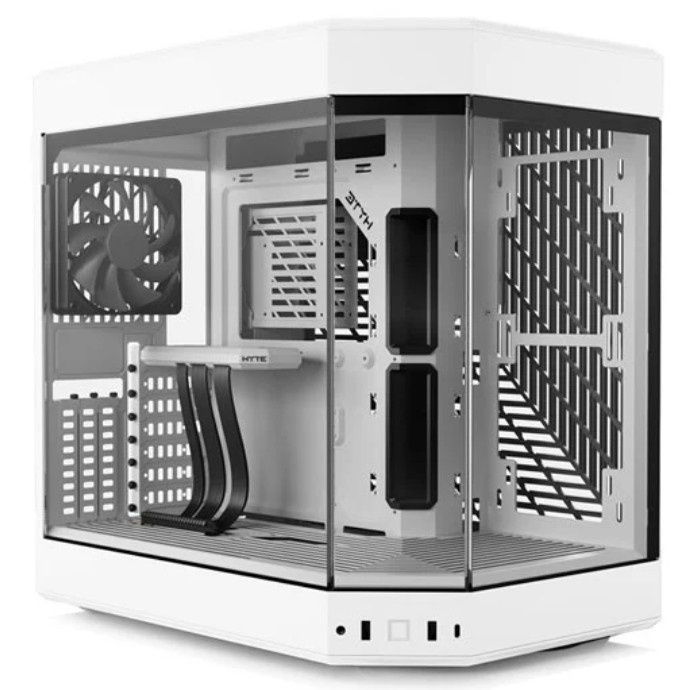

HYTE Y60 Snow White 3-Piece Tempered Glass Dual Chamber Mid-Tower ATX Case

Panoramic Views

No corner pillars. The Y60 features a 3-piece panoramic tempered glass design for the ultimate photo and display potential. See your build the way it was meant to be seen from the left or right side of your desk with a simple turn.

Exclusively Vertical GPU Mounted

Why would you want to see your graphics card any other way?

Included PCIE 4.0 Riser Cable

A protective riser cable canopy integrates beautifully into the case, allowing for half-height PCIE cards behind the throne of the vertical graphics card. The protective shroud is the first of its kind, made specifically for the Y60.

Antechamber Construction

Segment cables from thermal components and turn your PC into a work of art.

Cold Floor Cooling

Eliminate hot spots with sweeping lateral vents from fans tastefully tucked into the basement of the Y60.

Included Fans

The three pre-installed Flow FE12 fans with fluid-dynamic bearings provide whisper-quiet operation.

Features

• 3-Piece panoramic glass with 3-times more satisfying plastic wrap removal.
• We know how much you just spent on that GPU, so we threw in the riser cable.
• Cold floor cooling keeps thermals lower than a partly cloudy day with a light breeze and you without your jacket.
• No corner pillars. The Y60 features a 3-piece panoramic tempered glass design for the ultimate photo and display potential. See your build the way it was meant to be seen from the left or right side of your desk with a simple turn.
• Vertical GPU mount.
• A protective riser cable canopy integrates beautifully into the case, allowing for half-height PCIE cards behind the throne of the vertical graphics card. The protective shroud is the first of its kind, made specifically for the Y60.
• Segment cables from thermal components and turn your PC into a work of art.
• Eliminate hot spots with sweeping lateral vents from fans tastefully tucked into the basement of the Y60.
• The three pre-installed Flow FE12 fans with fluid-dynamic bearings provide whisper-quiet operation.

Specifications

Case Edition:
Y60 Snow White

Case Form Factor:
Mid Tower

Motherboard Form Factor:

• ATX
• E-ATX
• MicroATX
• Mini-ITX

Back Connect Compatible:
No

I/O, Bays & Expansion

Front/Side/Top Panel I/O:

• 1 x Headphone/Mic Combo
• 1 x Power Button with LED
• 2 x USB 3.0
• 1 x USB 3.2 Gen2 Type-C

Drive Bays:

• 2 x 3.5"
• 4 x 2.5" Internal

Standard Expansion Slots:
6 half-height

Vertical Expansion Slots:
3

Fans & Filters

Fan Bays:

• 4 x 120/140mm
• 4 x 120mm

Fans Included:

• 3 x 120mm

Dust Filters:

• Bottom
• Side
• Top

Liquid Cooling Support

Top Radiator Compatibility:
1 x 120/240/360mm

Rear Radiator Compatibility:
1 x 120mm

Side Radiator Compatibility:
1 x 120/140/240/280mm

Clearances

Max CPU Cooler Height:
160 mm

Max GPU Card Length:
375 mm

Side Panels

Window/s:
Yes

Window Configuration:

• 1 x Front
• 1 x Main Side

Window Construction:
Tempered Glass (Tinted)

LED Lighting Functionality

LED Lighting:
No

Power Supply Compatibility

PSU Included:
No

PSU Support:
ATX

PSU Mounting Location:
Bottom Mount, Rear

Max PSU Length:
235 mm

Chassis Physical Specifications

Colour:
White

Chassis Construction Materials:
Steel / ABS Plastic / Tempered Glass

Dimensions:
285 x 462 x 456 (WxHxD mm)

Weight:
9.6 kg (Approx)
